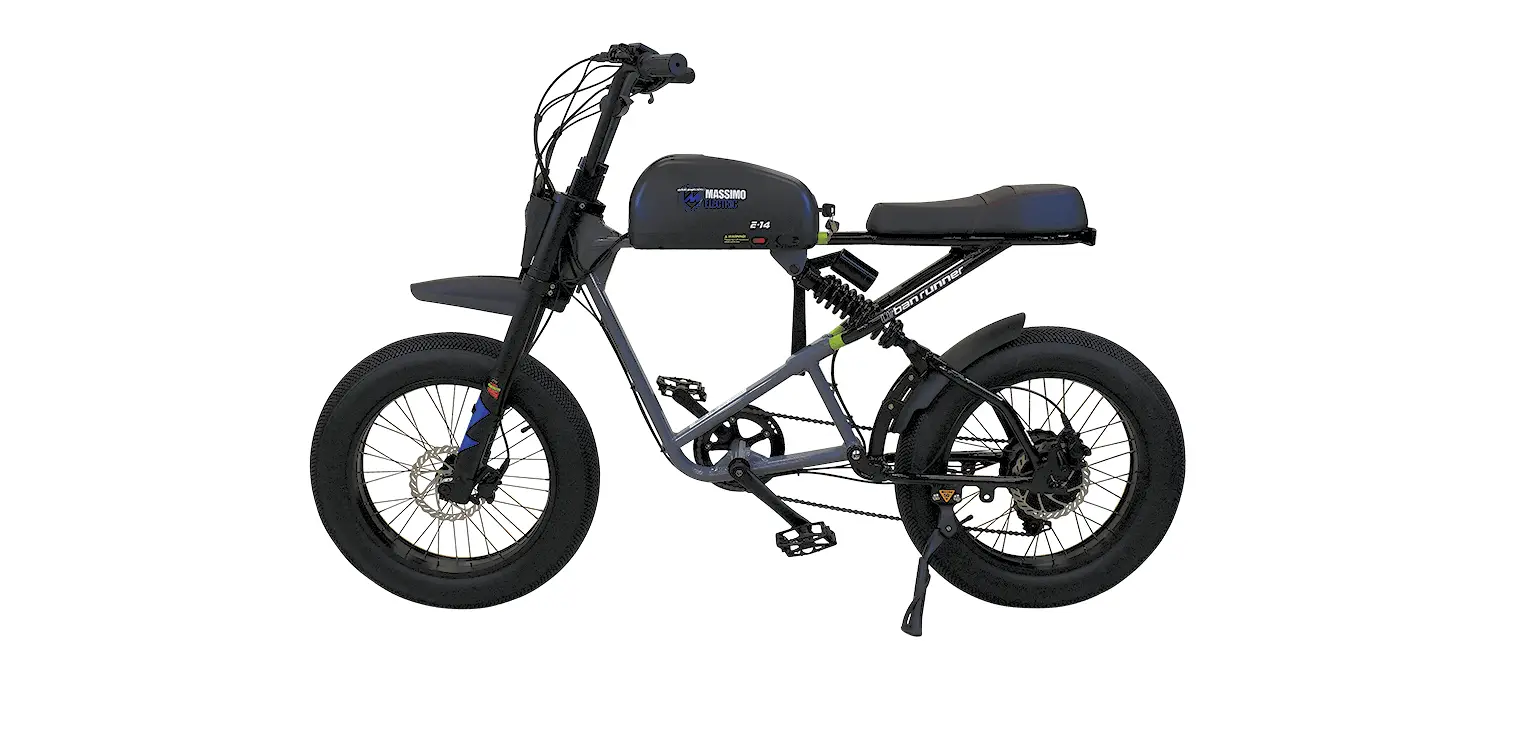

Massimo E420750711 Urban Runner Electric Bike Instruction Manual

Urban Runner Electric Bike
Instruction Manual

PLEASE READ THIS MANUAL THOROUGHLY

INSTRUCTIONS

In this manual, you II be given instructions on safe operation and safe product usage that all riders need to follow.

CARE FOR LIFE

Always wear a properly fitted helmet and safety gear while riding.

Correct Fitting:	Incorrect Fitting:
Make sure your helmet is properly secured and strapped at all times while riding.	Ensure your forehead is not exposed and vulnerable to injury.

CAUTION
In this manual, the word CAUTION indicates a potentially dangerous situation, and if not avoided could cause potential injury.
WARNING
In this manual, the word WARNING indicates a potentially dangerous situation, and if not avoided could cause serious injury or death.
STORAGE NOTE
Avoid prolonged exposure to sunlight or rain. When not in use, store in doors.

INTRODUCTION

This manual is designed to give you the information needed for proper and safe use. For beginners please ride in open areas without obstacles. Please read this manual thoroughly before riding your bike.
Before starting the electric bike, Please make sure the battery power is on.

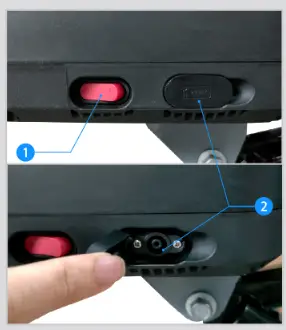

1. Please turn the red power switch to -r before use; After use, please pull back to “0” and turn off the power in time.
2. Charging Port
   Please turn on the red power switch before charging.
   Open the protective cover for charging.
   After charging, close the protective cover.

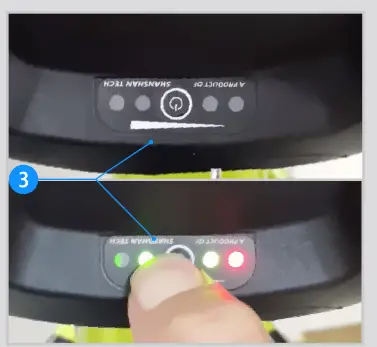

3. Press the battery button to check the remaining power.
   Power is full
   low power recommended charging
   Insufficient power must charge

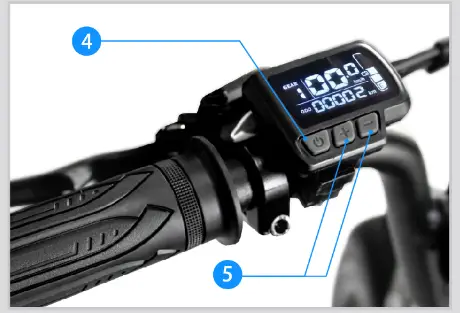

4. Press the button Ef for 2s to Start or stop the electric bike.
5. Press the button /12 to + upshift(1-5 gear). Press the button - to downshift (5-1 gear).
   INTRODUCTION

6. Please turn on the lights while riding at night
   • Press the button +for 2s to turn on the headlights and rear brake tail lights.
   •  Press the button – for 2s again to turn off the headlights and rear brake tail lights.
   Mechanical gear shift

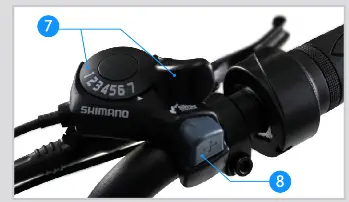

7. The lowest gear is gear 7. Turn the gear shift dial to the desired gears while riding.
8. You can also utilize the gear Shift Button to change gears.
   Throttle

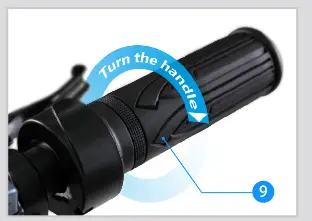

9. Turn the throttle towards you while riding to accelerate the bike.
   Hydraulic lockout

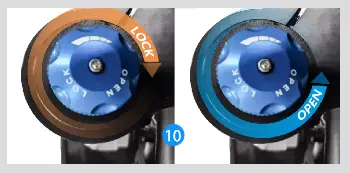

10. Used to turn on and off the front shock function.

WARNING!

• Please do not ride this bike in poor visibility, do not use it for doing stunts or jumps, and do not carry passengers.
  It is forbidden to  refit at will
• Use only the supplied charger with this device.
  Put repair  in a proinstcnii repair shop
• Use only the supplied battery pack with this electric bike(48V,10Ah).
• Please do not disassemble or refit the vehicle at will.
• The rider should be at least 15 years old.
• The maximum speed shall not exceed 25km/h.

E – 14A00 Electric bike Spec

NOTES

Driving

• Please wear bright, reflective clothing when riding at dusk.
• Please do not perform stunts or jumps or carry passengers.

Battery

• Please do not operate while the battery is charging.
• If the device will not be used for a long period of time, be sure to fully charge the battery at least once a month for proper maintenance.
• For best results deplete the battery fully prior to charging.

Please stop use under these conditions

• Any damage occurs to the bike. The battery releases an abnormal odor or heat.

Proper storage

• Keep the battery out of reach of children and pets. Misuse can lead to serious injury or death.
