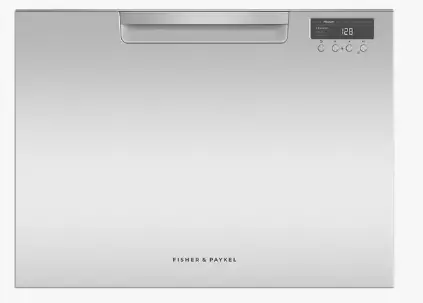

DD24SCTX9N Single DishDrawer
Dishwasher, Tall, Sanitize
User Guide
Contemporary Stainless Steel
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, for loading dishes with less bending.
- Six wash programs, as well as additional Quick wash, Sanitize, and Extra Dry options
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading.
- Flexible racking can be folded down to fit bigger dishes

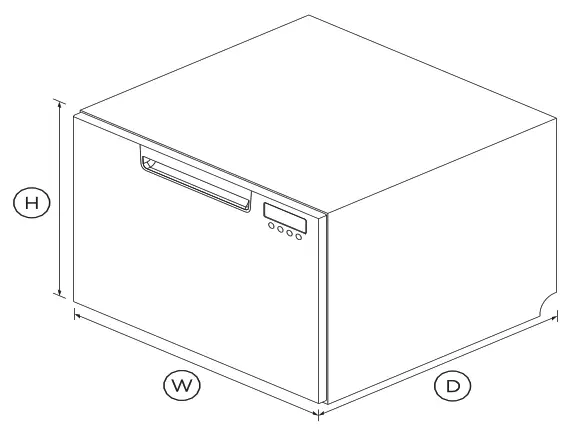

DIMENSIONS
| Height | 17 7/8″ |
| Width | 23 9/16″ |
| Depth | 22 9/16″ |
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. flexible racking allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitize, and Extra Dry
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Complementary design
DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling, and quality materials.
SPECIFICATIONS
Accessories
Knife clip and multipurpose
Capacity and loading
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
Consumption
| Energy rating | Energy star |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Rinse aid indicator light | • |
QUICK REFERENCE GUIDE > DD24SCTX9 N
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 44dBA |
Power requirements
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply voltage | 120V |
Product dimensions
| Depth | 22 9/16″ |
| Height | 17 7/8″ |
| Width | 23 9/16″ |
Safety and compliance
| ADA compliant | • |
Warranty
| Parts and labor | Limited 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
Wash Programs
| Delicate | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Normal eco | • |
| Rinse | • |
| SKU | 81606 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
