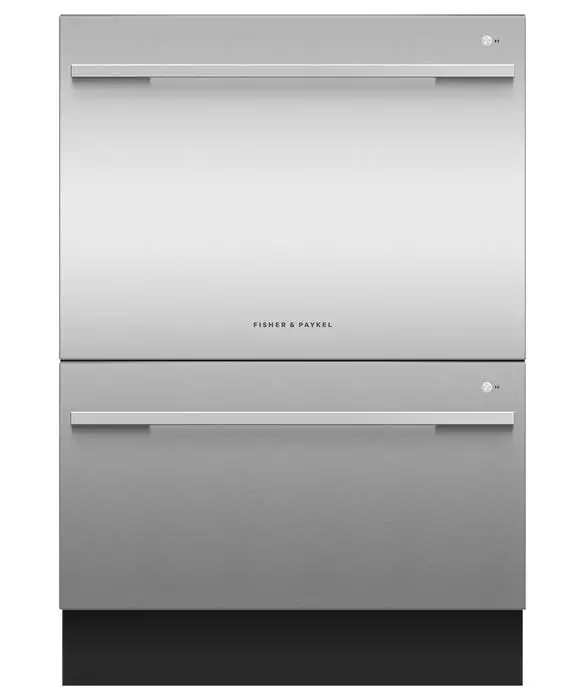

FISHER PAYKEL DD24DDFTX9 N 24 Inch Fully-Integrated Double DishDrawer
Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Flexible racking can be folded down to fit bigger dishes

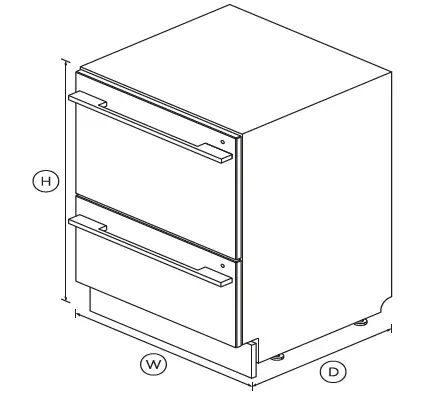

DIMENSIONS
- Height: 34 – 36 3/8″
- Width: 23 9/16″
- Depth: 22 9/16″
FEATURES & BENEFITS
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Independent wash
With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
True half load
Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can operate simultaneously to accommodate a variety of loads.
Complementary Design
DishDrawer™ Dishwashers are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials for a stylish finish in your kitchen.
Quick, Sanitize and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
Accessories
| Contemporary round handle | Part number 81671 |
| Contemporary square fine | Part number 82104 |
| Contemporary square handle | Part number 81908 |
| Cutlery basket | • |
| Kickstrip | Included |
| Knife clip and multipurpose | • |
Capacity and loading
| Accommodates round plates | 12.25″ (top) 11″ (bottom) |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
Consumption
| Energy rating | Energy star |
| Energy usage | 263 kWh/year |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Rinse aid indicator light | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 44dBA |
Power requirements
- Amperage: 9.6A
- Electric circuit: 3 wire
- Rated current: 15A
- Supply frequency: 60Hz
- Supply voltage: 120V
Product dimensions
| Depth | 22 9/16″ |
| Height | 34 – 36 3/8″ |
| Width | 23 9/16″ |
Warranty
| Parts and labor | Limited 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
| Wash modifiers | 3 |
Wash Programs
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
Water connection
- Inlet water temperature: Max 140°F
- Supplied hose to suit 3/8″
- SKU: 81222
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
- Quick Start Guide
- User Guide
- Installation Guide
- Data Sheet Double DishDrawer
