LT-02010 Extinguisher Backpack
User Manual
USER’ MANUAL
VALLFIREST
EXTINGUISHER BACKPACK
LT-02010 Extinguisher Backpack

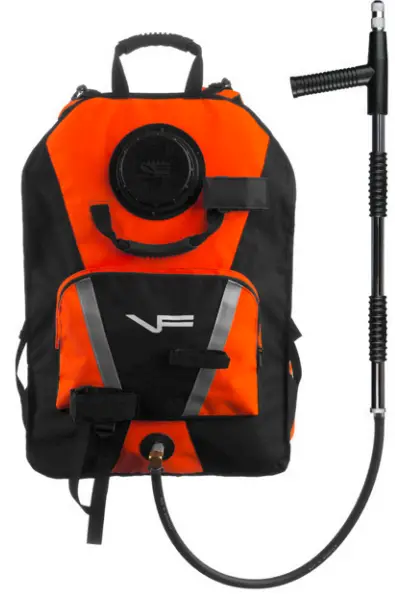

COMPONENTS

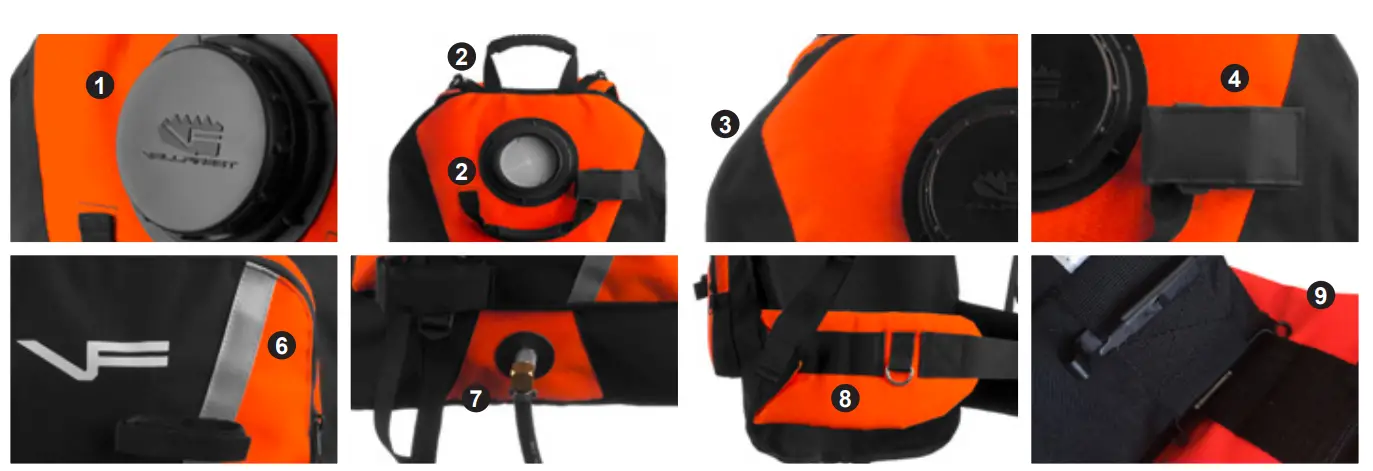

- Wide mouth fill port with built in plastic filter screen that can’t fall into bladder
- TWO sturdy handles to make filling easier
- Padded and contoured shoulder straps with daisy chain for pouches
- Shoulder straps have Velcro to secure the hand pump or other accessories
- Replaceable, low cost internal water bladder
- Carrying pouch for food, fittings or other item
- Multiple securing straps for a pulaski, shovel or other tools
- A padded waist belt to get some of the load off your shoulders
- Waist belt can accommodate a fire shelter or other pouches

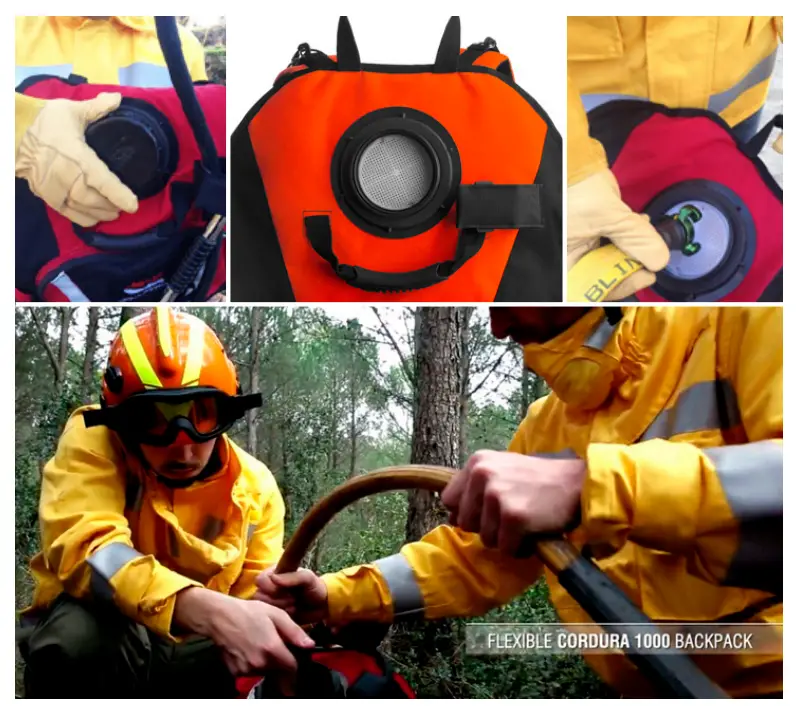

Filling tank

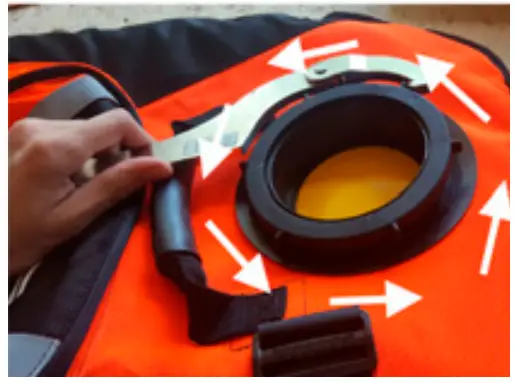

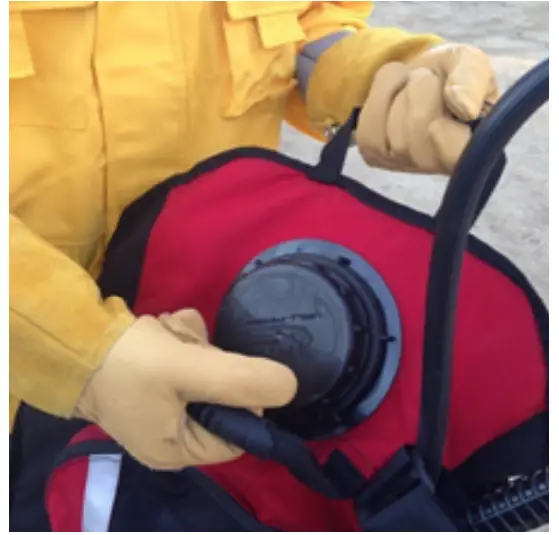

2.1 Hold backpack by both handles to keep cap horizontal.

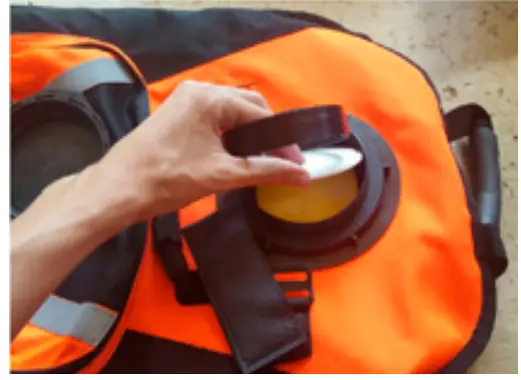

2.2 Unscrew the cap without remove filter. Filter ensure tank not get damaged by particles.
2.3 Fill the water tank with a maximum of 5.4 gallons.
2.4 Find a collegue to easyer filling.
Adjustments

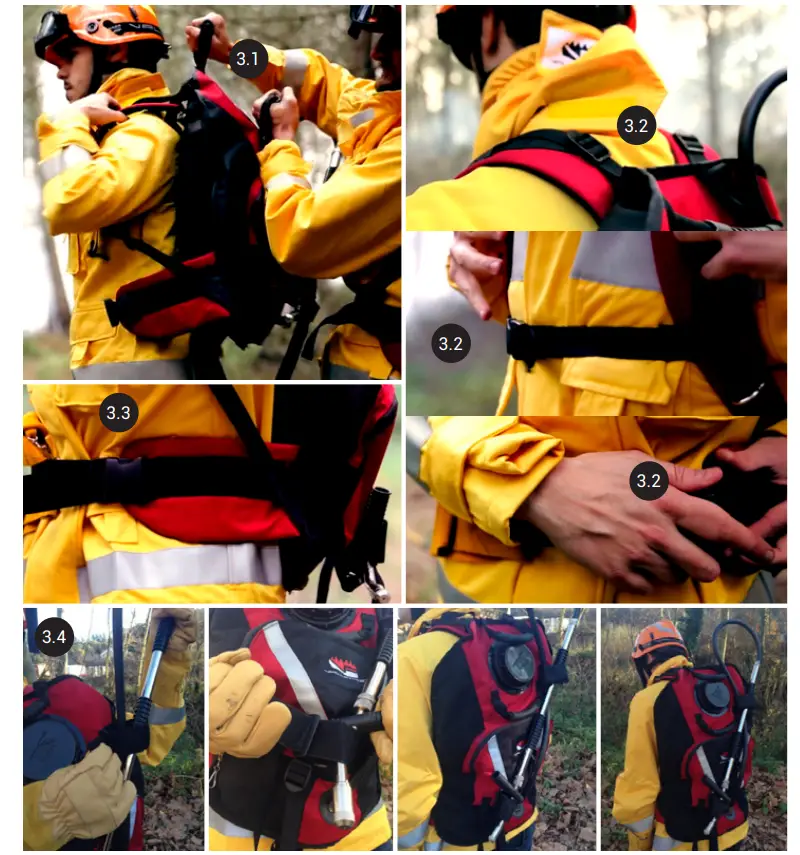

3.1 Two sturdy handles to make filling easier
3.2 Waist and shoulders adjustments
3.3 Padded waist belt to get some of the load off your shoulders.
3.4 Shoulder straps have Velcro to secure the hand pump or other accessories.
Hand Pumps
Match with:

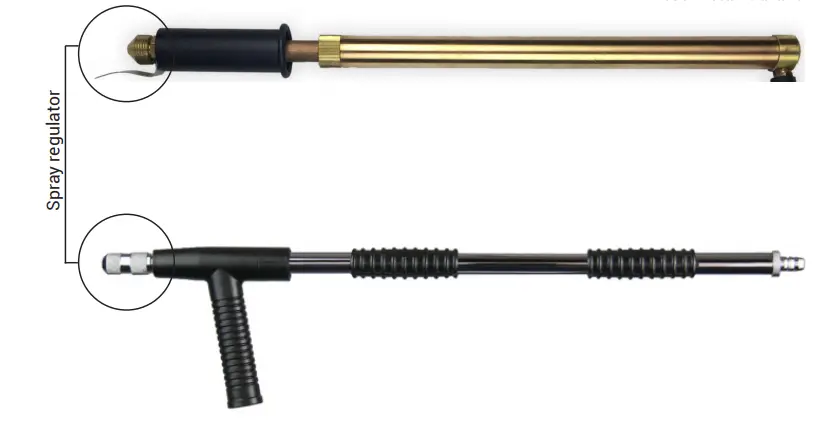

Hand pump simple effect and empty/spray adjustments
Press metallic blade
Hand pump double effect and empty/spray adjustments
Rotate spray regulator
MAINTENANCE
- When using retardant products, once used must clarify the inner bag with clean water and empty using pump.
- After using keep always the Knapsack Ergonomic Backpack Pump Carrier VALLFIREST empty of water.
- Change the tank or replace the elements when necessary for proper operation.*
Replace tank

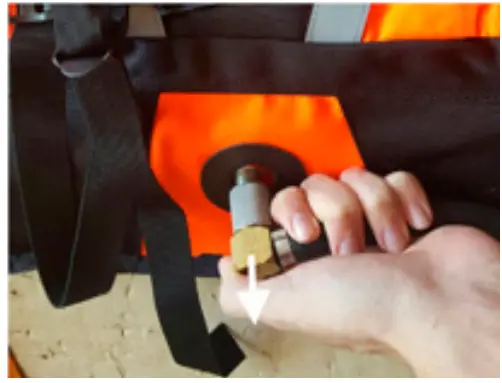

- Unplug the 360 coupling.
- Remove the plug and unscrew the plastic nut.

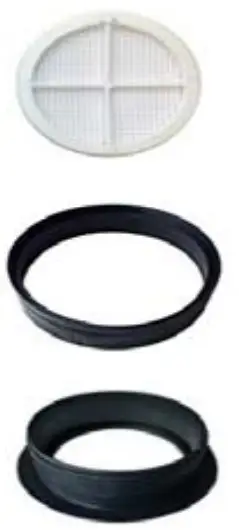

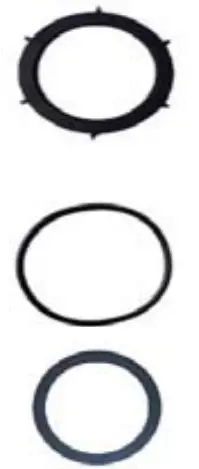

- Remove interior ring and filter.

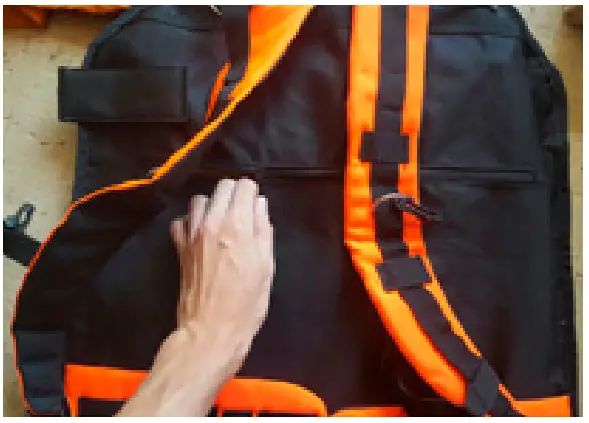

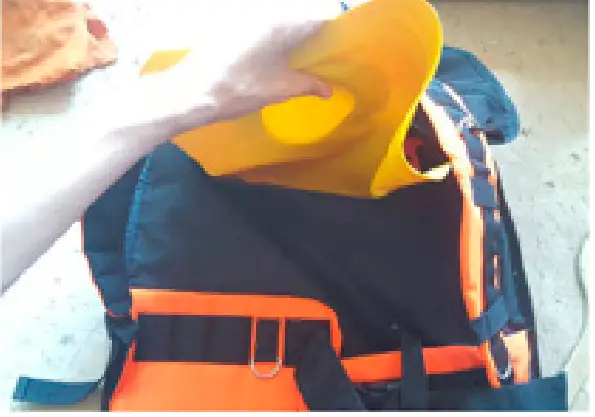

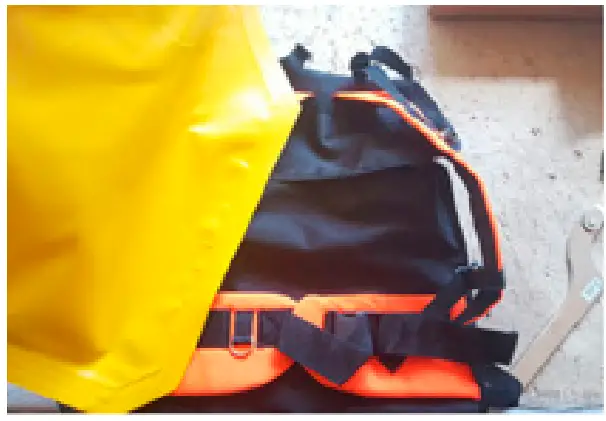

- Open back zipper.
- Remove the water tank through the zipper.
- Introduce new tank and do the steps in reverse order.

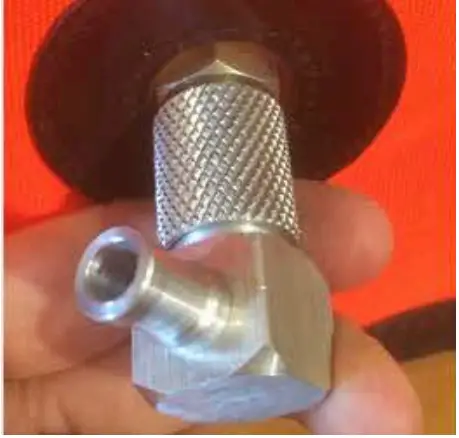

360 Coupling replacement

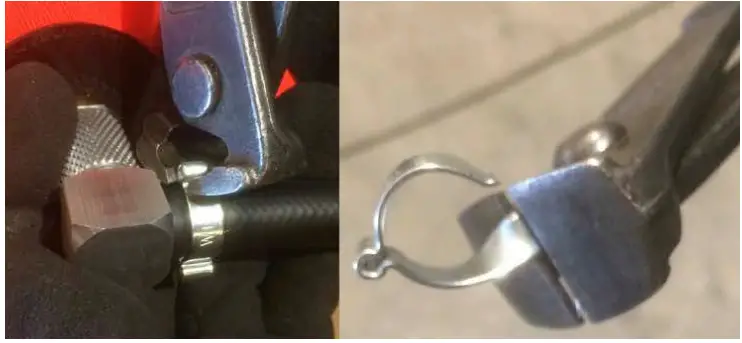

A. Breaking ears clip
Unscrew coupling after breaking clip

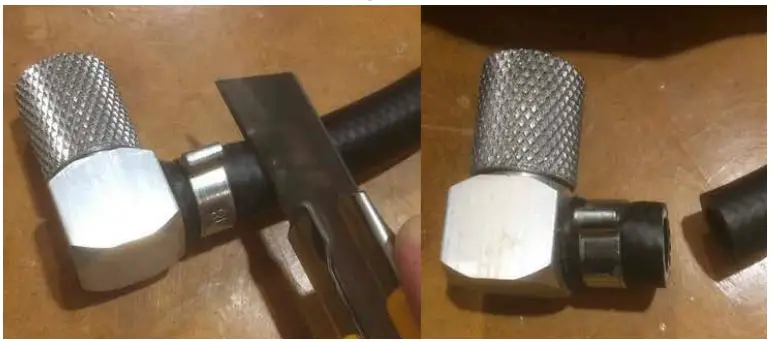

B. Cutting 2 cm hose
Unscrew coupling before cutting hose

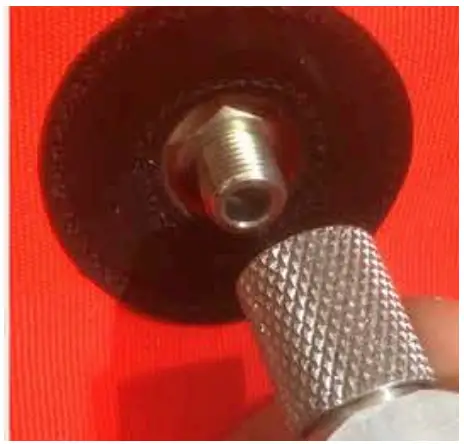

- Unscrew coupling.
- Screw on new coupling.
- Pass hose through the ears clip (15/18).

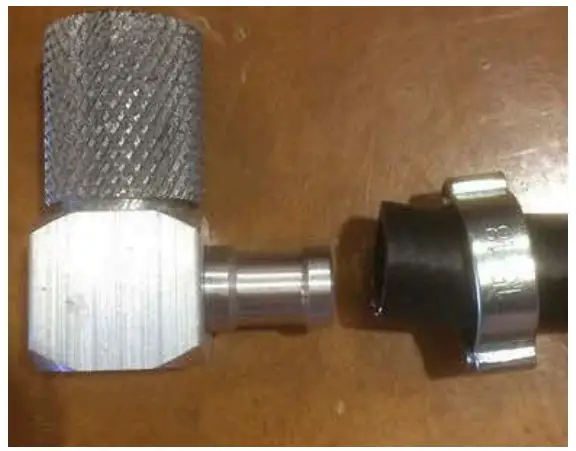

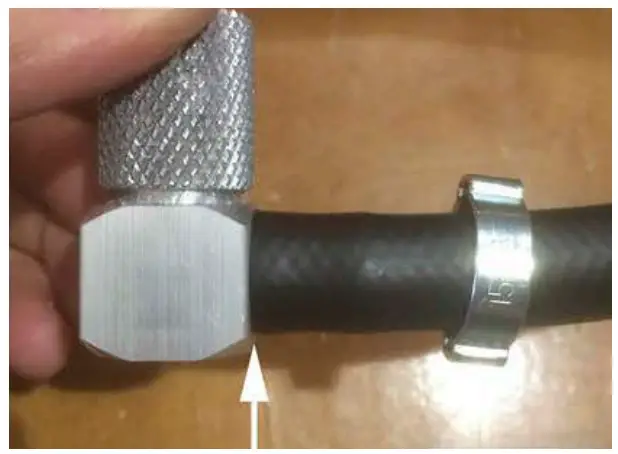

- Fit hose over hose coupling get hose contact the coupling wall.

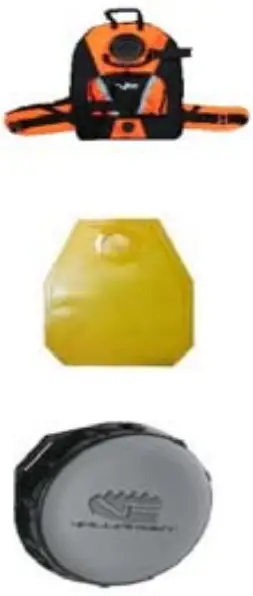

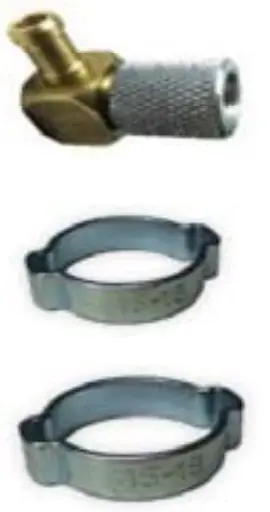

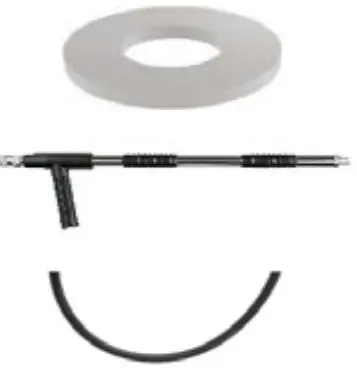

SPARE PARTS
| BVB0101‐P010A |  | 1 | VF Knapsack CORDURA BAG |
| BVB0101‐P020A | 1 | VF Knapsack YELLOW BLADDER (TANK) | |
| BVB0101‐P040A | 1 | VF Knapsack STOPPER CAP | |
| BVB0101‐P050A |  | 1 | VF Knapsack FILTER |
| BVB0101‐P060A | 1 | VF Knapsack SPACER | |
| BVB0101‐P070A | 1 | VF Knapsack SCREWED BUSHING | |
| BVB0101‐P080A |  | 1 | VF Knapsack STOPPER SCREW NUT |
| BVB0101‐P090A | 1 | VF Knapsack O‐RING STOPPER | |
| BVB0101‐P100A | 2 | VF Knapsack RUBBER FLAT SEAL | |
| BVB0101‐P110A |  | 1 | VF Knapsack PLASTIC FLAT SEAL |

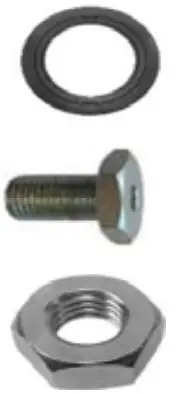

| ZEZ0901‐00001 | 1 | BUSHING BOLT 1/4″x26 | |
| ZEZ0901‐00002 | 1 | BUSHING NUT 1/4″ | |
| ZEZ0901‐00003 |  | 2 | BUSHING WASHER 30×13.5×2 |
| BVB0101‐P030A | 1 | VF Double Effect Hand Pump | |
| BVB0101‐P120A | 1 | VF Knapsack 1M HOSE | |
| BVB0101‐P130A |  | 1 | VF Knapsack 360 COUPLING |
| ZEZ0801‐00001 | 1 | TWO EAR CLIP 13/15 | |
| ZEZ0801‐00002 | 1 | TWO EAR CLIP 15/28 |
