Glass Frosters Installation & Operation Manual

JOB
AREA
ITEM NO.
MODEL NO.

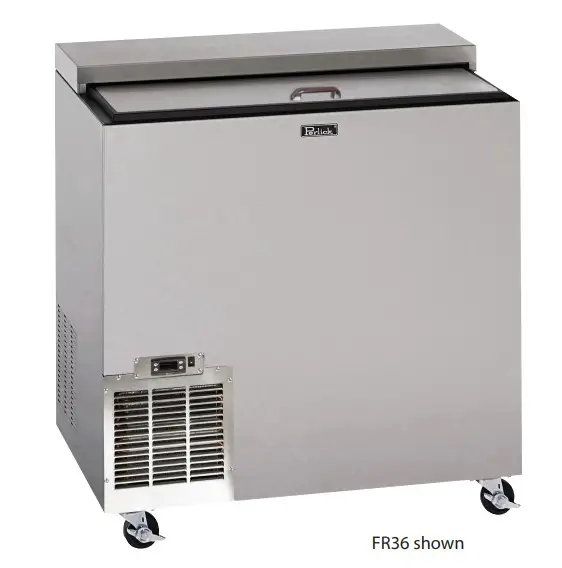

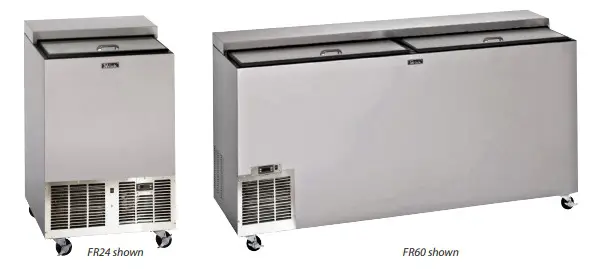

FR24 SERIES
FR36 SERIES
FR48 SERIES
FR60 SERIES

MODEL NUMBERS FR24FR36FR48FR60


EXTERIOR CABINET DIMENSIONS

Length – in. (mm)24 (610)36 (914)48 (1219)60 (1524)
Depth – in. (mm)24 (610)24 (610)24 (610)24 (610)
Height – in. (mm)34-1/8 (866)34-1/8 (866)34-1/8 (866)34-1/8 (866)
INERNAL NET VOLUME – cubic ft. (liters)4.2 (118)8.6 (242)12.5 (353)16.3 (462)
PLATE CAPACITY *135 Plates215 Plates300 Plates400 Plates
GLASS CAPACITY *90 Glasses142 Glasses214 Glasses286 Glasses
W/ OPTIONAL THIRD SHELFN/A172 Glasses273 Glasses363 Glasses
SHIPPING WEIGHT LBS. (KG.)190 (86)245 (111)300 (136)353 (160)
CABINET CONSTRUCTION (INTERIOR)All models have stainless steel walls and floor.


CABINET CONSTRUCTION (EXTERIOR)

Choice of black, stainless steel and all stainless.

Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized. Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized. All Stainless Option: Front, ends, back and bottom are all stainless steel.

DOORS AND HARDWARESliding style open. Stainless steel top and bottom panss. Die cast handle
PLUMBINGNo drain required. Condensate evaporates automatically.
INSULATION2 inch foamed-in-place, environmentally friendly Ecomate® polyurethane insulation.
VENTILATION2’ model is front vented, all other models require 2” clearance from wall on either left end or back of cabinet for proper air flow.


TEMPERATURE SPECIFICATIONS

Default Temperature Setpoint: Standard Temp (RT) Models – °F [°C]0 [-17.75]
Adjustable Setpoint Range: Standard Temp (RT) Models – °F [°C](-) 10 to (+)10 [-23.3 to -12.2]








ELECTRICAL SPECIFICATIONS

Supply120 VAC/60 Hz/1 Ph
Running Load Amps3.83.83.83.8
Power Cord6-foot length with NEMA 5-15 plug.
ThermostatNSF Listed electronic control.
Defrost TypeAutomatically defrosts electrically every 4 hrs for approximatly 20 minutes
Manual DefrostPush button defrost system, manually initiated at the end of each day, Automatically terminates after six hours.






REFRIGERATION SPECIFICATIONS

Condensing UnitHermetic condensing unit pulls out for service and cleaning.
Expansion DeviceCapillary Tube
RefrigerantR290
Refrigerant Charge (g)80100100115
Compressor H.P.1/41/41/41/4
Total Heat of Rejection At 75°F ambient (BTU/h)2980298029802980


OPTIONAL ACCESSORIES

Flat shelving • Divider shelving • Roller basket shelving Set of 4 Adjustable legs (Multiple sizes available)

Set of 4 Casters w/ brakes (Multiple sizes available) • 2’, 3’, 4’,and 5’ Bottle Rail (field Installed)

GENERAL INFORMATION

Introduction

This manual has been prepared to assist you in the installation of your Glass Froster and to acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products provide the highest level of customer satisfaction. If service is required, call Perlick at 1-800-777-7267 or your dealer who can provide you with a list of qualified service agents. For your own protection, never return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure you of our continuing interest in your

Warranty

To register your product, visit our web site at www.perlick.com. Click on “Commercial”, then “Service”. Click on the link “Warranty Registration Form”. You must complete and submit this form or the installation date will revert back to the ship date.
Please record the purchase date and the dealer’s name, address and telephone number below.
Model Number:   _______________________
Serial Number:
Purchase Date:     _______________________
Dealer Name & Address
satisfaction.
Phone Number

SAFETY

PLEASE READ all instructions completely before attempting to install or operate the unit.
Take particular note of the DANGER, WARNING an CAUTION information in the manual.
The information is important for the safe and efficient installation, operation and care of your Perlick unit.

DANGER  Indicates a hazard that WILL result in serious injury or death if precautions are not followed.
WARNING Indicates a hazard MAY cause serious injury or death if precautions are not followed.
CAUTION Indicates a hazard where minor injury or product damage may occur if precautions are not followed.
NOTICE Indicates that property damage may occur if warnings or instructions are not followed.

IMPORTANT!

Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualified technician and conform to all applicable state and local codes.

PREPARING THE CABINET – GLASS FROSTERS

Refrigerant

All models covered in this user manual are manufactured using refrigerant R290 (Propane). R290 is a hydrocarbon. This refrigerant is flammable and is only allowed for use in appliances which fulfill the requirements of UL 471 (To cover potential risk originated from the use of flammable refrigerants). Consequently, R290 is only allowed to be used in refrigerating appliances which are designed for this refrigerant and fulfill the above-mentioned standard.

  • R290 is heavier than The concentration will always be highest at floor level.
  • The explosion limits are as follows:
    • Lower Limit: 7% by vol. (37 g/m3)
    • Upper Limit: 5% by vol. (177 g/m3)
    • Ignition Temperature: 470 °C

DANGER Take caution when handling, moving and using the product to avoid damaging the refrigerant tubing or increasing the risk of a leak.
WARNING All service work shall be performed by factory authorized service personnel and all component parts shall be replaced with like components to minimize the risk of possible v CAUTION ignition due to incorrect parts or improper service. If service is necessary, repair work must be performed by a Perlick authorized servicer. Work done by unqualified individuals could potentially be dangerous and will void the warranty.

NOTICE  Uncrating and Inspection Remove all crating material. Carefully inspect cabinet for hidden damage. If damage is discovered, file your claim immediately with the transport company. Perlick is not responsible for damage in transit.

This product contains blown foam insulation using blowing agent R-611 (Methyl Formate). The foam in this product does not contain HFC’s, CFC’s, or HCFC’s.

Plumbing

No plumbing connections are required. Condensate from the cooling coil automatically evaporated through a condensate pan located in the condensing unit section.

Electrical

CAUTION The cabinet must be connected to a separately fused power source (see Electrical Specification Plate affixed to unit) in accordance with National and Local electrical codes.
Do not attempt to operate the equipment on any other power source than that listed on the
Electrical Specification Plate.

 Adjustable Partitions & Shelving

Perlick Glass Frosters may be provided with adjustable partitions and shelving which will accommodate various bottle sizes.

  • W h e n  p l a c i n g   g l a s s e s   i n chiller make sure  to  ensure  proper air flow between
  • When loading product into cabinet, care must be taken to avoid blocking airflow into and out of the Maintain at least 2” of clearance on evaporator air intake and exhaust for proper operation.

Installing Casters or Legs (optional)

Attach casters or legs to the cabinet bottom in holes provided. Use the supplied 1/4” – 20 hex head self-tapping machine screws. If unit is tipped on its back for an extended period of time, wait 24 hours after unit is uprighted to plug the unit in.

Placing the Cabinet

To assure maximum performance, fresh air must be allowed to circulate through the machinery compartment. It is important to allow at least two inched of clearance at the back or left end of the cabinet. Do not place anything in front of the cabinet that would obstruct air flow at these grilles. Do not place the unit in an unventilated small room.
CAUTION Removing the factory installed back clearance spacers without providing proper left side grill clearance for compressor air flow will void the warranty.

HOW TO OPERATE – GLASS FROSTERS

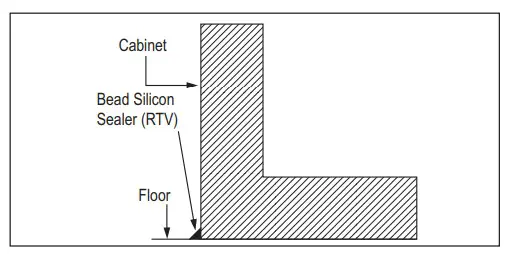

Cabinet should be leveled. For sanitation purposes, it may be necessary to seal the base of the cabinet to the floor. This can be accomplished by laying a bead of silicone sealant along the base of the cabinet as shown by the figure below (figure 1).

Temperature Control

A digital temperature control is located on the front face of the Glass Froster, above the condensing unit housing. It is factory set at approximately 0°F for standard refrigeration.

Digital Temperature Control

To display the Set point values press the  key when the ‘SET’ label is displayed. The Set point value appears on the display. To change the Set point value, press the  and  keys within 15 seconds. Press  to confirm the modification.
The condenser fan motor turns off and on with compressor. The evaporator fan motor runs continuously.

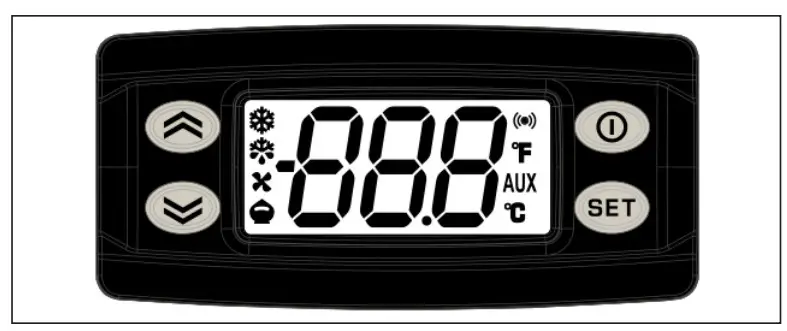

Figure 2: Digital Temperature Controller

Defrosting The System

This system consists of a six-hour, as well as a four hour defrost cycle. The six hour defrost cycle is manually activated and automatically terminated, while the four hour cycle is completely automatic.

The Six Hour Manual Defrost

The six hour manual defrost shuts off the power to the condensing unit, door frame heater, evaporator heater, and the automatic four hour defrost timer, while it supplies power to the evaporator fan. To activate the six hour defrost system, depress (and hold for 3 seconds) the defrost switch located next to the controller above the front grill of the cabinet. When the manual defrost cycle initiates a fan icon will appear on the controller display as well as “def” (figure 3a). When the defrost cycle ends, the cabinet resumes normal operation. To cancel a manual defrost cycle, momentarily turn off the electricity to the machine (unplug unit).

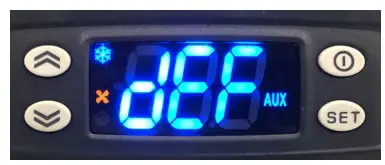

                                 Figure 3a

The Four Hour Defrost Timer

This automatic defrost ensures that frost will not buildup on the evaporator coil. Every four hours it shuts down the condensing unit, box frame heater, evaporator fan and supplies power to the defrost element clamped to the bottom of the evaporator. When automatic defrost is initiated the controller will display a melting snowflake as well as “def” for the duration of the defrost (figure 3b).


                               Figure 3b

HOW TO OPERATE – GLASS FROSTERS

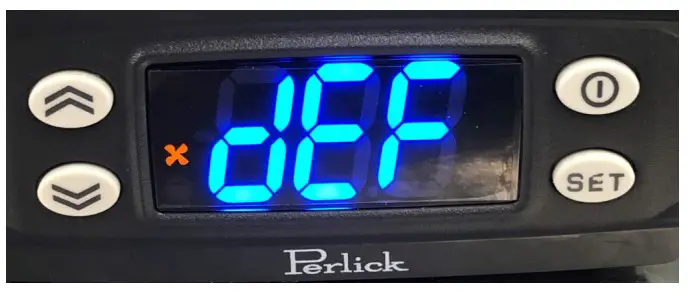

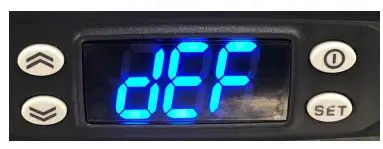

To manually initiate the automatic defrost cycle press and hold either the up or down arrows. The defrost cycle lasts for approximately 20 minutes followed by 2 minutes of drip time (where the evaporator fan shuts off to allow water to drip off the coil and drain before it can refreeze). (figure 3c).

                           Figure 3c

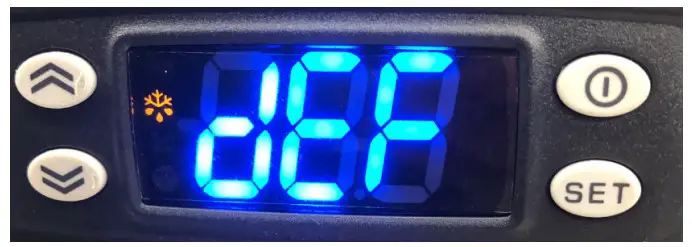

When the cycle is complete the unit will resume cooling operation shown on the controller with a snowflake and fan icon, however “def” will remain on the display screen until the next time the set point value is reached (figure 3d). During normal operation it is recommended that the doors are not left open to prevent excessive frost buildup on the coil.


                         Figure 3d

Cleaning the Condenser

DANGER Flammable Refrigerant. Risk of fire or explosion. Do not damage refrigeration tubes.
The condenser (located behind the front grille) should be inspected every 30 days, and cleaned, if Failure to keep the condenser clean will cause a loss in condensing unit efficiency, or compressor failure.

Cleaning the Doors

  • Doors should be periodically removed from the cabinet and inspected for a buildup of foreign materials, such as syrups, beer, Buildups on the underside of the doors, along with the cabinet breaker strips on which they ride, will cause them to bind, and therefore, not function as designed. If dirty, these surfaces should be cleaned with a mild detergent and water and then coated with an NSF certified silicone lubricating material.

To remove doors:

  • With door closed, lift it upward by its handle and slide forward until doors clears the cabinet top. Use the reverse procedure to reinstall the doors.

Cleaning the Cabinets

  • Use a damp cloth with a mild detergent and water to clean the inside and outside of the Dry thoroughly. Do not allow cleaning agents or large amounts of water to go down the drain. Use an acceptable stainless steel polish to clean all stainless steel surfaces. Never use steel wool or scouring pads to clean stainless steel.

Avoiding Stainless Steel Corrosion

Corrosion can be prevented by following product cautions, cleaning instructions and avoiding use of certain chemicals or objects which will cause stainless steel corrosion.

STAINLESS STEEL ENEMY

  • Steel wool or steel scouring pads
  • Cherry/Orange/Olive juice
  • Chlorine Bleach
  • Sharp Objects

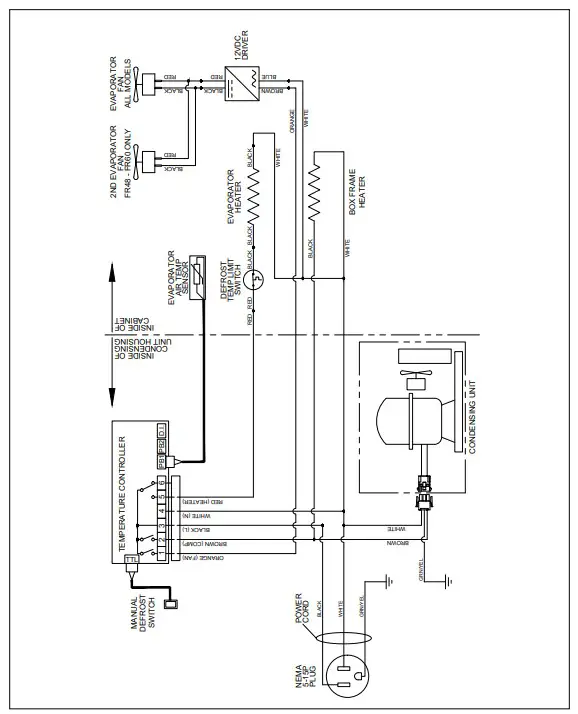

WIRING DIAGRAM – GLASS FROSTERS

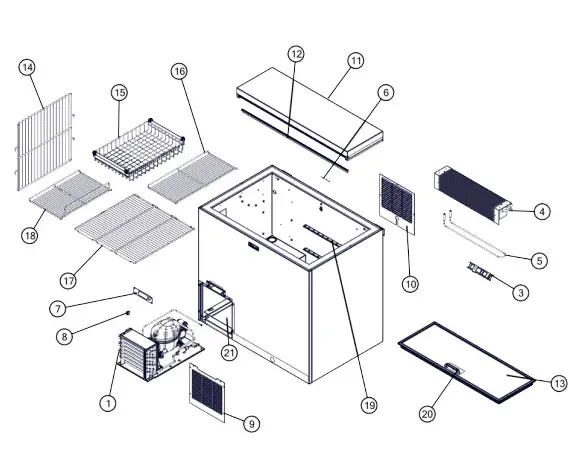

REPLACEMENT PARTS – GLASS FROSTERS

REPLACEMENT PARTS – GLASS FROSTERS

MODEL NOS. FR24 RT – 3FR36 RT – 3FR48 RT – 3FR60 RT – 3
ItemDescriptionPart Numbers






1

Complete condensing unit1018400101840010184001018400
Replacement compressor, R290C22999CMP11C22999CMP11C22999CMP11C22999CMP11
Condensing unit fan motor assy.1013047101304710130471013047
Condensing unit filter drierC22999DAH01C22999DAH01C22999DAH01C22999DAH01
Condensing units start componentsC22999STCP10C22999STCP10C22999STCP10C22999STCP10
3Evaporator fan71386713867138671386
4Evaporator coil64785-1EPC17511-1EPC17511-1EPC17511-2EP
5Defrost heaterC25655-165045-165045-161900
6Temperature sensor1005668100566810065841006584
7Controller Bracket1024461-11024228-21024428-21024228-2
8Manual Defrost Switch1026317102631710263171026317
9Front grille1024465-11024230-11024230-11024230-1
10Rear grille/panel66498-165662-365662-365662-3
11Top assemblyRT-SL2RT-SL2RT-SL2RT-SL2
12Top wiper gasket63671-2463671-3663671-4863671-60
13Door assemblyRD-SL2RD-SL2RD-SL2RD-SL2
14Vertical partition65503664416644166441
15Roller basketN/A66442-166442-166442-1
16Wide shelfN/A64811-164811-164811-1


17

Narrow shelf64809-164809-164809-164809-1
Bottom floor rack (wide)64814-164814-164814-164814-1


18

Bottom floor rack (narrow)N/AN/A64815-164815-1
Shelf with side railN/A64810-164810-164810-1
19Shelf bracket65653-2465653-3665653-4865653-60
20Door handle63931639316393163931
21Evaporator drain pan1025311-11025311-21025583-11025583-2
ITEMS NOT SHOWN
 Wire harness, main1026161102616110261611026161
Suction line and capillary tube assembly1026509102650910265261026528
Mullion assemblyN/AN/A6655166551
Refrigerant charge (grams R290)80100100115
Defrost temp. limit switch57676576765767657676
Evaporator fan DC driver68758687586875868758
Digital temperature controller1026455102645510264551026455

SPEC DRAWINGS – GLASS FROSTERS

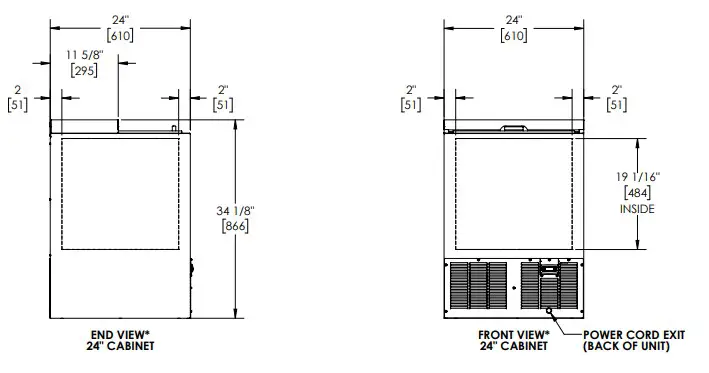

24″ CABINET

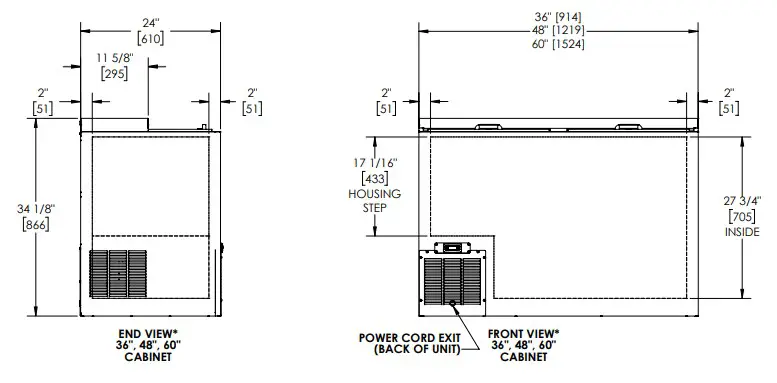

36″, 48″, 60″ CABINET
