Radius Pendant Ceiling Lamp
Instruction Manual
Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
TOOLS REQUIRED

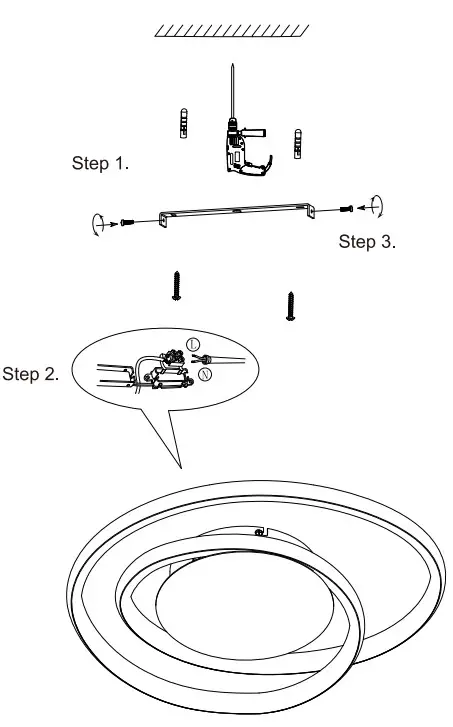

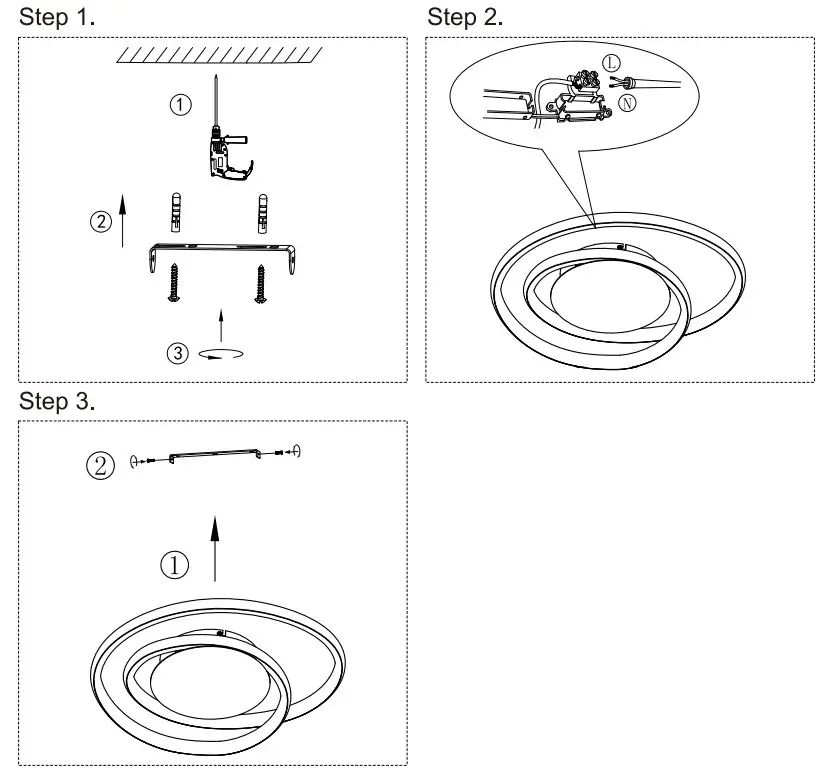

Installation(Make sure to turn off the main power)
Installation (continued)
Operation
❑ Turn on power at the circuit breaker or fuse box.
❑ Turn the light switch on to activate the fixture.

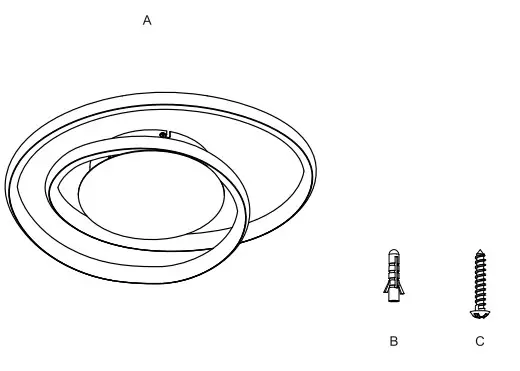

Package contents (parts are not to scale):
| Part | Description | Quantity |
| A | Light fixture | 1 |
| B | Wall expansion particle | 2 |
| C | Self-Tapping screw | 2 |
Light source
Max. LED 27W 1570Lumen 3000K (Dimmable)
Care and Cleaning
EXTERIOR MAINTENANCE
- To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the surface of the fixture.
- Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use only dry soft cloth to dust or wipe carefully.
CEILING LAMP
Art-Nr. 57590-040-71,57594-040-53
www.Iampehuset.no
