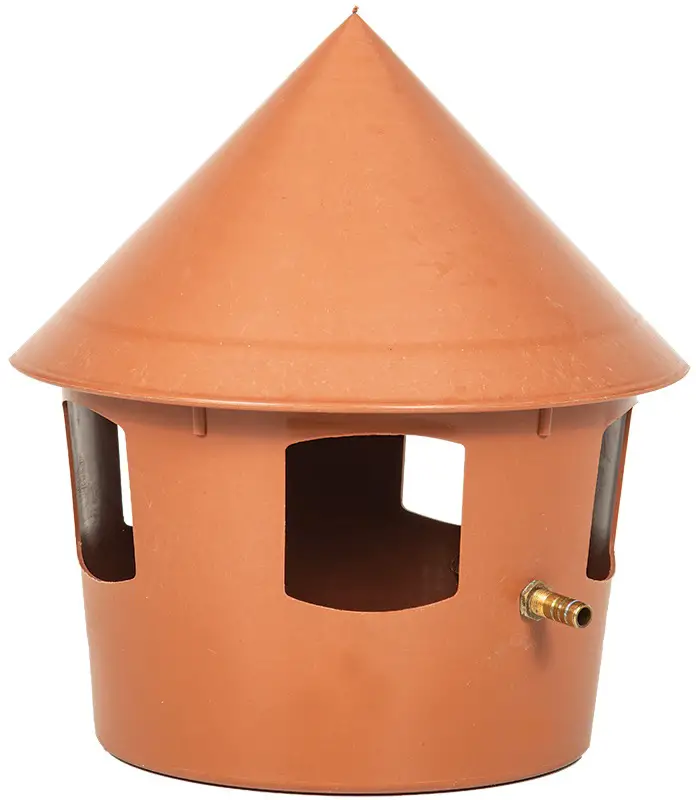

PREMIER 1 530092 Gravity Feed Pigeon Waterer Instruction Manual

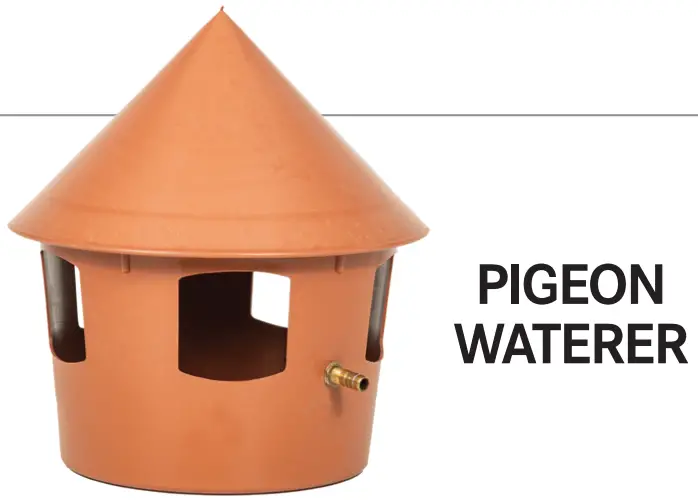

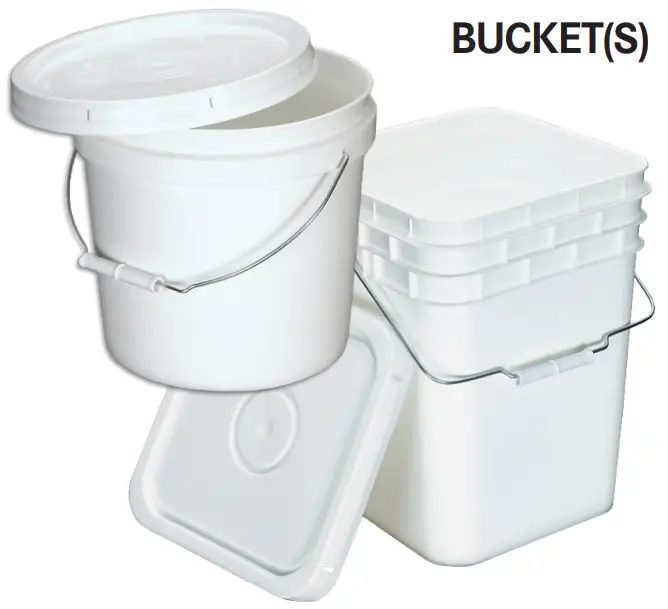

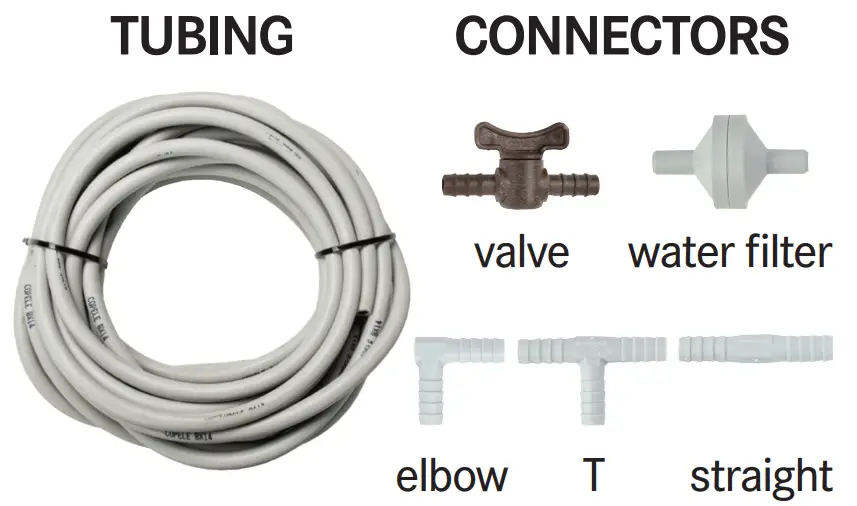

WHAT YOU WILL NEED
TANK ADAPTER
Installation Instructions
STEP 1
Using a square or round bucket, drill a 3/8″ hole with center 3/4″ from bucket bottom.
STEP 2

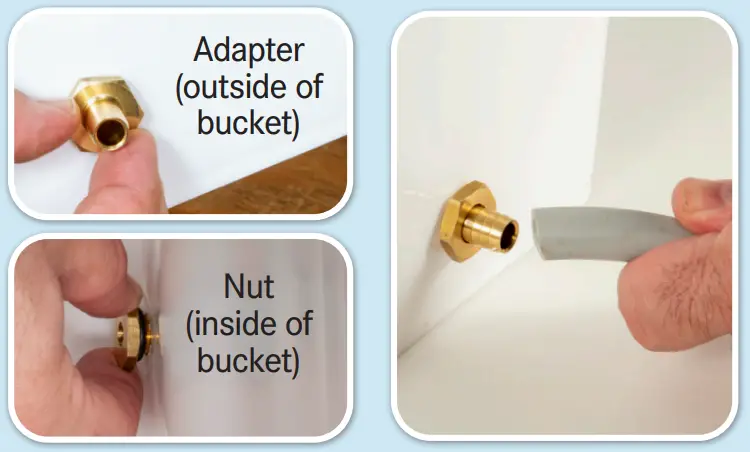

Insert tank adapter through hole in bucket.
Tighten nut to secure adapter in place. Slide tubing over adapter.
STEP 3

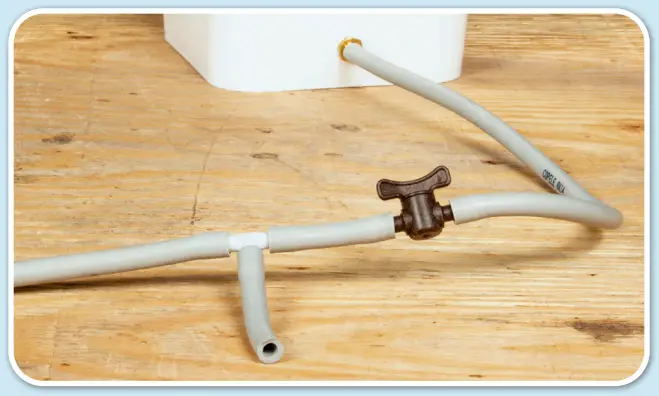

Connect a valve and/or water filter.
To connect tubing, use straight, T or elbow connectors.
STEP 4

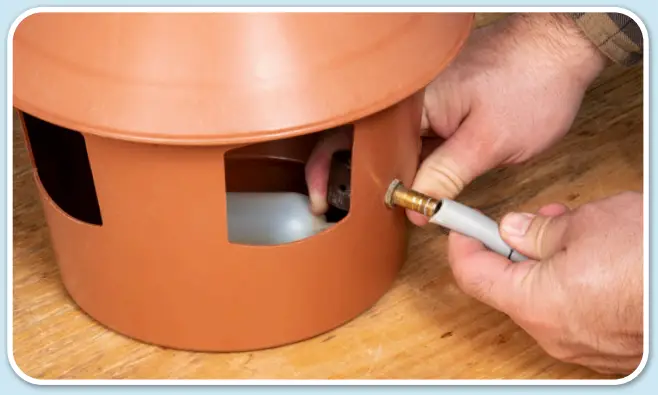

Slide tubing over Pigeon Waterer adapter.
Fill bucket to begin water flow.
