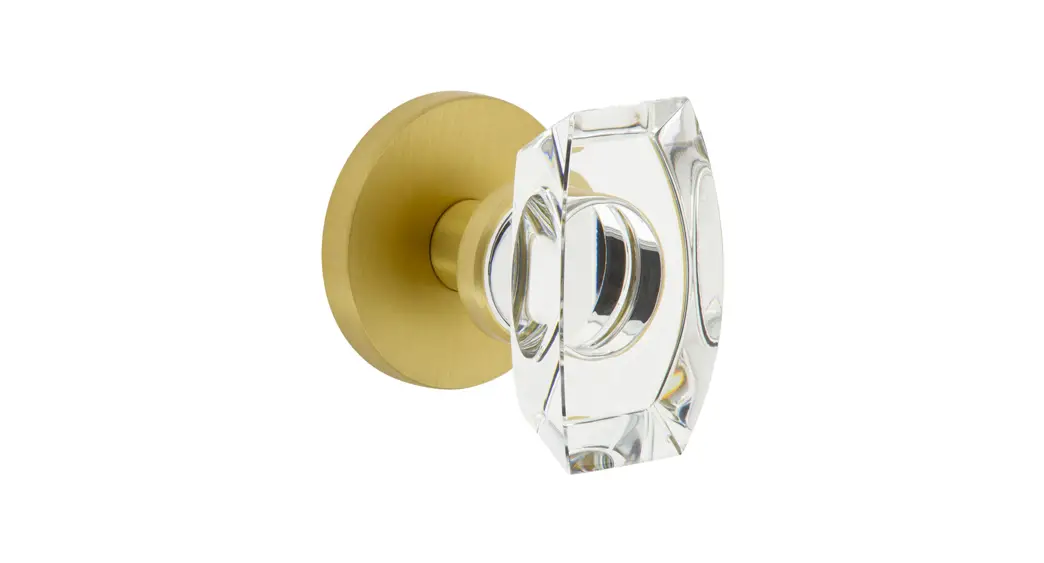

620054 Circolo Leather Rosette
Instruction Manual
Circolo Leather Rosette
IMPORTANT!
All wood screws require 7/64” pilot holes, 1” deep in the door and jamb.
Electric dills/drivers should NOT be used to install any wood screws.
NOTE:
Passage and privacies fit doors 1-3/8” to 1-3/4” thick.
Tools Required: #2 Phillips Screwdriver & electric drill, 7/64” bit

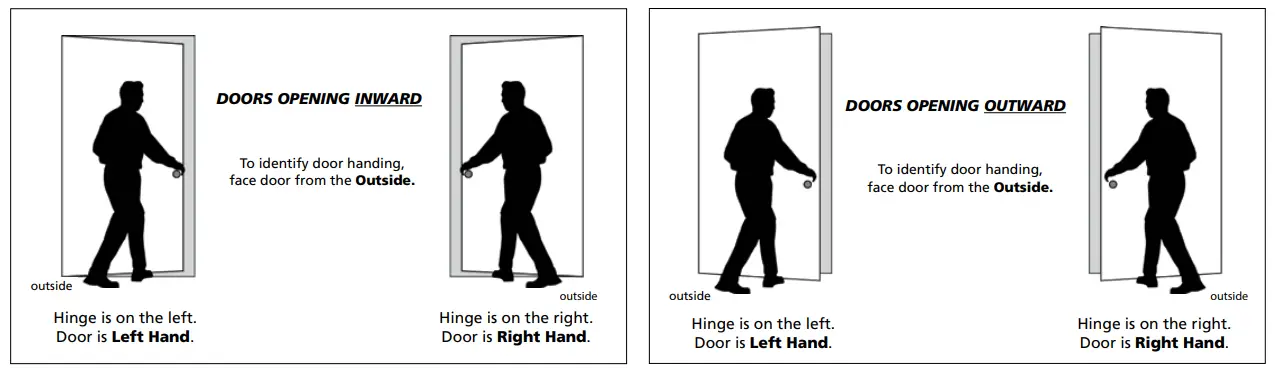

DOOR HANDING – ROSETTES AND SHORT PLATES
Door handling is critical for Split-Finish, or Split-Design products. It’s also used to determine where the Interior and Exterior halves of the lockset are located on the door. And, it’s used to position the latch tongue in relation to the strike plate.
Inside of Door – The Inside of a door refers to the side of the door that faces the room. For example, for a bedroom door in a hallway, the Inside of the door would face the bedroom.
Outside of Door – The Outside of a door refers to the side of the door that faces away from the room. For example, on a bedroom door, the Outside would face the hallway.
INSTALLATION RULES:
- READ ALL INSTRUCTIONS AND FOLLOW EACH STEP IN ORDER.
- DO NOT MIX PARTS FROM ONE BOX WITH THOSE OF ANOTHER.
- Lockset machine mounting screws are inserted from the inside.

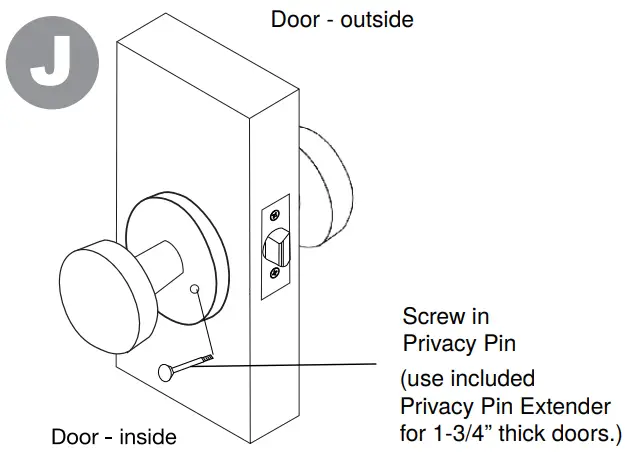

- Privacy pin holes are next to the door edge containing the latch.
- Latch’s tongues have a beveled side, and this side should contact the curved end of the face plate and the curved end of the strike plate.
(See *Latch Tongue Notes on page 2.)
https://www.youtube.com/watch?v=zNz0p-bE7A8

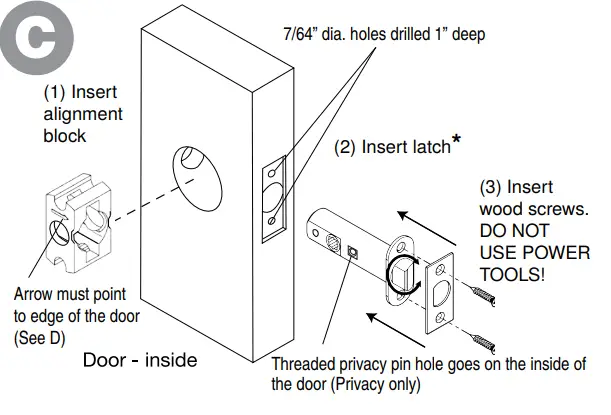

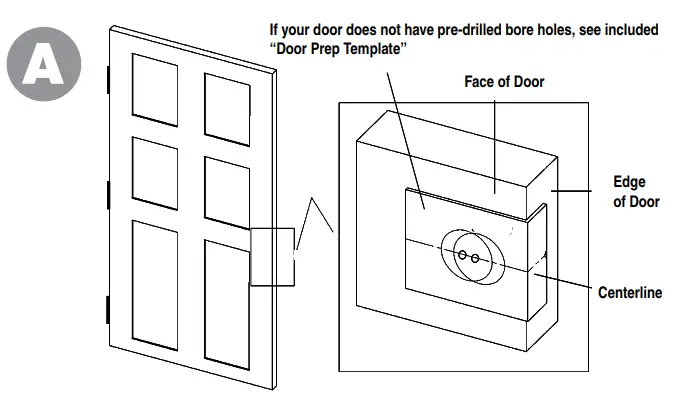

Skip stepping c if your door has pre-drilled boreholes.

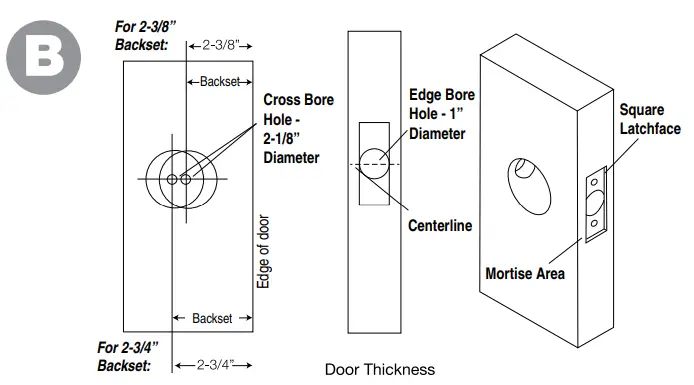

The drawing is shown with a square latch face. A radius latch face is also available.
IMPORTANT!
Determine the handling of your door (left or right) before installing any lockset parts!
* Latch Tongue Notes
A) You may need to tap the latch.
B) Bevel side of the latch tongue should contact the curved end of the face plate and the curved end of the strike plate.
- Loosen the hex screw on the knob/ lever, and position it facing down.

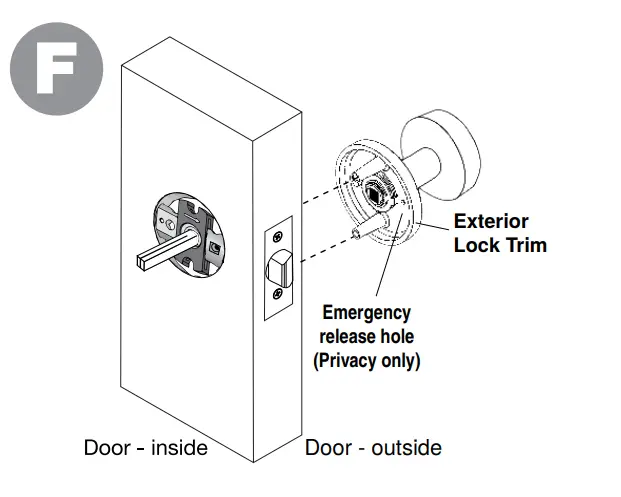

- Position the preassembled exterior lock trims on the outside of the door, and hold it in place.

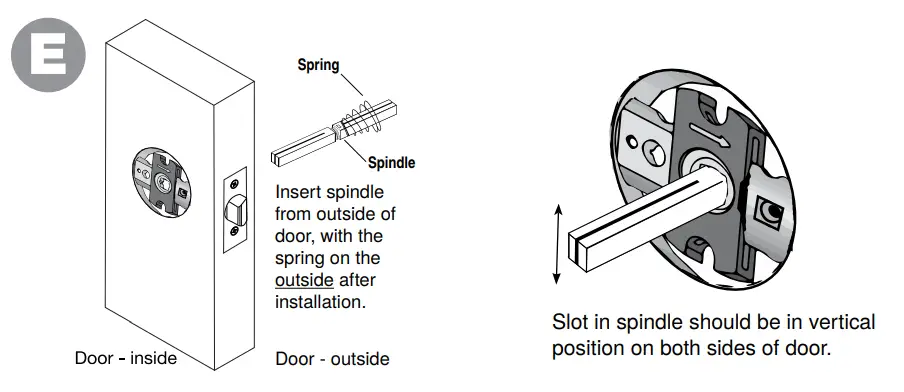

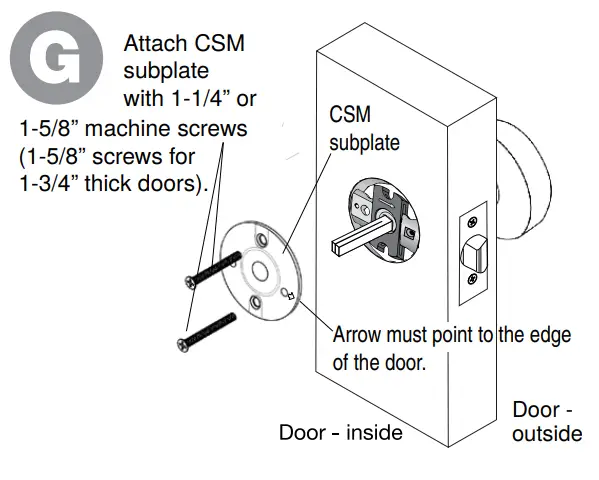

(Note: Before fully tightening, the subplate can be rotated to make levers horizontal).

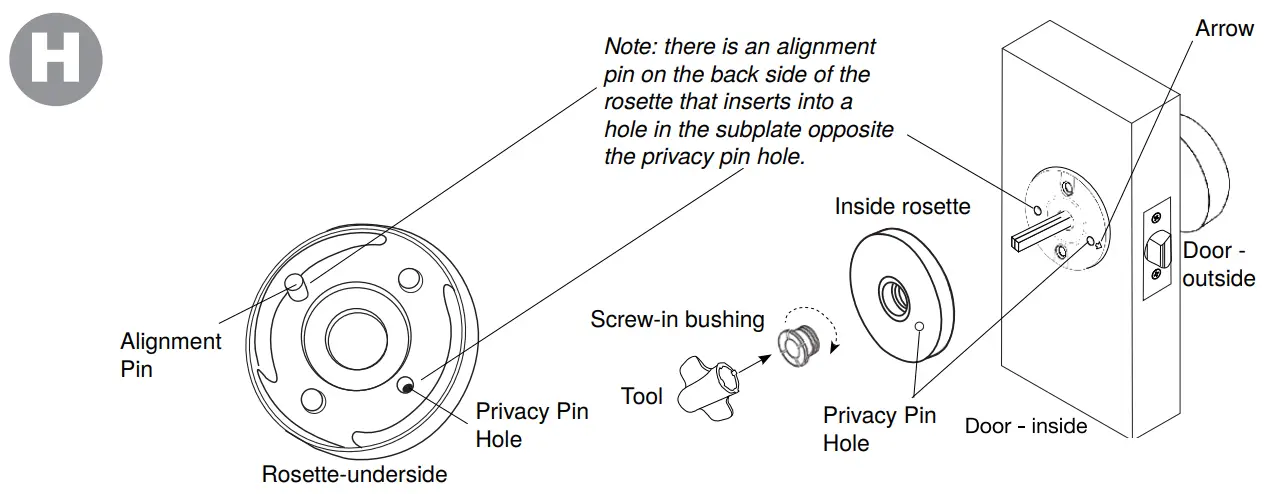

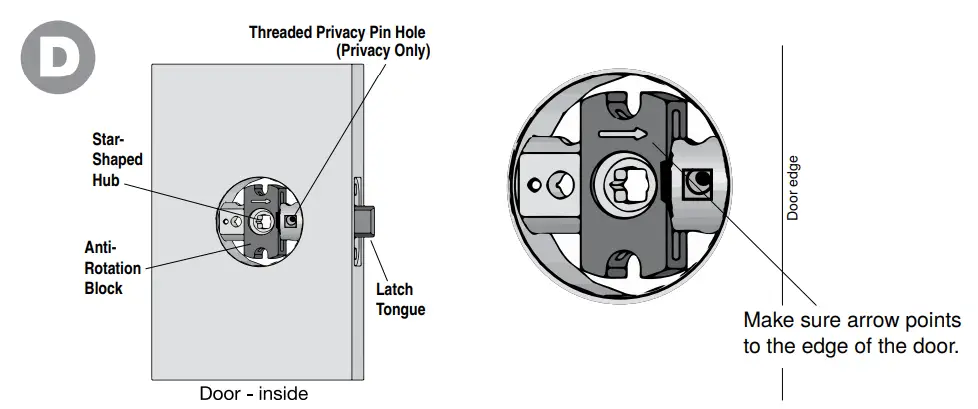

- Position inside rosette on subplate. The privacy pinhole (if present) should be next to the door edge.
- Attach rosette with screw-in bushing and included red plastic tool.
- Loosen the hex screw on the knob/ lever, and position it facing down.

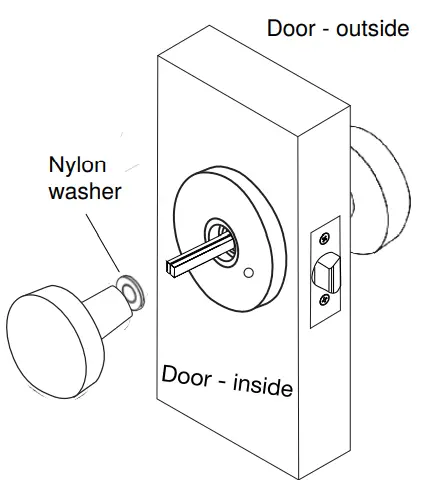

- Put the nylon washer onto the knob/lever, then slide the knob/lever onto the spindle with the hex screw on the bottom.

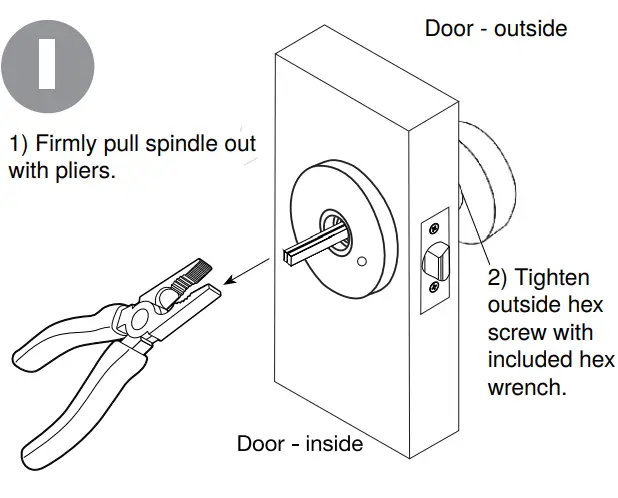

- Hold the knob/lever against the door, and tighten the hex screw with an included hex wrench.

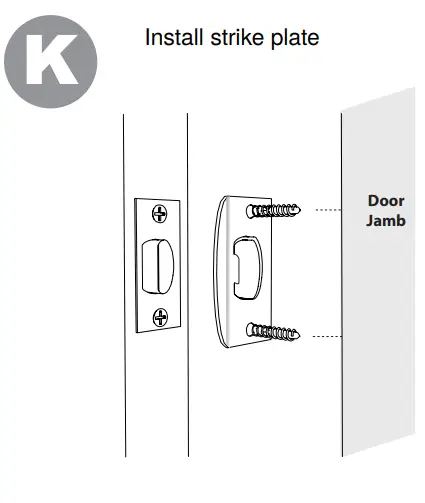

Attach strike plate to door jamb using 3/4” long wood screws
Note: Drill 7/64” diameter holes 1” deep. Install screws without using an electric drill/driver.
For assistance call 1(800)522-7336 Monday
– Friday 7 am–4 pm MT or visit www.ViaggioHardware.com/support
PK 191 04012021
