PIAGGIO VESPA GTS 125/300 07
Instruction Manual
GTS TOURING G WINDSHIELD
| ID. | PART | DESCRIPTION | QTY. | REF.: |
| 1 |  | TOURING screen | 1 | 20501W/HM3 |
| 2 | Upper left support | 1 | SOPOR4P6UL20501 | |
| 3 | Upper right support | 1 | SOPOR4P6UR20501 | |
| 4 | Lower left support | 1 | SOPOR4P6LL20501 | |
| 5 | Lower right support | 1 | SOPOR4P6LR20501 | |
| 6 | M6 DIN127 washer (black) | 2 | ARAND-D127–528 | |
| 7 | M6 DIN125 washer (black) | 2 | ARANDEPD125-054 | |
| 8 | Ø10xØ14x28mm Arrowhead | 2 | CASQUI——738 | |
| 9 | M8x45 DIN912 screw (Left thread) | 1 | TORNI-D912—871 | |
| 10 | M8x45 DIN912 screw (Right thread) | 1 | TORNI-AD912-508 | |
| 11 | M8 locknut (Left thread) | 1 | TUERCA——809 | |
| 12 | M8 locknut (Right thread) | 1 | TUEA-D985.8-M8- | |
| 13 | M6x65 DIN 912 screw | 2 | TORNI-D912—474 | |
| 14 | Threaded Cylinder | 2 | CASQUI-2P—873 | |
| 15 | Throught Cylinder | 2 | CASQUI-2P—873 | |
| 16 | Ø9xØ6x8mm silentblock | 4 | AROPASACABLES-3 | |
| 17 | Ø12xØ6,8×7,3 bush with flange | 4 | CASQUI-1A—750 | |
| 18 | M5x16 Ø11 ISO 7380 allen screw | 4 | TORNI-I7380-493 | |
| 19 | M5 ISO 7380 screw cap | 4 | TAPON——–85 | |
| 20 | M8 DIN127 Grower washer | 2 | ARAND-G8—-505 | |
| 21 | M8 DIN125 washer (black) | 2 | ARANDPD125A-018 | |
| 22 | M8 nut cap | 2 | CAPERUTM8–21/2 | |
| 23 | M8 DIN912 screw cap | 2 | TAPA–CH1145OE |

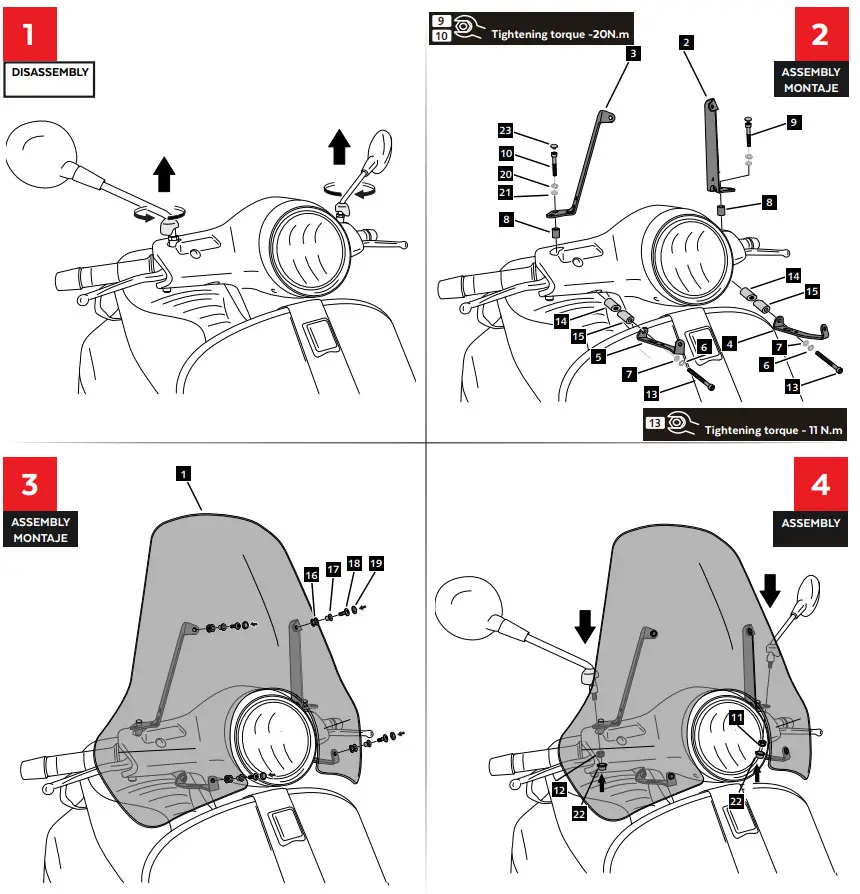

MOUNTING INSTRUCTIONS
