30 Cabeza Móvil Beam
User Manual
Arizona 30 Cabeza Móvil Beam
Please read the manual before using the product

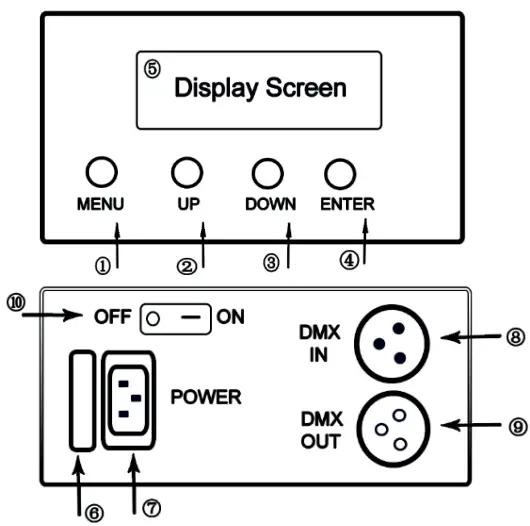

- MENU
- UP
- DOWN
- ENTER (Confirm button)
- Display Screen
- FUSE
- POWER IN
- DMX IN
- DMX OUT
- Switch
“rSt” is displayed after the power is plugged in and the switch is opened. The moving head light is resenting. Please do not operate.
The step to start the Auto mode:
- Press “MENU” to find “Au01”, and press “ENTER”.
- Press “UP” or “DOWN” to select “Au01” or “Au02”, and press “ENTER”.
The step to start the Sound Active mode:
- Press “MENU” to find “Snon”, and press “ENTER”.
- Press “UP” or “DOWN” to select “Snon”, and press “ENTER”.

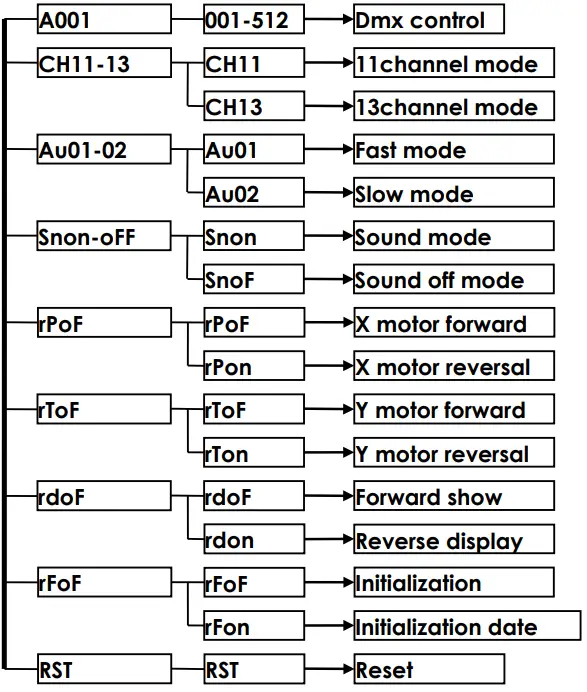

Operate Function
DMX 512 Function:
13 Channel mode
| Channel | Function | |
| 1 | 0-255 | Level |
| 2 | 0-255 | Level of fine-tuning |
| 3 | 0-255 | Vertical |
| 4 | 0-255 | Vertical of fine-tuning |
| 5 | 0-255 | Speed |
| 6 | 0-255 | Dimming |
| 7 | 0-255 | Strobe |
| 8 | 0-255 | Red dimming |
| 9 | 0-255 | Green dimming |
| 10 | 0-255 | Blue dimming |
| 11 | 0-255 | White dimming |
| 12 | 0-255 | Self-propelled |
| 13 | 150-250 | Reset |
11 Channel Mode
| Channel | Function | |
| 1 | 0-255 | Level |
| 2 | 0-255 | Level of fine-tuning |
| 3 | 0-255 | Vertical |
| 4 | 0-255 | Vertical of fine-tuning |
| 5 | 0-255 | Speed |
| 6 | 0-255 | Dimming |
| 7 | 0-255 | Strobe |
| 8 | 0-255 | Red dimming |
| 9 | 0-255 | Green dimming |
| 10 | 0-255 | Blue dimming |
| 11 | 0-255 | White dimming |
