E280 Outdoor Spike Light
Instructions
E280 Outdoor Spike Light
Connecting the Terminal Block
Connect main supply (brown – Live, blue – Neutral) 1 into terminal block making sure all connections are tight.
Please read instructions before commencing installation and retain for future reference.
SPECIFICATIONS
- Material: Aluminum-Opal PC Diffuser
- Lamp type: LED 15W 13000K I 1550Lm
- Ingress Protection: IP65. Protection against entry of solid objects greater than 12mm in diameter.

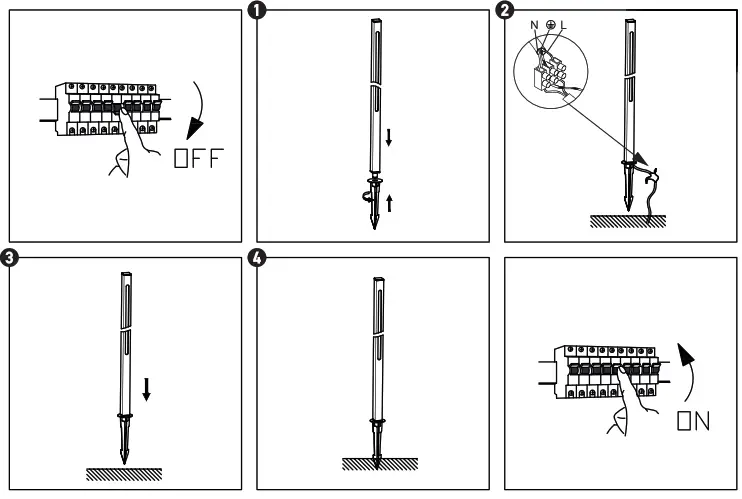

INSTALLATION INSTRUCTIONS
Electrical products can cause death. injury. or damage to property. Maintenance and installation should only be carried out by a professional electrician.
- Ensure main supply is switched off.
- Carefully remove the product from its packaging and screw the spike (1).
- Connect main supply wires to terminal block (2) making sure all connections are tight.
- Fix the fitting of light into the spike (3).
- Place the light to the ground with the spike (4)
- Reconnect power.
WARNING
- Make sure that the products is installed property before connecting to electricity.
- Do not cover the fitting.
02-03-2023
