WMicS1 UHF Wireless Microphone System
Instruction Manual

Forward

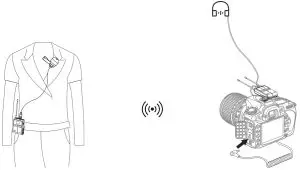

‘Thank you for purchasing UHF Wireless Microphone system-WMicS1. These products are suitable for video recording, journalistic shooting, audio recording, etc, Please read  this manual carefully before using to make sure the correct operation and exert the optimum function.

Features:

• UHF Frequency Range: 514MHz-596MHz
• There are 96 wireless channels which can be freely switched without interference
• High and stable sound quality ke broadcast
• The maximum wireless distance up to 100m

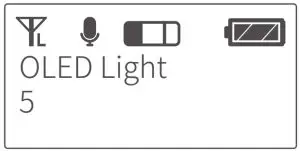

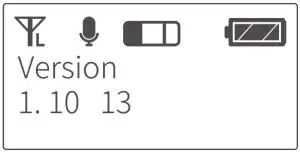

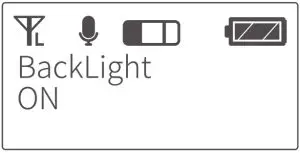

• With OLED display to show the parameters setting
• Achieve real-time monitoring with 3.5mm earphone
• With output volume control and silence function
• The power of transmitter is adjustable
• Support two transmitters and one receiver to work simultaneously
• Two power supply mode
  (Note: as the max. support frequency is 514MHz-596MHz which includes the 96 wireless channel’s frequency, there are parts of frequency may not be ullized.)

Warning

Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
 Always keep this product dry. Do not use in rain or in damp conditions.
 Keep out of reach of children.
 Do not use this product in the presence of flammable gas. In certain circum-stance, please pay attention to the relevant warnings.
 Do not leave or store the product if the ambient temperature reads over 40°C.
Turn off this product immediately in the event of malfunction.
Observe precautions when handling batteries.

• Use only batteries listed in this manual. Do not use old and new batteries or batteries of different types at the same time.
• Read and follow all warnings and instructions provided by the manufacturer.
• Batteries cannot be short-circuited or disassembled.
• Do not put batteries into a fire or apply direct heat to them,
• Do not attempt to insert batteries upside down or backwards.
• Batteries are prone to leakage when fully discharged. To avoid damage to the product, be sure to remove batteries when the product is not used for along time or when batteries run out of charge.
• Should liquid from the batteries come into contact with skin or clothing, rinse immediately with fresh water.

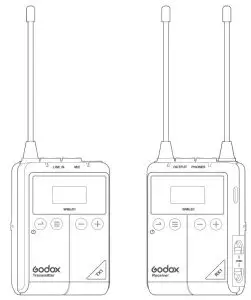

Names of Parts

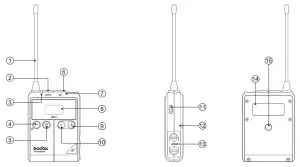

Body-pack Transmitter (TX1)

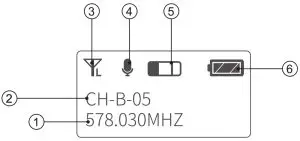

OLED Display:

1. Communication Frequency
2. Wireless Group and Channel
3. Transmitting Power Icon
4. Pick-up Soundi Silent Icon
5.  Input Volume Indicator
6. Battery Level Indicator

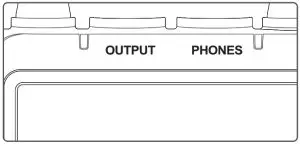

Portable Receiver (RX1)

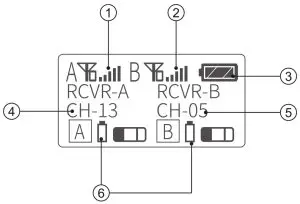

OLEO Display :

1. A Group Frequency Signal
2. B Group Frequency Signal
3. Battery Level Indicator
4. A Group Receive Channel
5. B Group Receive Channel
6. Transmitter’s Battery Level and Volume
