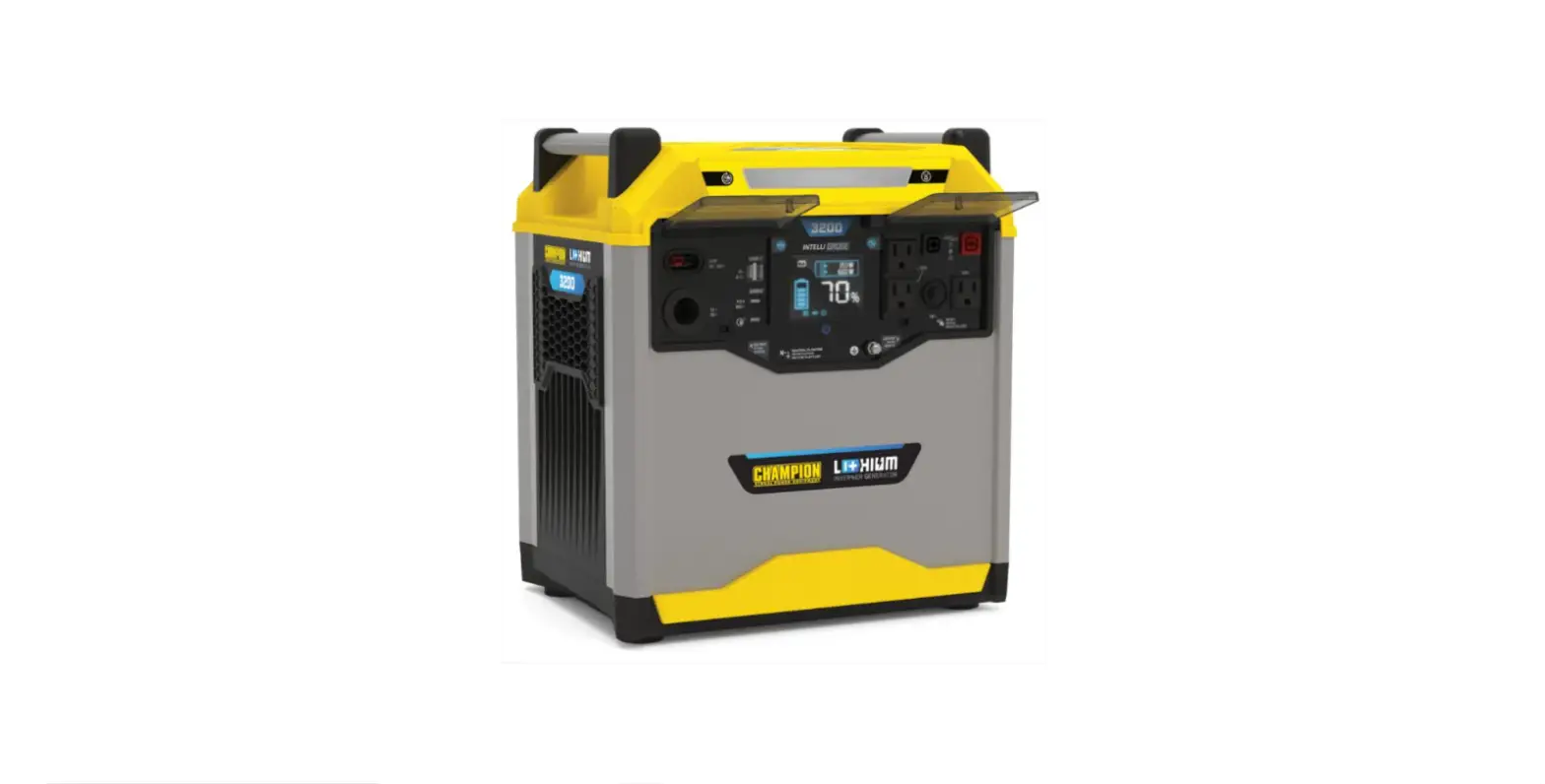

Champion Power Equipment 3200er Li-ion Portable Power Station User Manual

Product Information

• Product Name: Portable Power Station
• Model Number: 100593
• Starting Watts: 3200
• Running Watts: 1600
• Run Time: Up to 32 hours
• Watt Hours: 3276
• Battery Technology: Lithium-ion (Li-ion)
• Power Delivery: Long-lasting fade-free
  power
• UPC: 817198022512
• Warranty: 3 Years or 1000 cycles
• Emissions: Zero
• Waste: Zero
• Charge Time: Recharge to 80% in 6.3 hours
  (AC)
• Expandable Capacity: Add expansion batteries
  to increase run time
• Parallel Ready: Link 2 units to double your
  power
• Outlets:
  • – DC: 12V DC Regulated Automotive
  • – AC: 120V, 5-15 R (15 AMP Parallel)
  • – APP: USB A (5V, 2.1A) x2, USB C PD x1, QC 3.0 x1
  • – APP: MC4 (x3) Battery Port
• Specifications:
  • – Surge/Peak Watts: 3200 (3 sec.) / 4500 (0.5 sec)
  • – Voltage: 120V
  • – AC Amps @ 120V (Running): 13.3
  • – Output Frequency: 60 Hz
  • – Grounding Type: Neutral Floating
  • – Phase: Single
  • – Rated Output Voltage: 46.8V
  • – Max Output Voltage: 55V
  • – Capacity: 3276Wh
  • – Warranty: 3 Years or 1000 Cycles

Product Usage Instructions

The Champion Portable Power Station Model 100593 is a versatile
power source that provides clean and reliable energy. Follow the
instructions below to properly use the product:

1. Before use, make sure the power station is fully charged.
   Connect the AC charge cable to an appropriate power outlet and the
   power station’s AC inlet to initiate charging.
2. To charge the power station using solar panels, connect the
   easy connect DC solar charge harness to the power station’s DC
   inlet and connect the solar panels to the harness.
3. Ensure that the power station is properly grounded for safe
   operation.
4. Identify the type of outlet you need for your devices. The
   power station offers DC, AC, and APP outlets.
5. For DC devices, use the 12V DC outlet with regulated automotive
   power.
6. For AC devices, use the 120V, 5-15 R outlet with a maximum of
   15 AMPs.
7. The APP outlets include USB A (5V, 2.1A) x2, USB C PD x1, QC
   3.0 x1, and MC4 battery port x3. Use the appropriate outlet for
   your devices.
8. Before connecting devices, ensure they are compatible with the
   power station’s voltage and wattage.
9. If you need to extend the run time, you can add expansion
   batteries by purchasing the Expansion Battery (Model 201107) and
   connecting it to the power station.
10. To double your power output, you can link two units together
    using the Parallel Kit (Model 201108).

Please refer to the included Operator’s Manual for detailed
instructions on safety precautions, maintenance, and
troubleshooting. For any further assistance or inquiries, visit the
Champion Power Equipment website or contact their customer
support.
