ggm gastro BWHKE1221N Cold Hot Banquet Trolley User Manual
GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions carefully. Wrong installation and part changing may damage the product or may cause injury on people. These are not in our company’s responsibility to damage the appliance intentionally, negligence ,detriments because of disobeying instructions and regulations, wrong connections. Unauthorized intervention to appliance invalidates the warranty
- This instruction manual should be kept in a safe place for future reference.
- Installation should be made in accordance with ordinances and security rules of that country by a qualified service personnel.
- This appliance has to be used by trained person.
- Please turn off the appliance immediately in the event of malfunction or failure.The appliance should be repaired only by authorized service personnel.Please demand original spare part.
PRODUCT DESCRIPTION
The Professional Cold – Hot Banquet Trolley,that provides high efficiency has been designed to be used in industrial kitchens.
| Product Code | Dimensions (mm) | Weight (kg) | Packaging Dimensions (mm |
| BWHKE1211N | 536x920x1640 | 566X964X1740 | |
| BWHKE1221N | 740x1036x1640 | 116,5 | 770X1080X1740 |
TECHNICAL INFORMATION
| Product Code | Operating Temparature(°C) | Capacity | Power(KW) | AMPERE(A) | Operat.Volt.(V) | (mm2) |
| BWHKE1211N | H – 65°C / 75°CC – +0°C/+5°CTropikal 43°C | 6xGn 1/1Hot6xGn 1/1Cold | 1,9 | 9,5 | 220V | 3×1,5 |
| BWHKE1221N | H – 65°C / 75°CC – +0°C/+5°CTropikal 43°C | 6xGn 2/1Hot6xGn 2/1Cold | 1,9 | 9,53×1,5 | 220V |
TRANSPORTATION
This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck.
UNPACKING
Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.
Please check that all the parts of appliance had come completely and if they are damaged or not during the shipping.
INSTALLATION
Technician who will serve for installation and service for the appliance must be professional on this subject and must have installation and service licenses by the company.
Please be sure that the voltage connected to appliance must be equal with the voltage which is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules and standards.
Appliance’s earthing must be connected to earthing line on panel which is nearest to electric installation.
Connection to the main fuse and leak current fuse must be done in accordance with the current regulations
SAFETY INSTRUCTION
Do not use the appliance in insufficient lighted place.
Do not touch the moving attachments while the appliance operates
Do not connect the device to an outlet near flammable or explosive materials
*Do not operate the appliance when the machine is empty.
Do not load so less or more than appliance’s capacity
*Do not attempt to use the appliance without suitable protective equipments.
Because of any reason if there is a fire or flame flare where the appliance is used,turn off all gas valves and electric contactor switch quickly and use fire extinguisher .Never use water to extinguish the fire.
All the damages because of not having earthing connection will not be on warranty.
Get the necessary cautions against electric danger.
Do not leave the door open en while moving the banquet trolley. İt may be dangerous to move the door without control. Unplug and leave the plug on the trolley.
OPERATION

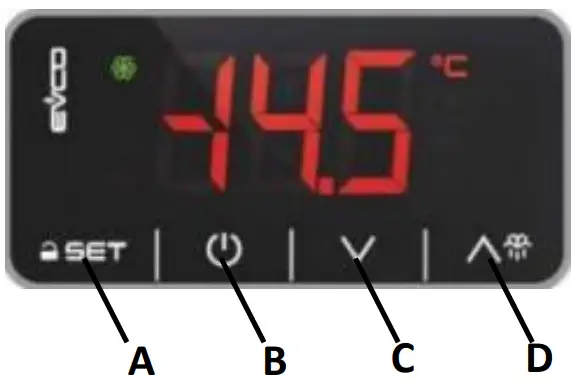

Control Panel
A : SET Button
B : ON/OFF Button
C : Down Arrow Button
D : Up Arrow Button
Operating:
- Be sure that the inside of the trolley is clean and the trolley is constant to where it is before starting any process.
- Plug in the appliance.
- Switch to ON position.
- After Indicator lamps signal,inside temperature will be shown.
- You can fill the banquet trolley during cooling-heating process..In this situation coolingheating time will be a little bit longer.
- After Cooling-Heating Starts ;
- Switch to OFF position. All lamps will be off.
- Unplug it and leave the plug on the trolley.
CLEANING & MAINTENCE
CLEANING AND MAINTENANCE AFTER EVERY USE
- Always turn off the appliance and disconnect from the power supply before cleaning.
- Clean the inside of appliance after every use.
- Clean the inside and outside of the appliance with moist cloth and then dry.
- Do not use abrasive cleaning chemicals as these can leave harmful residues.
- Do not clean the appliance by spraying water directly,otherwise electric motor may get damaged.
PERIODIC CLEANING AND MAINTENAN
- Maintenance should be done by qualified person.
- Get the periodic maintenance of the appliance once in every 15 days.
- Check the wheels, electric connections, fan, control system,, door and door lock once in every 6 months.
- Check the door wick in periodic time and set. Change the wicks that can not be used
TROUBLESHOOTING
| THE APPLIANCE DOESN’T OPERATE |
|
| THE APPLIANCE DOESN’T COOL and HEAT |
|
| THE APPLIANCE STOPPED |
|
| THE BRAKES CAN NOT BE APPLIED |
|
| DOOR IS NOT CLOS |
|
- If cooling and heating is not done at suitable quality
- If any function of security doesn’t work
- Do not use the appliance.
If these problems are still going on,contact with our authorized services.

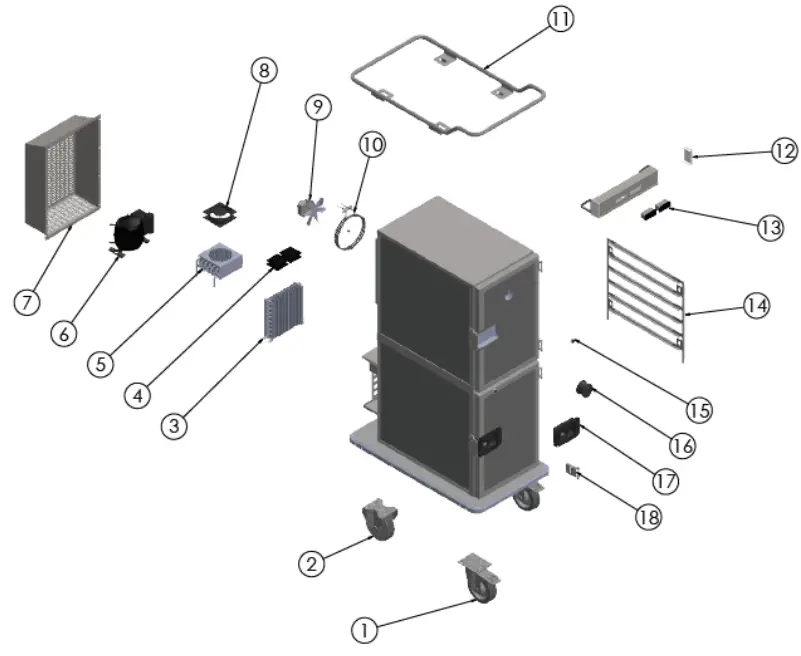

SPARE PARTS LIST – EXPLODING
| PRODUCT CODE: BWHKE1211N | ||
| NO | PRODUCT NAME | P.CODE |
| 1 | BRAKE WHEEL | Y.BWHKE1211N.001 |
| 2 | BRAKE FIXED WHEEL | Y.BWHKE1211N.002 |
| 3 | EVAP | Y.BWHKE1211N.003 |
| 4 | EVAP FAN | Y.BWHKE1211N.004 |
| 5 | CONDENSER | Y.BWHKE1211N.005 |
| 6 | COMPRESSOR | Y.BWHKE1211N.006 |
| 7 | MOTOR GROUP SHUTTER SHEET | Y.BWHKE1211N.007 |
| 8 | CONDENSER FAN | Y.BWHKE1211N.008 |
| 9 | FAN MOTOR | Y.BWHKE1211N.009 |
| 10 | RESISTANCE | Y.BWHKE1211N.010 |
| 11 | UPPER BALCONY PIPE | Y.BWHKE1211N.011 |
| 12 | PANEL SIDE COVER | Y.BWHKE1211N.012 |
| 13 | DIGITAL DISPLAY | Y.BWHKE1211N.013 |
| 14 | SHELF SHEET | Y.BWHKE1211N.014 |
| 15 | MAGNET | Y.BWHKE1211N.015 |
| 16 | VENTILATION PLASTIC | Y.BWHKE1211N.016 |
| 17 | DOOR LOCK | Y.BWHKE1211N.017 |
| 18 | HINGE | Y.BWHKE1211N.018 |
| PRODUCT CODE: BWHKE1221N | ||
| NO | PRODUCT NAME | P.CODE |
| 1 | BRAKE WHEEL | Y.BWHKE1221N.001 |
| 2 | BRAKE FIXED WHEEL | Y.BWHKE1221N.002 |
| 3 | EVAP | Y.BWHKE1221N.003 |
| 4 | EVAP FAN | Y.BWHKE1221N.004 |
| 5 | CONDENSER | Y.BWHKE1221N.005 |
| 6 | COMPRESSOR | Y.BWHKE1221N.006 |
| 7 | MOTOR GROUP SHUTTER SHEET | Y.BWHKE1221N.007 |
| 8 | CONDENSER FAN | Y.BWHKE1221N.008 |
| 9 | FAN MOTOR | Y.BWHKE1221N.009 |
| 10 | RESISTANCE | Y.BWHKE1221N.010 |
| 11 | UPPER BALCONY PIPE | Y.BWHKE1221N.011 |
| 12 | PANEL SIDE COVER | Y.BWHKE1221N.012 |
| 13 | DIGITAL DISPLAY | Y.BWHKE1221N.013 |
| 14 | SHELF SHEET | Y.BWHKE1221N.014 |
| 15 | MAGNET | Y.BWHKE1221N.015 |
| 16 | VENTILATION PLASTIC | Y.BWHKE1221N.016 |
| 17 | DOOR LOCK | Y.BWHKE1221N.017 |
| 18 | HINGE | Y.BWHKE1221N.018 |

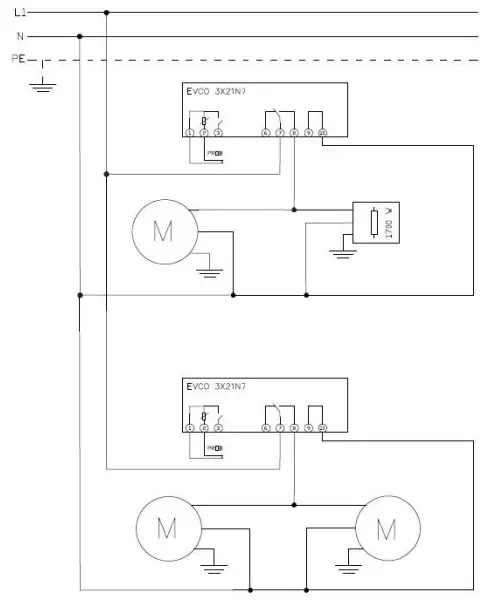

Electric Circuit Schema
