Culitek Gas Equipment - LOGOINSTRUCTION MANUAL
Gas Range/Griddle CombosCulitek Gas Equipment BDGR-3624GNG Gas Range Griddle Combos

BDGR-3624GNG Gas Range/Griddle Combos

Exploded Diagrams and Parts Lists for the Range/Griddle Combos

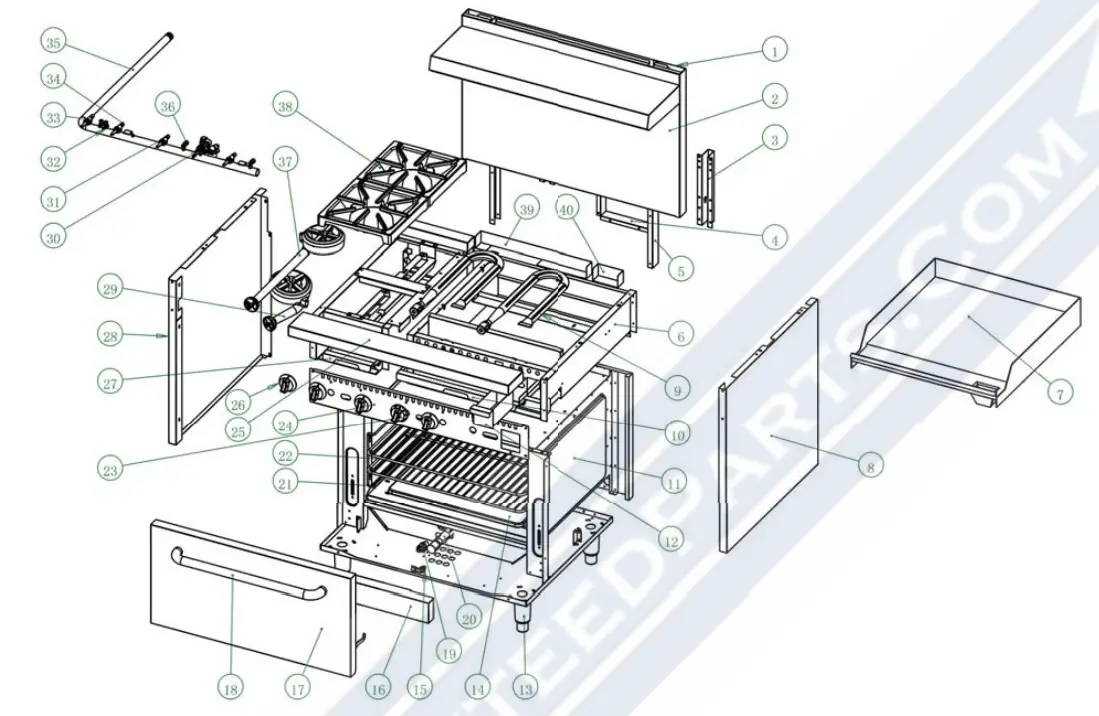

36” Wide, 2 Burner, 24” Griddle ModelCulitek Gas Equipment BDGR-3624GNG Gas Range Griddle Combos - parts 1

Diagram NumberDescriptionQuantity
1Rear Part of Back Plate1
2Front Part of Back Plate1
3Guide Trough of Back Plate2
4Inner Gas Chimney1
5Support Plate for Back Plate2
6Griddle Framework Assembly1
7Griddle Plate Assembly1
8Right Side Shell Plate1
9“U” Burner2
10Crumb Tray for Griddle1
11Oven Chamber Assembly1
12Griddle Oil Box Assembly1
13Adjustable Foot4
14Bottom Plate for Oven Inner Chamber1
15Orifi ce for Oven1
16Front Bottom Beam1
17Door1
18Door Handle1
19Pilot1
20Pipe Burner1
21Rack Support2
22Rack2
23Knob for Oven1
24Front Panel1
25Front Ledge1
26Knob4
27Crumb Tray for Top Burners1
28Left Side Shell Plate1
29Short Hotplate Burner1
3022P Sarbarf Gas Valve1
31Orifi ce for Griddle2
32NG/LPG conversion valve AP6-11
33PB100 Valve4
34Orifi ce for Hotplate2
35Inlet Gas Pipe Assembly1
36NG/LPG Conversion Valve AP7-12
37Long Hotplate Burner1
38Grate2
39Chimney Plate 2 for Griddle1
40Chimney Plate 1 for Griddle1

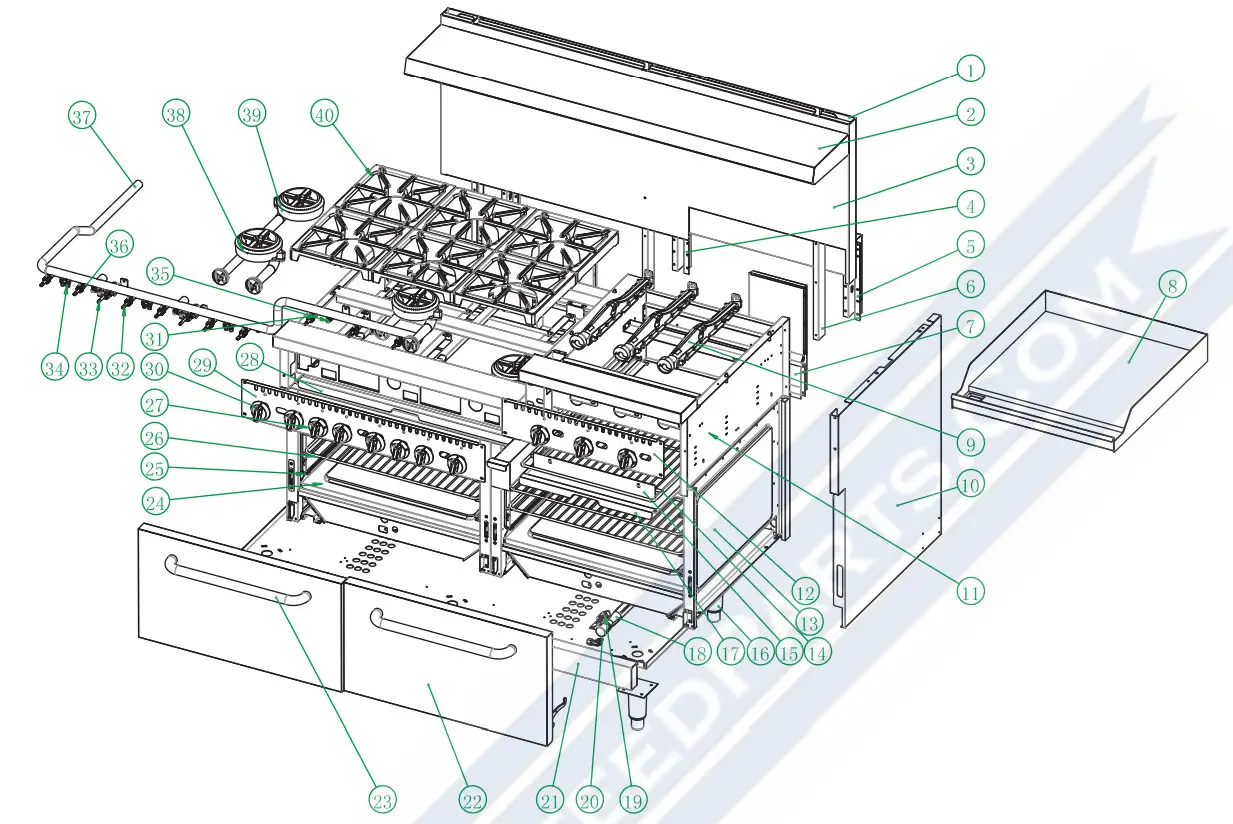

60” Wide, 6 Burner, 24” Griddle Model

Culitek Gas Equipment BDGR-3624GNG Gas Range Griddle Combos - parts 3

Diagram NumberDescriptionQuantity
1Rear Part of Back Plate1
2Stainless Steel Shelf1
3Front Part of Back Plate1
4Inner Gas Chimney2
5Guide Trough of Back Plate2
6Support Plate for Back Plate3
7Griddle Plate Assembly1
8Chimney Plate 1 for Griddle1
9Chimney Plate 2 for Griddle1
10“U” Burner2
11Griddle Framework Assembly1
12Crumb Tray for Griddle1
13Oven Chamber Assembly2
14Right Side Shell Plate1
15Griddle Oil Box Assembly1
16Adjustable Foot6
17Bottom Plate for Oven Inner Chamber2
18Pipe Burner2
19Pilot2
20Orifi ce for Oven2
21Door2
22Door Handle1
23Rack Support4
24Rack4
25Front Bottom Beam2
26Oven Knob2
27Burner Knob8
28Front Panel1
29Crumb Tray for Top Burners1
30Decorate Plate1
31NG/LPG Conversion Valve AP7-12
32Orifi ce for Griddle2
33Orifi ce for Hotplate6
3422P Sarbarf Gas Valve2
35PB100 Valve8
36NG/LPG conversion valve AP6-13
37Inlet Gas Pipe Assembly1
38Short Hotplate Burner3
39Long Hotplate Burner3
40Grate6
41Guide Trough of Back Plate1

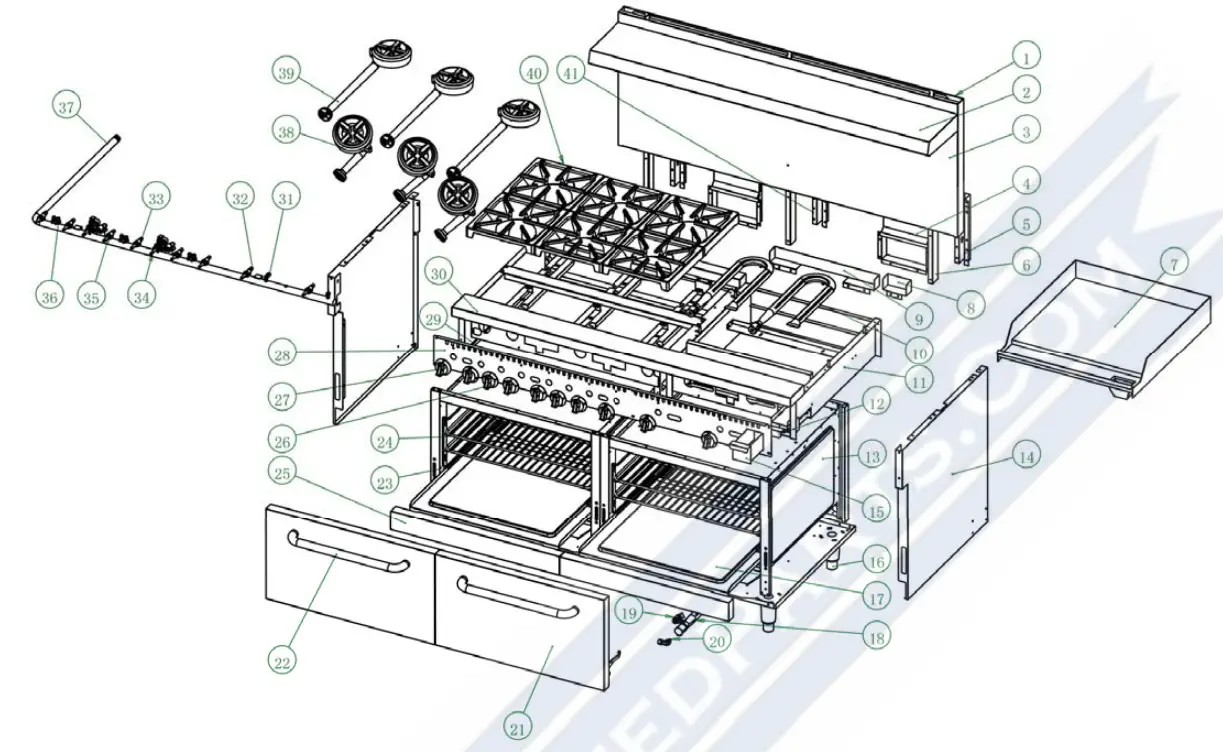

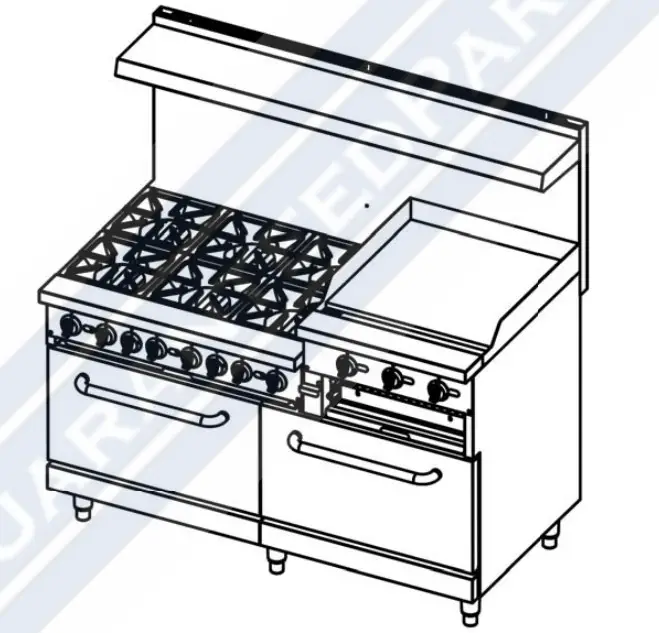

60” Wide, 6 Burner, 24” Griddle/Broiler Model

Culitek Gas Equipment BDGR-3624GNG Gas Range Griddle Combos - parts 2

Diagram NumberDescriptionQuantity
1Rear Part of Back Plate1
2Decorate Cover1
3Front Part of Back Plate1
4Guide Trough of Back Plate1
5Guide Trough of Back Plate2
6Support Plate for Back Plate3
7Inner Gas Chimney2
8Griddle Plate Assembly1
9Broiler Burner3
10Right Side Shell Plate1
11Griddle/Broiler Framework Assembly1
12Front Panel1
13Oven Chamber Assembly2
14Broiler Rack1
15Crumb Tray1
16Adjustable Foot6
17Crumb Tray for Broiler1
18Pipe Burner2
19Pilot2
20Orifi ce for Oven2
21Front Bottom Beam2
22Door2
23Door Handle2
24Bottom Plate for Oven Inner Chamber2
25Rack Support4
26Rack4
27Oven Knob2
28Crumb Tray for Top Burners1
29Front Panel1
30Burner Knob9
31Orifi ce for Broiler3
32PB100 Valve9
3322P Sarbarf Gas Valve2
34NG/LPG conversion valve AP6-13
35NG/LPG Conversion Valve AP7-13
36Orifi ce for Hotplate6
37Inlet Gas Pipe Assembly1
38Short Hotplate Burner3
39Long Hotplate Burner3
40Grate6
