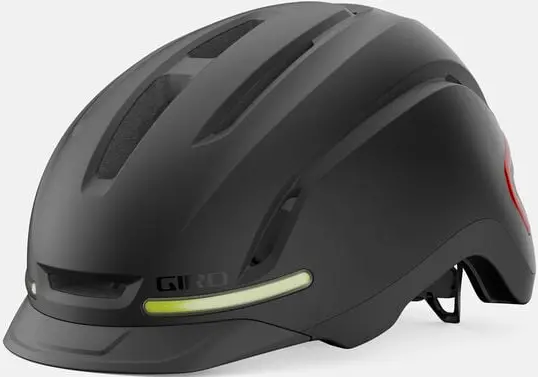

GIRO G5004292 Ethos Mips Helmet Lights User Manual
POWER ON: Push remote power button / Push helmet power button
HELMET/REMOTE POWER BUTTON Push to turn on low solid / Push again for high solid / Push again for low flash / Push again for high flash
HELIVET POWER BUTTON: Push and hold for 3 seconds to turn on and off
REMOTE L/R BUTTON: Push to turn on blinker / Push again to turn off blinker Turn signals stop after 120 seconds.
ATTACHING REMOTE

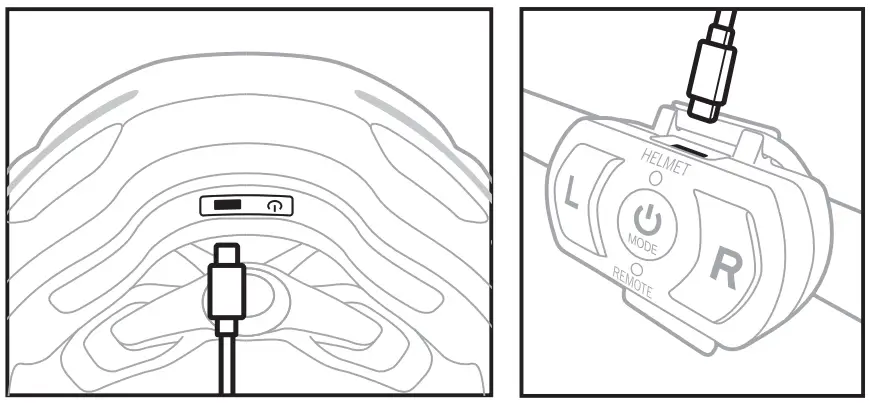

CHARGING
| BATTERY STATUS | HELMET | REMOTE |
| Solid Green | 51-100% | 51-100% |
| Flash Red | 26-50% | 26-50% |
| Solid Red | 0-25% | 0-25% |
| CHARGE INDICATOR | HELMET | REMOTE |
| Solid Green | 100% | 76-100% |
| Flash Green | 51-99% | 51-75% |
| Flash Red | 26-50% | 26-50% |
| Solid Red | 0-25% | 0-25% |
Charge Times: Remote – 1 hour, Helmet – 2 hours
| LED | MODE | LUMENS | TOTAL LUMENS | RUNTIME |
| Front | HIGH solid | 40 | 65 | 2.5 hrs |
| Rear | 25 | |||
| Front | LOW solid | 25 | 35 | 5.3 hrs |
| Rear | 10 | |||
| Front | HIGH flash | 45 | 75 | 7.5 hrs |
| Rear | 30 | |||
| Front | LOW flash | 25 | 40 | 11 hrs |
| Rear | 15 |
FL-1 Standard, IP-65, USB-c Rechargeable
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.
WARNINGS: This light is extremely bright—do not aim directly into eyes.
Compliant Helmet electronics should be appropriated to E-waste.
EUROPE
GIRO, Ireland, LTD
River House, St. Mary’s Road
Newcastle West
County Limerick, Ireland
Tel: +353-69-61544
Fax: +353-69-61550
Email: [email protected]
WORLDWIDE
To find a current distributor in your region or territory, please visit us online at giro.com or contact either the US or European offices listed above.
AMERICA / ASIA PACIFIC RIM
GIRO
1001 Innovation Road Rantoul, IL 61866, U.S.A.
Tel: 831 461-7500
Fax: 831 461-7503
Email: [email protected]
U.S. and foreign patents pending
Giro Ethos Mips Light
Manual Insert
Part# G5004292 06.06.22
