Goggle clip hook replacement – Trooper 2Vi and Grimnir 2Vi helmets

Trooper 2Vi Mips Helmet

To change the goggle clip hook follow the instruction below.

  1. Remove the old goggle clip hook by unclipping the two parts of the hook and then slide off the front part from the strap

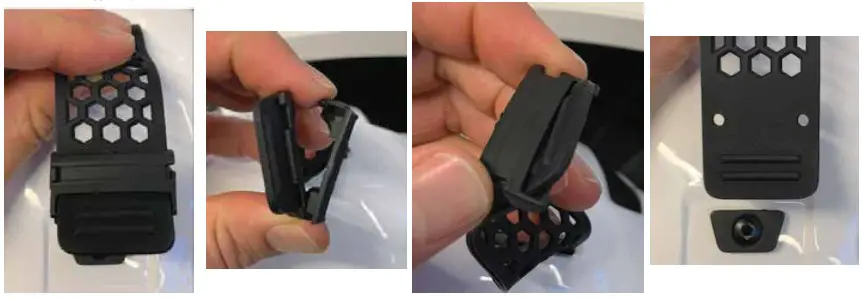

    Sweet Protection Trooper 2Vi Mips Helmet - overview 2
  2. Push the new front part on the strap. Make sure it is the correct way as shown below. It might be a bit tight so try to slide it in sideways and wiggle it hrough. Make sure the pins are aligned on the holes. Clip the new hook so that the two parts are assembled around the strap. All done!

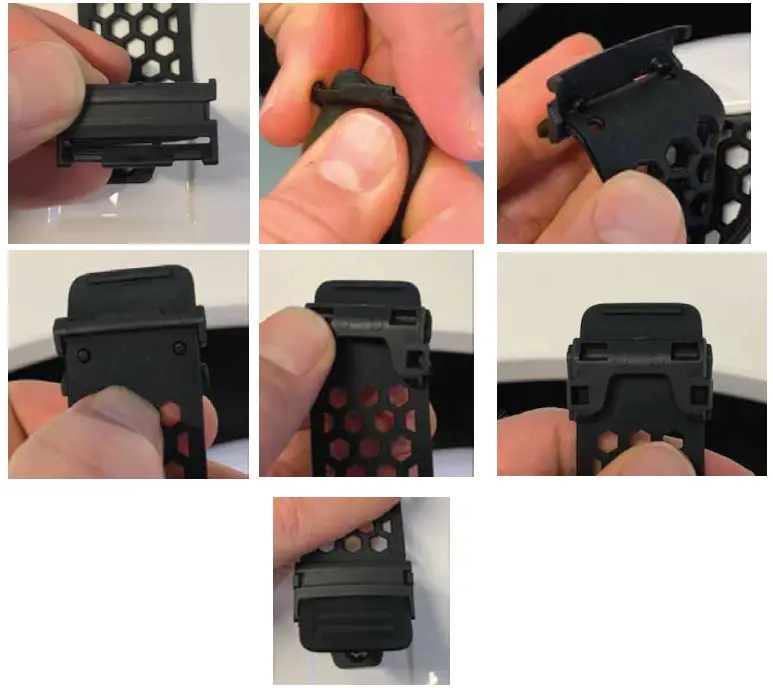

    Sweet Protection Trooper 2Vi Mips Helmet - overview 1

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
