New Features Guide

Version 2.00
Features added or changed as a result of firmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates avail-able for different products: https://fujifilm-x.com/support/downloadifirmware/
Contents
GFX 5OR firmware version 2.00 adds or updates the features listed below. For the latest manuals, visit the following website. http://fujffilm-dsc.com/en/manuall.

No	Description			Ver.
1	The camera now displays the color temperature selected via the color temperature option in the white balance menu.	10,12	1,2	2
2	The camera now displays an external power sup-ply icon when drawing power from an optional AC-15V AC power adapter.	10,12,	1,2	2
3	The maximum number of pictures that can be stored in a single folder has been increased from	85	3	2
4	CLASSIC Neg. and ETERNA/CINEMA options have been added to CI IMAGE QUALITY SETTING > FILM SIMULATION in the shooting menu.	90	4	2
5	A SMOOTH SKIN EFFECT item has been added to IMAGE QUALITY SETTING in the shooting menu.	91	5	2
6	An LOW LIGHT PRIORITY AF-S item has been added to AF/MF SETTING in the shooting menu.	102	5	2
7	Improved the performance of El AF/MF SETTING > FACE/EYE DETECTION SETTING in the shooting menu.	104	6	2
8	The SHOOTING SETTING > FOCUS BKT item in the shooting menu now offers a choice of MANUAL and AUTO focus bracketing options.	115	8	2
9	The procedure for rating pictures has changed. As a result, the content of the playback information displays has changed and a RATING item has been added to the playback menu.	130,131,145	10,11,12	2
10	The software that can be used with the CONNECTION SETTING > PC CONNECTION MODE option in the setup menu has changed.	187	13	2

Changes and Additions

Changes and additions are as follows.

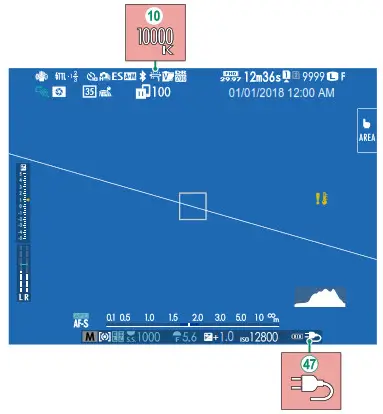

When a color temperature is selected for white balance (GFX 5OR Owner’s Manual 2:] 95), the chosen value now ap-pears in the display.
The camera now displays an external power supply icon when drawing power from an optional AC-15V AC power adapter.

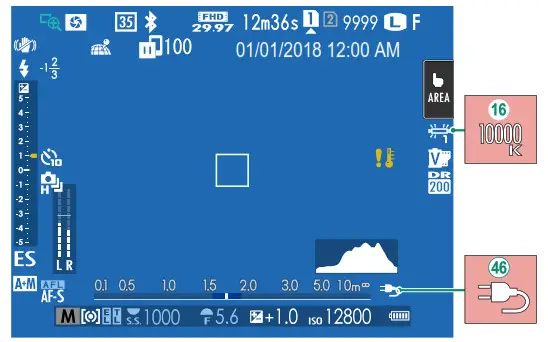

When a color temperature is selected for white balance (GFX 5OR Owner’s Manual95), the chosen value now appears in the display.
The camera now displays an external power supply icon when drawing power from an optional AC-15V AC power adapter.
Press the drive button and select CONTINUOUS. The camera will take pictures while the shutter button is pressed; shooting ends when the shutter button is released or the memory card is full.

If file numbering reaches 9999 before shooting is complete, the remaining pictures will be recorded to a new folder.
Shooting ends when the memory card is full; the camera will record all photos shot to that point. Burst shooting may not begin if the space available on the memory card is insufficient.
Frame rates may slow as more shots are taken.
Frame rate varies with the scene, shutter speed, sensitivity, and focus mode.
Depending on shooting conditions, frame rates may slow or the flash may not fire.
Recording times may increase during burst shooting.

Simulate the efferent kinds of film, including black and white (with or without color filters). Choose a palette according to your subject and creative intent.

Option	Description
PROVIA/STANDARD	Standard color reproduction. Suited to a wide range of subjects, from portraits to landscapes.
Yelvia/VIVID	A high-contrast palette of saturated colors, suited to nature photos.
ASTIA/SOFT	Enhances the range of hues available for skin tones in portraits while preserving the bright blues of daylight skies. Recommended for outdoor portrait photography.
CLASSIC CHROME	Soft color and enhanced shadow contrast for a calm look.
PRO N. Hi	Offers slightly more contrast than It PRO Neg. Std. Recommended for outdoor portrait photography.
PRO Neg. Std	A soft-toned palette. The range of hues available for skin tones is enhanced, making this a good choice for studio portrait photography.
CLASSIC Neg.	Enhanced color with hard tonality to increase image depth.
	Soft color and rich shadow tone suitable for film look movie.
ETERNA/CINEMA

ACROS’	Take black-and-white photos with rich gradation and outstanding sharpness.
MONOCHROME’	Take pictures in standard black and white.
SEPIA	Take pictures in sepia.

* Available with yellow (Ye), red (R), and green (G) filters, which deepen shades of gray corresponding to hues complementary to the selected color. The yellow (Ye) filter deepens purples and blues and the red (R) filter blues and greens. The green (G) filter deepens reds and browns, including skin tones, making it a good choice for portraits.
Smooth complexions.

Option	Description
STRONG	Choose for a strong effect
WEAK	hoose for a weak effect.
OFF	Turn the effect off.

SMOOTH SKIN EFFECT options have also been added to.

IMAGE QUALITY SETTING > EDIT/SAVE CUSTOM SETTING
(GFX SOR Owner’s Manual 99)
PLAY BACK MENU > RAW CONVERSION (
GFX SOR Owner’s Manual 137)
BUTTON/DIAL SETTING > EDIT/SAVE QUICK MENU
(GFX SOR Owner’s Manual 173, 195)
BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING
(GFX SOR Owner’s Manual 174, 198)

Selecting ON increases exposure times for low-light AF, allowing faster focus when lighting is poor.

Option
ON	OFF

Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that empha-size portrait subjects. You can also choose whether the camera detects and focuses on eyes when Intelligent Face Detection is on. Choose from the following options:

Option	Description
FACE OWEYE OFF	Intelligent Face Detection only.
FACE ON/EYE AUTO	The camera automatically chooses which eye to focus on when a face is detected.
FACE ON/RIGHT EYE PRIORITY	The camera focuses on the right eye of subjects detected using Intelligent Face Detection.
FACE ON/LEFT EYE PRIORITY	The camera focuses on the left eye of subjects detected using Intelligent Face Detection.
FACE-OFF/EYE OFF	Intelligent Face Detection and eye priority off.

If the subject moves as the shutter button is pressed, the face may not be in the area indicated by the green border when the picture is taken.
In some modes, the camera may set the exposure for the frame as a whole rather than the portrait subject.
The face selected by the camera is indicated by a green border.
If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders.
If the selected subject leaves the frame, the camera will wait a set time for its return and consequently, the green frame may sometimes appear in locations where no face is seen.
Depending on shooting conditions, face selection may be suspended at the close of burst shooting.
Faces can be detected with the camera in vertical or horizontal orientation.
If the camera is unable to detect the subject’s eyes because they are hidden by hair, glasses, or other objects, the camera will instead focus on faces.
Face/eye detection options can also be accessed via shortcuts.

Choose from AUTO and MANUAL focus bracketing modes.
• MANUAL: In MANUAL mode, you choose the following.

Option	Description
FRAMES	Choose the number of shots
STEP	Choose the amount of focus changes with each shot
INTERVAL	Choose the interval between shots.

Choose the interval between shots

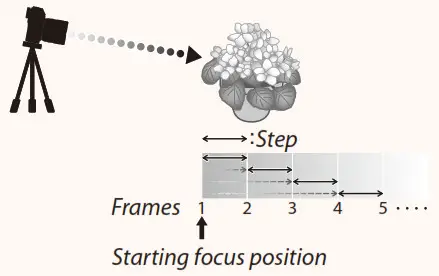

The relation between focus and the options chosen for FRAMES and
STEP is shown in the illustration

Focus proceeds from the starting position toward infinity.
Small STEP values translate to small changes in focus, larger values to larger changes.
Regardless of the option chosen for FRAMES, shooting ends when focusing reaches infinity.

.AUTO: In AUTO mode, the camera calculates FRAMES and STEP automatically.

Select A SHOOTING SETTING in the shooting menu, high- light FOCUS BKT, and press MENU/OK.
Select AUTO and choose an INTERVAL. The view through the lens will be displayed
Focus on the nearest end of the subject and press MENU/OK. The selected focus distance ap- pears as A on the focus distance indicator. The same focus range can be chosen by focusing on the farthest end of the subject first.

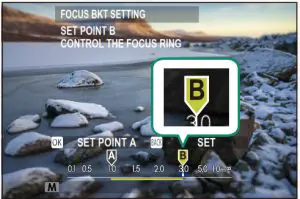

Focus on the farthest end of the subject and press DISP/BACK. The selected focus distance (B) and focus range (A to B) appear on the focus distance indicator.

Instead of pressing the DISP/BACK button, you can press MENU/OK and select A again.
Take photographs. The camera will calculate values for FRAMES and STEP automatically. The number of frames will appear in the display.

GFX 50R Owner’s Manual: 2.00 The Playback Displayc P 130 Ver.

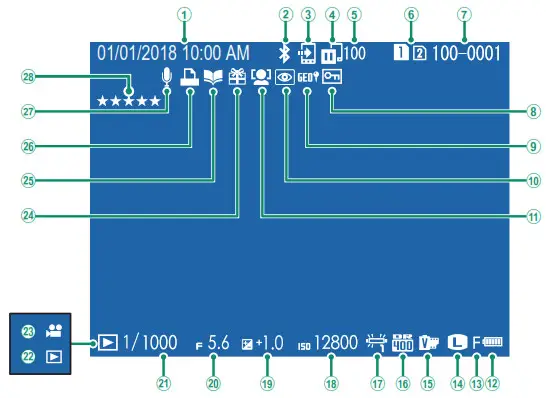

This section lists the indicators that may be displayed during playback.

For illustrative purposes, displays are shown with all indicators lit.

FUJIFILM GFX 50R Digital Camera - Play Back

Date and time
Bluetooth ON/OFF
Image transfer order
Image transfer status
Number of frames selected for upload
Card slot
Frame number
Protected image
Location data
Red-eye removal indicator
Face detection indicator
Battery level
Image quality
Image size

15. Film simulation
16. Dynamic range
17. White balance
18. Sensitivity
19. Exposure compensation
20. Aperture
21. Shutter speed
22. Playback mode indicator
23. Movie icon
24. Gift image
25. Photobook assist indicator
26. DPOF print indicator
27. Voice memo
28. Rating

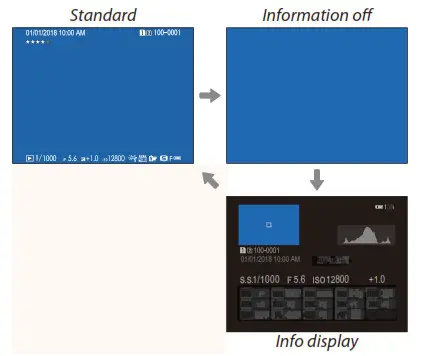

The DISP/BACK button controls the display of indicators during playback.

The Info Display
In the info display, you can press the focus stick (focus lever) up to cycle through a series of information and histogram displays.
Favorites: Rating Pictures
Pictures can be rated via the RATING item in the playback menu.
Rate pictures using stars.

Select RATING in the playback menu.
Rotate the front command dial to choose a picture and the rear command dial to choose a rating of from 0 to 5 stars(“”).

The focus stick (focus lever) can be used in place of the front com- mand dial to choose a picture.
The rating dialog can also be displayed by pressing the Fn3 button in single-frame, nine-frame, or hundred-frame playback.
Use touch controls to zoom in or out.

Adjust settings for connection to a computer.

Option	Description
USB CARD READER	Connecting the camera to a computer via USB automaticallyenables data transfer mode, allowing data to be copied to the computer. The camera functions normally when not connected.
USB TETHER SHOOTING AUTO	The camera can be controlled from a computer connected via USB. Photographs can be taken remotely and automat- ically downloaded to computers running Capture One, Adobe® Photoshop® Lightroom® + Tether Plugin, or FUJIFILM X Acquire. FUJIFILM X Acquire can also be used to save and load camera settings. The camera functions normally when not connected.
USB TETHER SHOOTING FIXED	As for USB TETHER SHOOTING AUTO, except that the camera remains in “tethered shooting” mode when the computer is not connected, allowing the computer to resume control when the connection is re-established after an acci- dental disconnection or other disruption. Note that at defaultsettings, pictures are not recorded to the memory card.
WIRELESS TETHER SHOOTING FIXED	Choose this option for wireless remote photography. Select a network usingCONNECTION SETTING > NETWORK SETTING.
USB RAW CONV./ BACKUP RESTORE	Connecting the camera to a computer via USB automatically enables USB RAW conversion/backup restore mode. The camera functions normally when not connected. USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the cam- era’s image processing engine to rapidly convert RAW files to high-quality JPEG images. BACKUP RESTORE (requires FUJIFILM X Acquire): Save and load camera settings. Reconfigure the camera in an instant or share settings with other cameras of the same type.

POWER MANAGEMENT > AUTO POWER OFF settings also apply during tethered shooting. To prevent the camera turning off automatically, select OFF for AUTO POWER OFF.

Visit the websites below to learn more about or download the following computer software:
