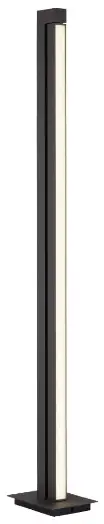

421-95-01 PURE-LINES LED Floor Lamp
Instruction Manual
836633 – PURE-LINES
421-95-01 PURE-LINES LED Floor Lamp

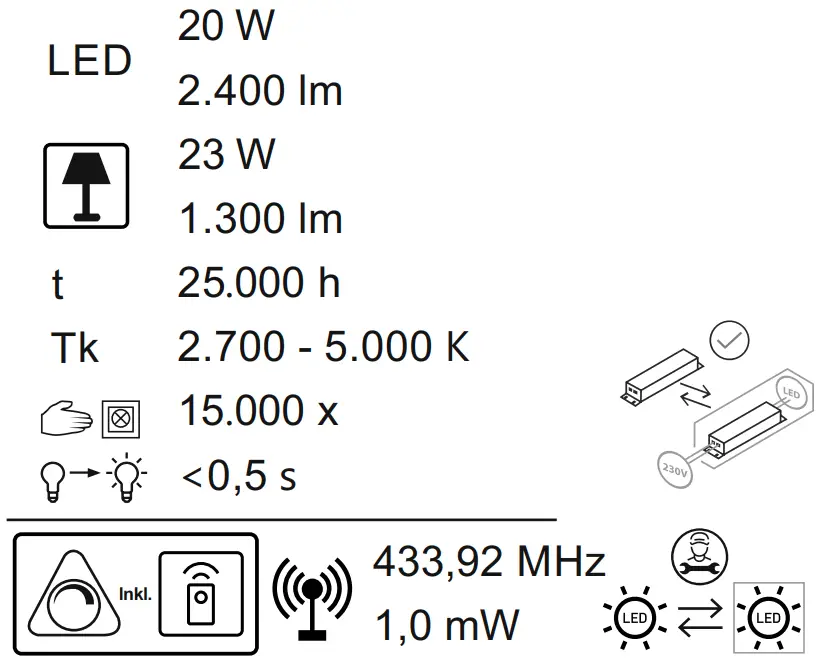

This product contains a light source of energy efficiency class <E>
| 230V / 50Hz~ | |
| LED | 1x LED-Board 24V DC / 20 W |
 | |
 |  |

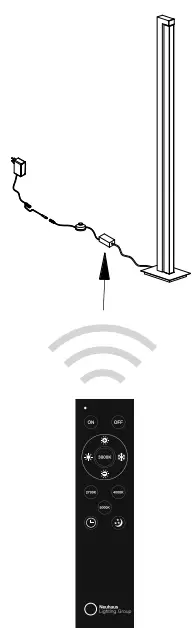

Assigning the remote control to the light
Switch the light on via the wall switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be operated by the remote control.
!!! A remote control can control an unlimited number of lights.
A light can be operated by one remote control !!!

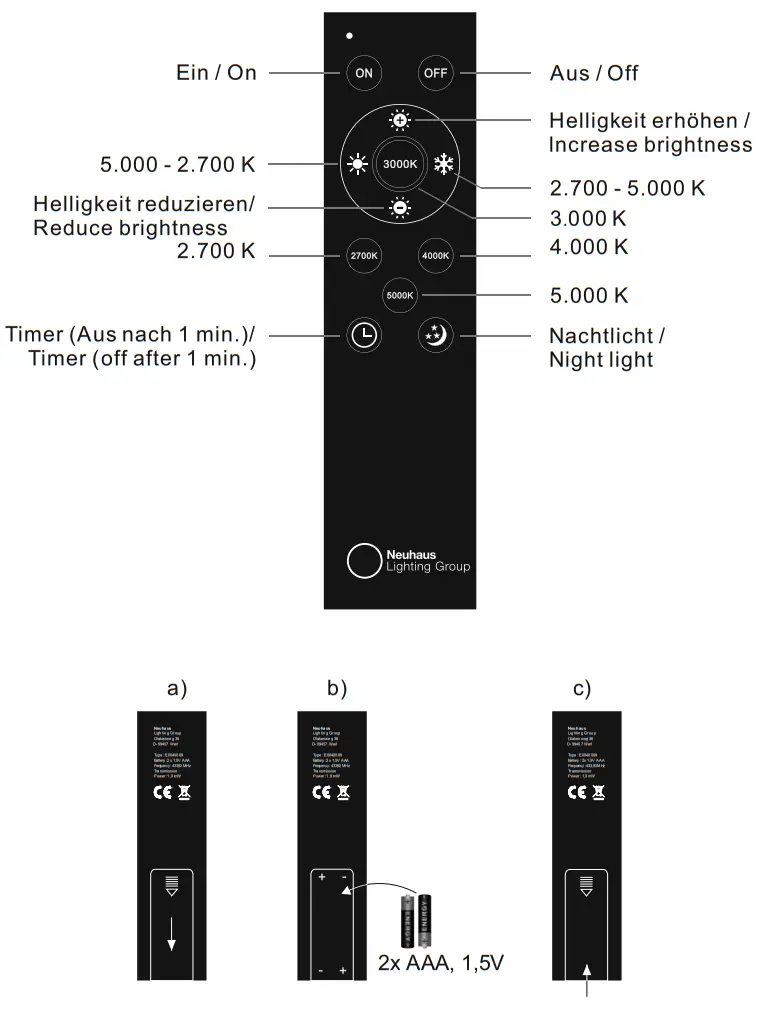

| Description | Operation data |
| Battery | 2x AAA, 1,5V |
| Transmission | 433,92 MHz |
| Transmitting | 1,0 mW |
| No-load current | 0,001 mA |
| Operating current | max.15 mA |
| Range of the remote control | 6-8 m |
Paul Neuhaus GmbH
Olakenweg 36 – D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.paul-neuhaus.de
