Paul Neuhaus 836633 Pure-Lines LED Floor Lamp Instruction

Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-product

This product contains a light source of energy efficiency class

INSTRUCTIONS

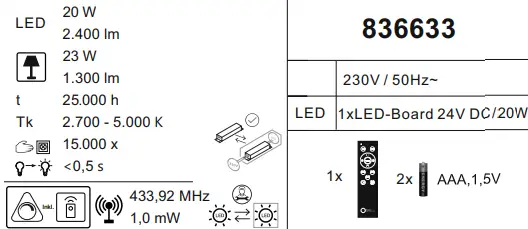

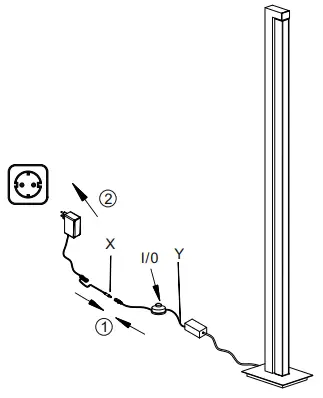

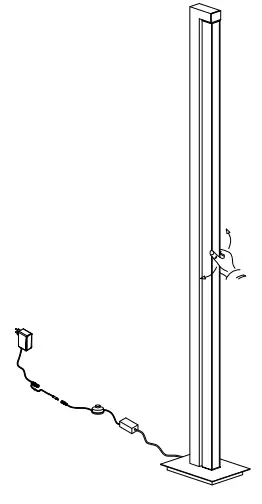

Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-1Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-2Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-3

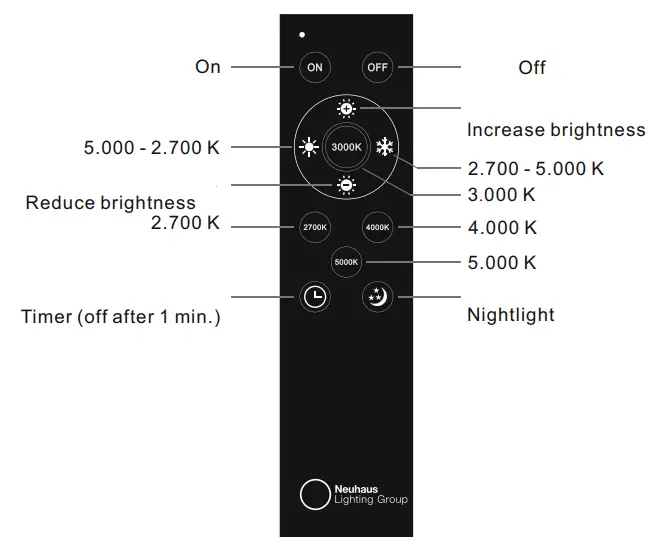

REMOTE CONTROL

Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-4

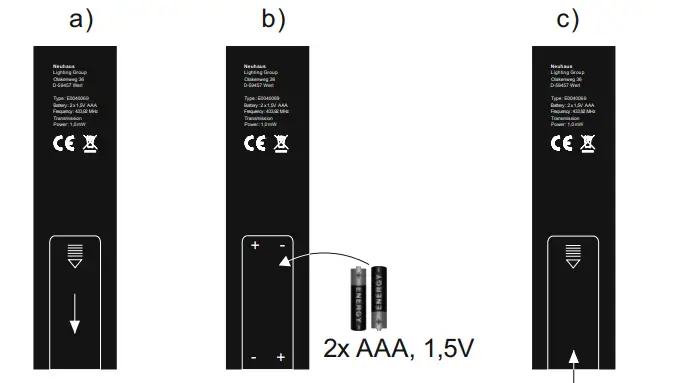

Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-5

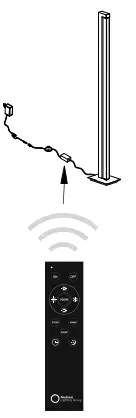

Assigning the remote control to the light

Switch the light on via the foot switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be operated by the remote control.
!!! A remote control can control an unlimited number of lights.
A light can be operated by one remote control !!!

Beschreibung / DescriptionOperation data
 Battery2x AAA, 1,5V
 Transmission frequenzcy433,92 MHz
Transmitting power1,0 mW
No-load current0,001 mA
Operating currentmax.15 mA
Range of the remote control6-8 m

Paul-Neuhaus-836633-Pure-Lines-LED-Floor-Lamp-Instruction-fig-6
