Paul Neuhaus 421-95 Q-TIMBER LED Floor Lamp

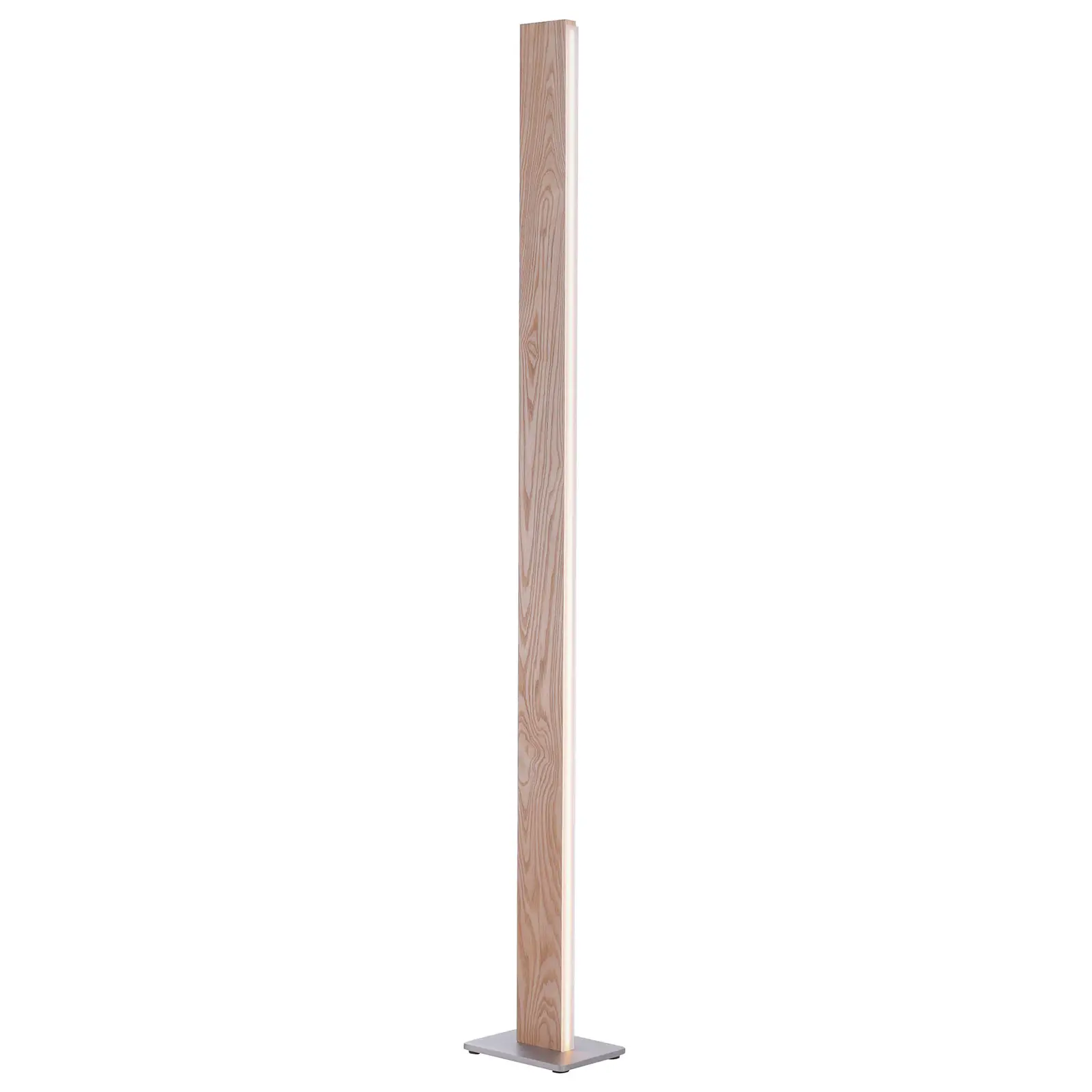

Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-PRODUCT-IMAGEThis product contains a light source of energy efficiency class< E>

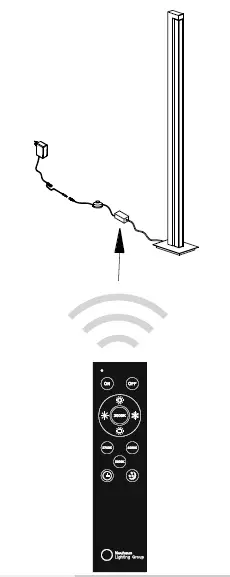

Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-01Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-02Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-03Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-04Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-05Assigning the remote control to the light
Switch the light on via the wall switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be
operated by the remote control.
!!! A remote control can control an unlimited number of lights.
A light can be operated by one remote control !!!

DescriptionOperation data

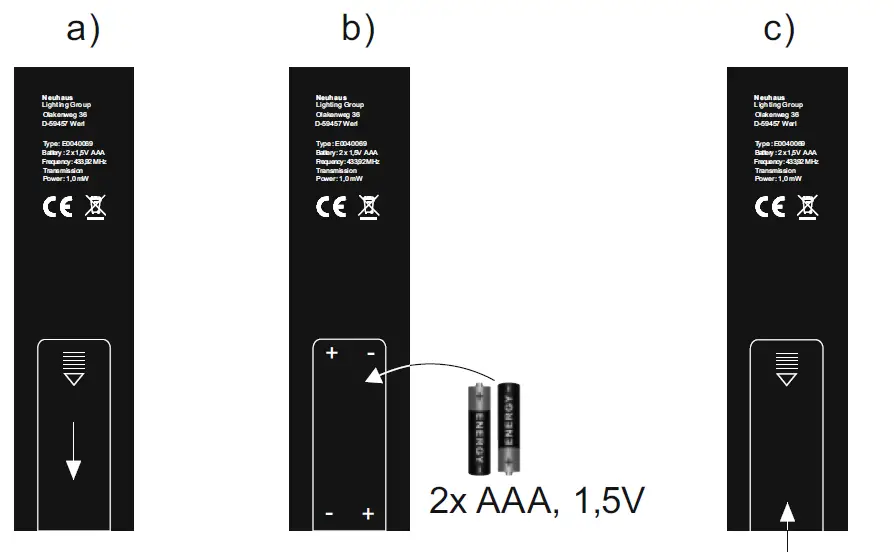

Battery2x AAA, 1,5V
Transmission frequency433,92 MHz
Transmitting power1,0 mW
No-load current0,001 mA
Operating currentmax.15 mA
Range of the remote control6-8 m

Paul-Neuhaus-421-95-Q-TIMBER-LED-Floor-Lamp-06

Paul Neuhaus GmbH
Olakenweg 36 D-59457 Werl
g +49(0)2922 9721 9290
[email protected]
www.paul-neuhaus.de
