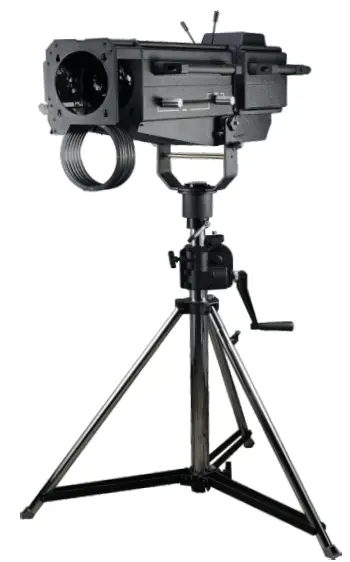

GLORY OLLOWSPOTF II™
XP-1000 FS II
User Manual
FEATURES
- Manual focus
- Zoom range: 5°-20°
- CRI＞90
- 7 independent color temperature filters
- Smooth dimming from 0-100%
- 5-100% iris
- Tripod and color gel frame as standard
- Flicker-free management
- Dust-proof and oil-proof design
TECHNICAL SPECIFICATIONS
Specificaons
- Light Source: Osram Lot-it! 1000/PS Brilliant
- Beam Angle: 5°-20°
Construcon
- Display: LCD display
- Power In/Out: Direct Power Cord out
- Protecon Rang: IP20
Electrical and Physical
- Power Voltage Range: AC 230V, 50/60Hz
- Power Consumpon: 1,181 W
- Dimensions: 1,032 x 418 x 337 mm(40.6″ x 16.5″ x 13.2″)
- Weight: 43.2 kg (95.2 lbs)(Without the tripod) 60 kg (132.2 lbs)(With the tripod)

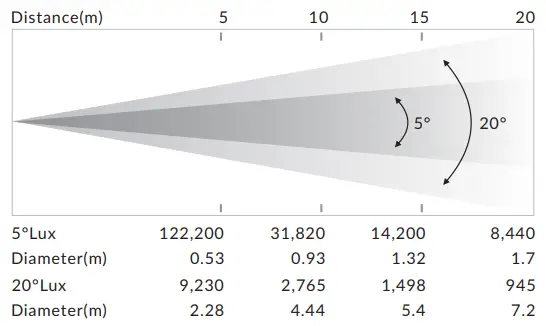

PHOTOMETRICS DIAGRAM

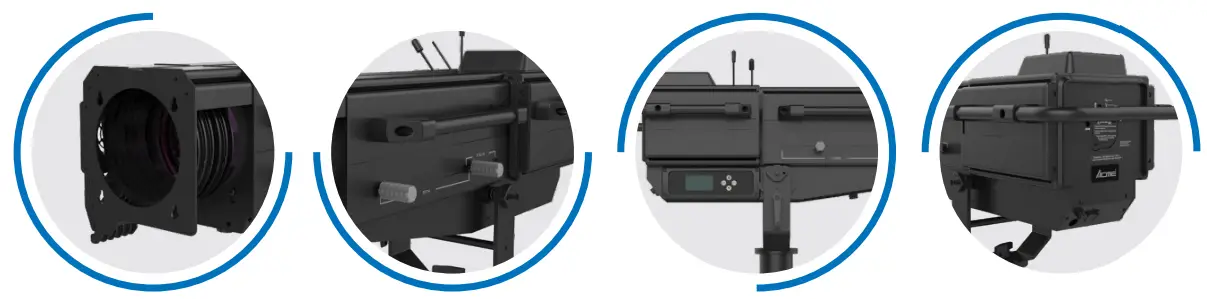

FUNCTIONAL EFFECT

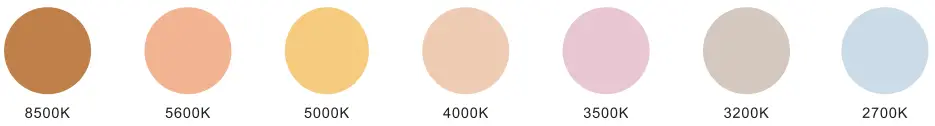

Color Temperature Wheel
Color Frame

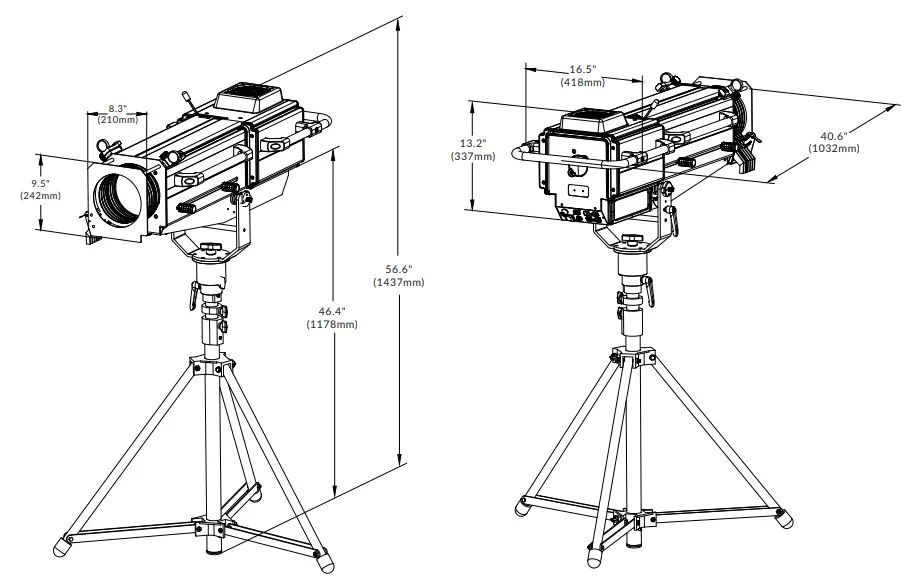

DIMENSIONS mm (in.)
