ACME BAR 300 DOTCHAIN 300 User

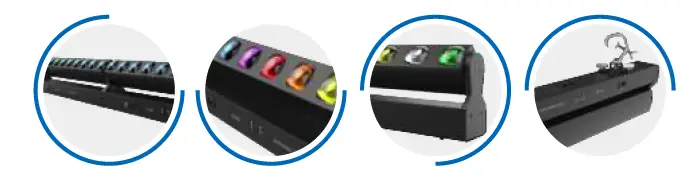

FEATURES
- Individual LED pixel control, equally-spaced LEDs for joining multiple units
- Smooth dimming from 0-100%
- Outstanding strobe effect with variable speed
TECHNICAL SPECIFICATIONS
- Light source: 10x 20W RGBW LED
- Beam angle: 2°
Control
- Control channels: 47/12
- Protocols: DMX512, RDM
- Upgrade the firmware via DMX link
PAN & TILT
- Tilt movement: 220°
Construction
- Display: OLED display
- Data in/out: 3-pin or 5-pin XLR
- PPower in/out: Power Connector in/out
Electrical and Physical
- Input voltage range: 100-240V~ 50/60Hz
- Power consumption: 180 W
- Dimensions：1000 x 117 x 233mm (39.4″ x 4.6″ x 9.2″)
- Carton Specification: 1095 x 117 x 233mm (43.1″ x 12.4″ x 9.1″)
- Weight：11kg (24.3 lbs) 13kg (28.7lbs)(One-pack per carton
PHOTOMETRICS DIAGRAM
( PHOTOMETRICS OF SINGLE LED ）
LIGHT QUALITY PARAMETER

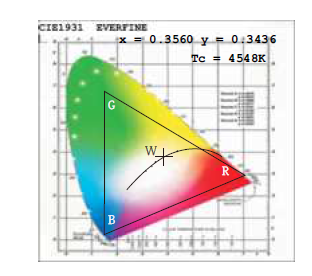

CIE1931 CHROMATICITY COORDINATES

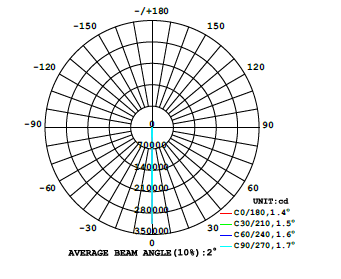

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

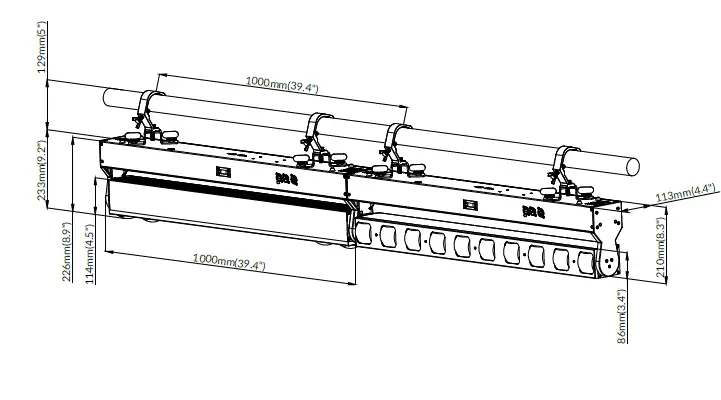

DIMENSIONS
mm (in.)
