www.nextec.pl

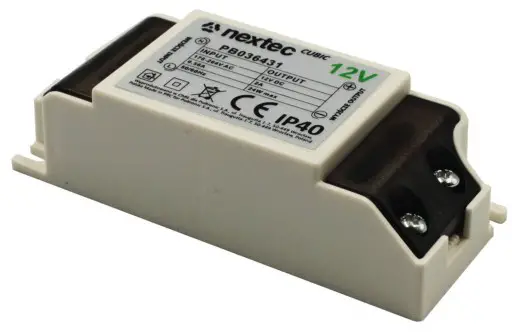

CUBIC POWER SUPPLY FOR INSTALLATION 36W
IP40
ZASILACZ Mounting Power Supply Cubic 36w 12V
High efficiency, long service life
Short circuit protection
Used for LED lighting
In line with world lighting safety regulations
| Product code | PB036448 | |
| EAN code | 5.90829E+12 | |
| IP | IP40 | |
| INPUT | Voltage range | 176-264V AC |
| Frequency range | 50-60 Hz | |
| Effi ciency | 82% | |
| Power factor | PF>0,5 | |
| AC current | 0,3 A | |
| Inrush current | Cold Start 60A/230VAC | |
| OUTPUT | DC voltage | 12V DC |
| Rated current | 3:00 AM | |
| Current range | 0~3A | |
| Rated power | 36W | |
| Ripple & noise(max) | 200mV | |
| Voltage tolerance | ||
| PROTECTION | Short circuit | The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed. |
| Overload | ||
| Over temperature | Shut down o/p voltage | |
| ENVIRONMENT | Working temp. | -20~+50°C |
| Storage temperature | -40~+80°C | |
| SAFETY | Safety standards | CE, RoHS, IP67 |
| EN IEC 55015:2019+A11:2020 EN 61547:2009, EN IEC 61000-3-2:2019+A1:2021 EN 61000-3- :2013+A1:2019+A2:2021 | ||
| Weight | 60 g |
| Dimension (L x W x H) | 88 x 39 x 21 mm |
IP40 36W
