Shad S0sl10rv Backrest Fitting Instruction Manual

SILENCE S01’20
KIT RESPALDO S0SL10RV

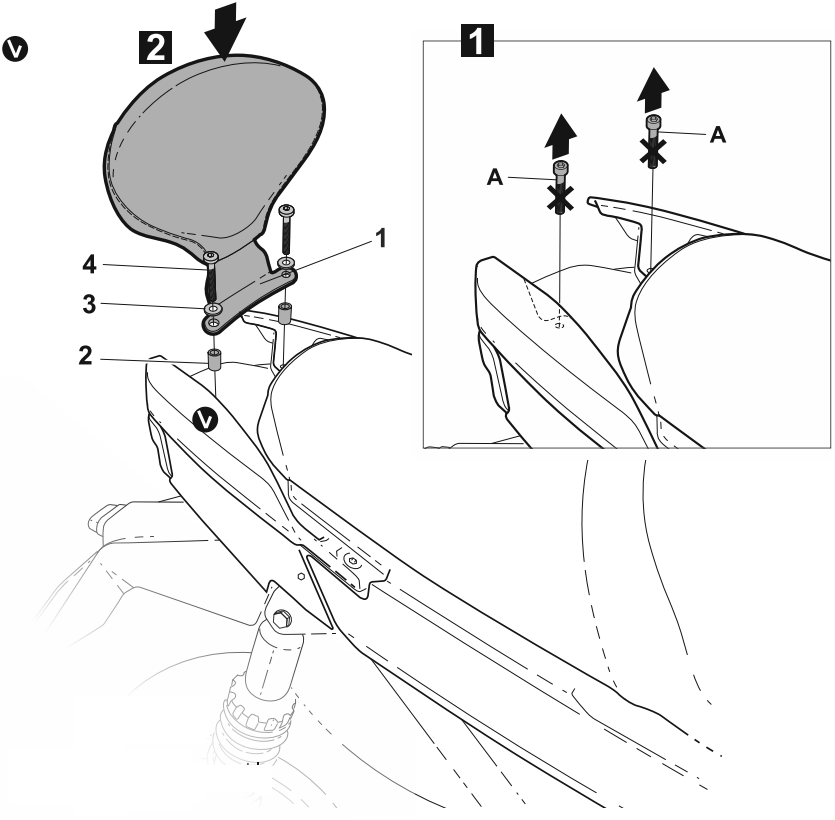

S0SL10RV Backrest Fitting

1 262961 x 1	2 260213 x 2 ∅16 ∅9 X 12	3 303045 x 2 ∅8	4 304039 x 2 M8x40 DIN 7380

NOT INCLUDED
WARNING!
To complete the set, remember to purchase the backrest with your preferred color. Do not fully tighten Do not fully tighten the screws until it is ensured that the KIT is correctly attached and aligned.

WWW.SHAD.ES
REF. 500479 Edition la
IMPORTANT: Based on European models.
For compatibility with models in other continen check www.shad.es
