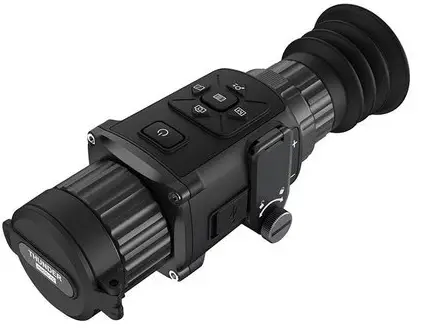

HIKMICRO HM-TR13-35XF Thermal Image Scope
HikMicro HM-TR13-35XF/CW-TH35C Thermal Image Scope has 384 × 288 thermal detector and 748 × 561 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Key Features
- 384 × 288 thermal resolution, high sensitivity detector, NETD less than 35 mk (25 °C,F#=1.0)
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 748 × 561 resolution 0.39-inch OLED display
- Supports distance measurement, and hotspot function
- Supports video recording and snapshot, built-in EMMC (16 GB)
- Supports digital zoom and cursor function, palettes of color adjustable
- Up to 4.5 hours continuous working
Specification
| Thermal Module | |
| Image Sensor | Uncooled Focal Plane Arrays |
| Pixel Interval | 17 μm |
| Max. Resolution | 384 × 288 |
| Response Waveband | 8 μm to 14 μm |
| NETD | less than 35 mk (25 °C,F#=1.0) |
| Lens (Focal Length) | 35 mm |
| IFOV | 0.49 mrad |
| Field of View | 10.0° × 8° |
| F Number | F1.0 |
| Frame Rate | 50 Hz |
| Magnification | 1X |
| Image Display | |
| Monitor | 0.39-inch, OLED, 748 × 561 |
| Palettes | Black hot, white hot, red hot, fusion |
| Exit Pupil | 22 mm |
| Eye Relief | 10 mm |
| Observation Distance | Max. 1235 m |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| System | |
| Digital Zoom | 1X, 2X, 4X, 8X |
| Cursor | Yes |
| Hotspot | Yes |
| Distance Measurement | Yes |
| Scene Mode | Jungle, Recognition |
| Standby mode | Yes |
| Video Recording | Yes |
| Picture Snapshot | Yes |
| DPC | Yes |
| PIP | Yes |
| Uniformity Correction | Auto, Manual, External Correction |
| Storage | Built-in EMMC (16 GB) |
| Power Supply | |
| Battery | Replaceable Applicable type: CR123A, RCR123A |
| Battery Operating Time | 4.5 h (25 °C, with hotspot off) 4 h (25 °C, with hotspot on) |
| Anti-reverse battery connection | Yes |
| Overvoltage Protection | Yes |
| Battery Capacity Display | Yes |
| Type-C Power Supply | 5 VDC, 2 A Supports external power supply |
| General | |
| Port | Type-C |
| Working Temperature | -20 °C to 55 °C (-4 °F to 131°F) |
| Protection Level | IPX7 |
| Shock Absorption Design | Yes |
| Vibration & Shock | 750 g/1 ms |
| Transfer Ring Type | 50-59 mm |
| Dimension (L × W × H) | 153.2 mm × 62.5 mm × 59.2 mm (6.03″ × 2.46″ × 2.33″) |
| Weight | 0.42 kg (0.93 lb) without eyepiece and batteries |
Available Model
HM-TR13-35XF/CW-TH35C

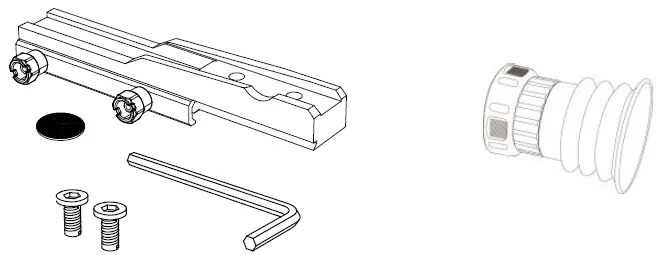

Accessory
Optional
- Rail System Rail (×1) Tightening Plate (×1) Screws (×2) Wrench (×1)
- Eyepiece of Scope (×1)

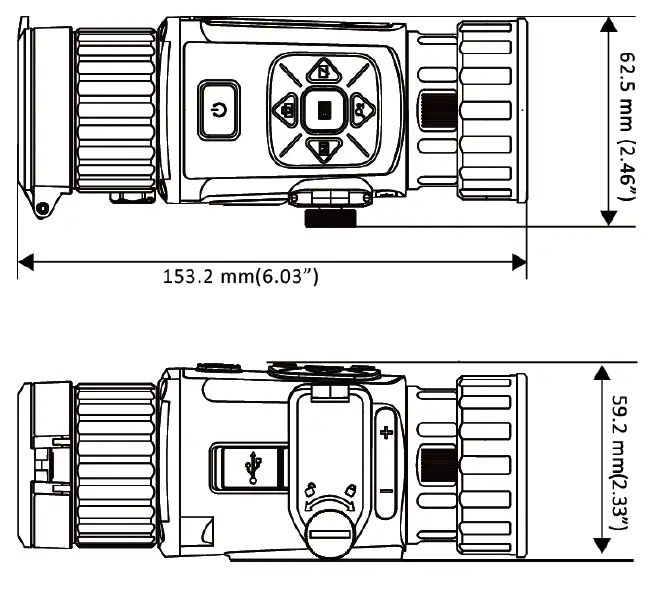

Dimension
