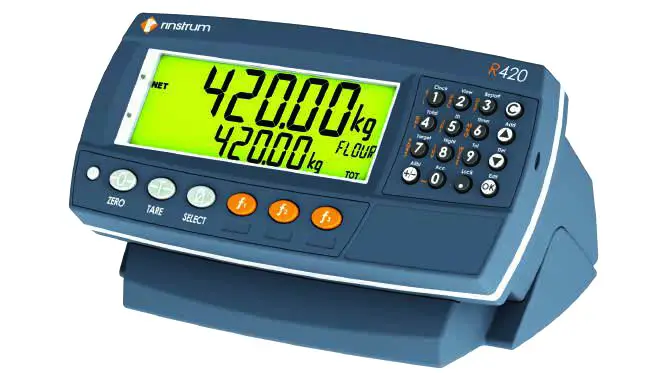

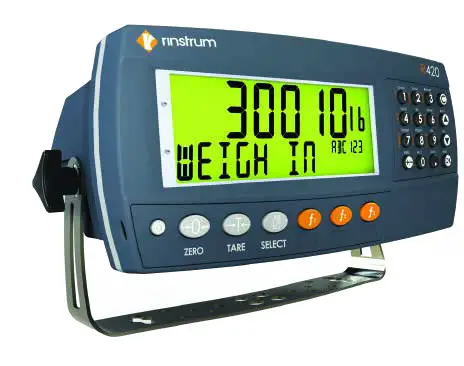

Rinstrum R420 ABS Indicators Panel Mount and Full Housing
The R400 series of indicators is designed with both the installer and operator in mind and covers a wide range of applications. The indicators are engineered and built to last with reliability being foremost. The modular design allows for the installation to be commissioned with only the components required, saving time and money.
Features
- AC and DC options
- LCD with 4 alpha-numeric displays and LED backlighting
- OIML, NMI, and NTEP trade approved
- Built-in RS232/RS485
- IP65-rated ABS housing
- Ethernet support (optional)
- Robust precise analogue output module
- Versatile application software
Superior diagnostics and support
- Range of diagnostic tools and features
- Hardware configuration report: summarizes how the indicator hardware is
- set up, providing a record for maintenance purposes or fault finding
- Force Output and Test Input functions: allow the installer to specifically
- test I/O to assist in site setup
- Ability to swap modules in and out without recalibration of the indicator
View400 Fast Efficient Indicator setup via a PC
View400 displays the complete menu structure of the indicator on the PC with convenient drop-down menus for setting selection.
- Enter custom print strings using the PC
- Set up the indicator and save the configuration and calibration for maintenance purposes or load the RIS file onto multiple indicators

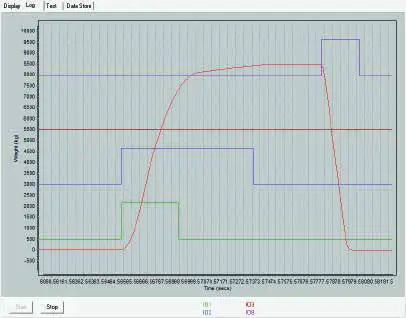

- Create a real-time graph from the log that is ideal for diagnostics
Save400 – Reading and writing Indicator setup
Save400 is a software tool that reads and writes R400 indicator setup and configuration. It allows for a setup to be exported for update and then be reimported.

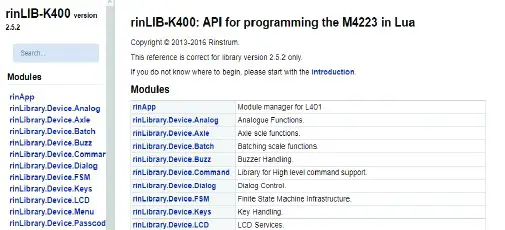

Lua Programmability
- Embedded Lua scripting with accessory module
- Enhance functionality by installing a range of application packages
- Open-source library and comprehensive API enable you to write your own applications or engage Rinstrum to write them for you through our Lua MAX programme
- Use the embeded web server to create browser-based user interfaces
Rugged Load Cell Input
Designed to take 16×350 ohm load cells @0.25uV/D; providing flexibility and reducing the need for summing hardware, simplifying the installation and saving money. The load cell input is protected with onboard transorbs to limit damage from external voltage surges.

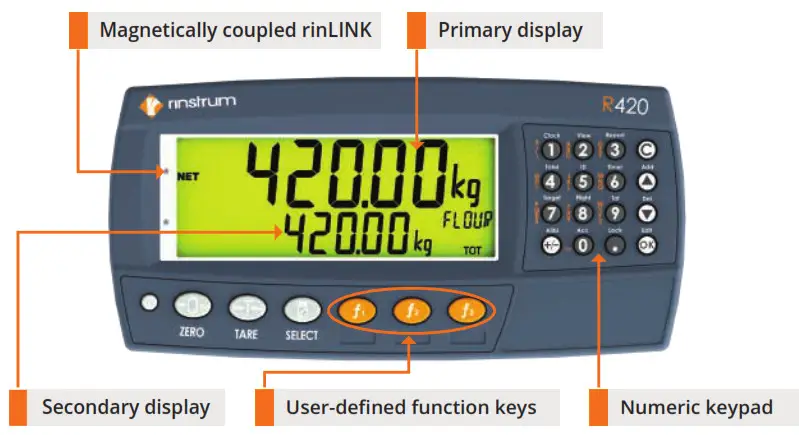

rinLINK for establishing a temporary connection to a PC
The rinLINK provides an isolated optical serial connection directly on the front of the indicator. It is magnetically coupled for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
The rinLINK can be used to download new firmware or to provide the connection to the PC running Viewer for indicator configuration.

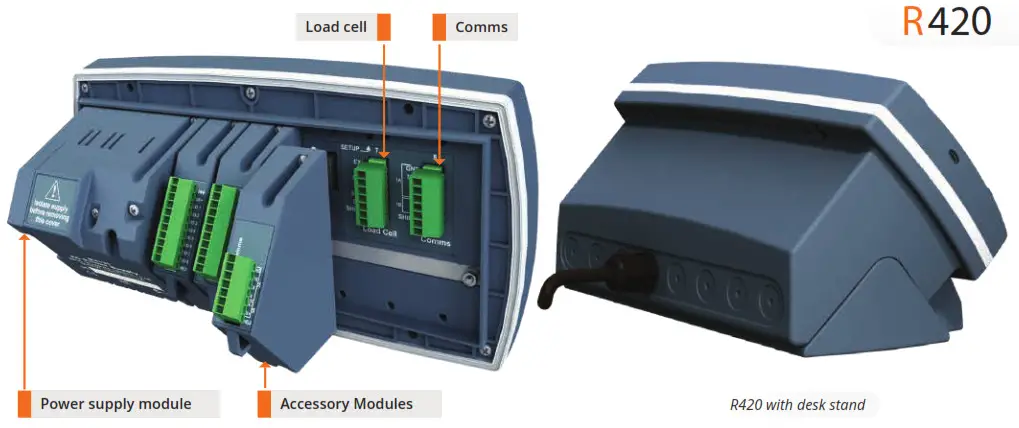

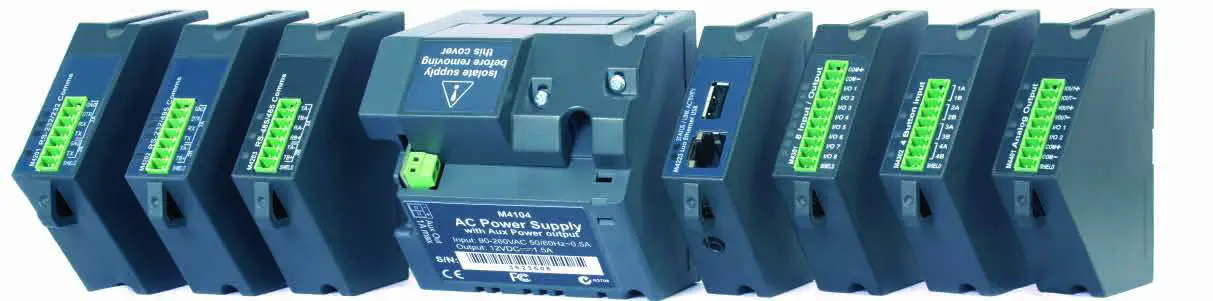

| RS232/ RS232 Module | RS232/RS485 Module | RS485/RS485 Module | AC Module | Lua Module | I/O Module | Button Module | Analogue Output | Data Storage Device Module |
| • Electrically isolated RS232 serial communication • Status LEDs | • Electrically isolated serial communication • Status LEDs | • Electrically isolated RS485 networking • Status LEDs | • 110-240 VAC in • 12 VDC out | • Lua programmability • Ethernet Port • USB Host Port • Telnet/SSH remote access | • 8 I/O Configure as input or output • Electrically isolated • Status LEDs • Outputs – high current DC • Active high I/O | • 4 voltage-free inputs | • 4-20mA or 0-10V analogue output • Electrically isolated • Fast 400Hz update • 2 digital I/O | • Nonvolatile alibi memory storage (6M bytes) • Compatible with later versions of software |
…now that’s smart weighing.

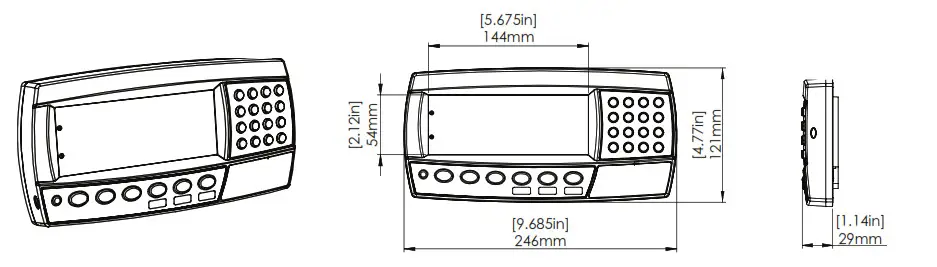

Panel Mount

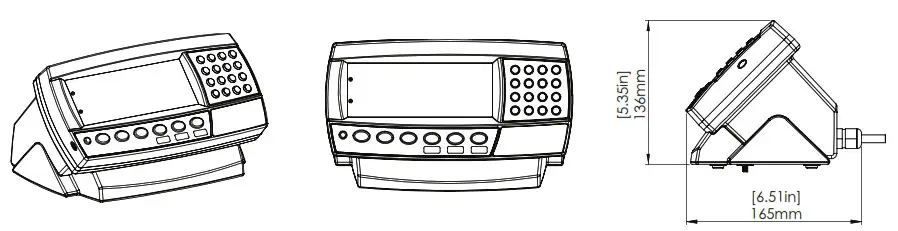

Desk Stand

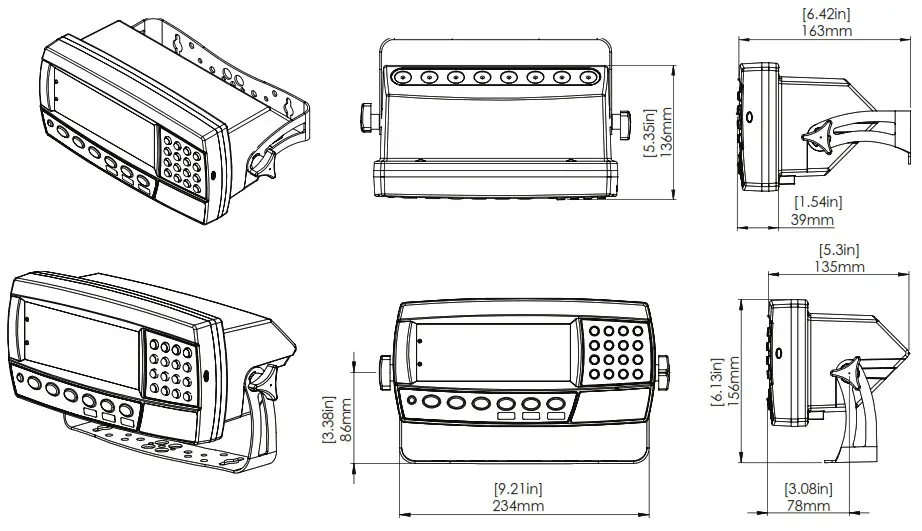

Post Mount/Wall Mount
