realme LOGO

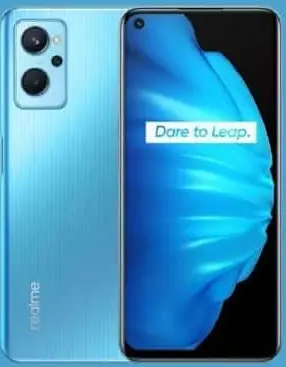

realme RMX3388 9 Smartphonerealme RMX3388 9 Smartphone PRODUCT

Greetings from realme Mobile

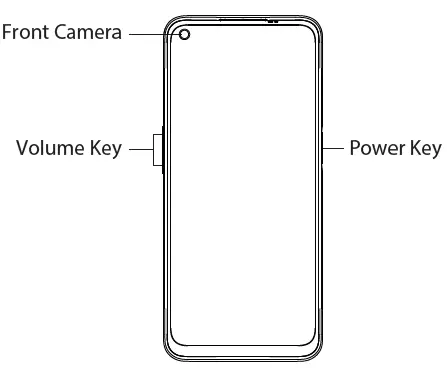

This guide will show you how to use the phone and its important functions. You may also visit realme official website to get more information about the phone.realme RMX3388 9 Smartphone FIG-1

Warning:

  • Do not place the phone or battery near or inside the heating equipment, cooking equipment, high-pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery from overheating which may lead to an explosion.
  • The original charger, data cable, and battery shall be used. Unapproved chargers, data cables, or batteries that are not certified by the manufacturer may result in electric shock, re, explosion, or other hazards
  • When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperatures ranging from 5°C~35°C.
  • Back cover can’t be removed

How to reboot the phone:
Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone.
How to transfer contents from an old phone to a new phone
You can quickly transfer contents such as photos, videos, music, contacts, messages, and apps from an old phone to a new phone via realme Clone Phone.

  • 1 Scan the QR code below using the old phone to install “Clone Phone”; on the new phone, launch “Clone Phone” directly.realme RMX3388 9 Smartphone FIG-2
  • 2 Follow the prompts on the screen to complete the data transfer.

Standard accessories

You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case.

Specification

Product

RMX3388

Main screen parameter

16.5cm(6.5”)

Dimension

162.5×74.8×8.5(mm)

Battery4890mAh/18.92Wh(Min)

5000mAh/19.35Wh(Typ)

Camera16Megapixels Front 48Megapixels+2Megapixels

+2Megapixels Rear

Operating temperature0C-35C
sar valuesce sar

<2.0W/kg(Head)

<2.0W/kg(Body)

Radio Waves Speci cations
RadioFrequencyMax. Output Power


GSM

850MHz33.3dBm
900MHz33.8dBm
1800MHz/1900MHz30.3dBm
WCDMABands 1/2/423.8dBm
Bands 5/6/8/1924.3dBm


LTE FDD

Bands 1/2/3/4/6623.8dBm
Bands 5/8/12/17/18/19/20/26/2824.3dBm
Band 723.5dBm
LTE TDDBands 38/39/40/4123.8dBm


5G NR

n1/n3/n38/n40/n41/n77/n7823.8dBm
n723.5dBm
n5/n8/n20/n2824.3dBm
Bluetooth2.4-2.4835GHz11.5dBm(EIRP)
2.4G Wi-Fi2.4-2.4835GHz17dBm(EIRP)
5G Wi-Fi5.15-5.35GHz; 5.47-5.725GHz16.5dBm(EIRP)
5.725-5.85GHz13dBm(EIRP)
NFC13.56MHz42dBuA/m @10m

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
