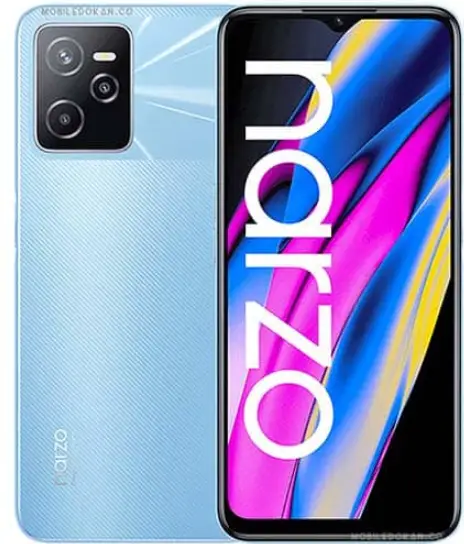

realme RMX3516 Smartphone
Greetings from realme mobile
This guide briefly show you how to use the phone and its important functions. For more and detailed information of the phone and user guidance, please visit: www.realme.com/eu/support.
Warning
Do not place the phone or battery near or inside heating equipment, cooking equipment’s, high pressure vessels (such as microwave ovens, induction cooker, electric oven, heater, pressure cooker, water heater, gas stove, etc.) to prevent the battery overheating which may lead to an explosion.
The original charger, data cable and battery shall be used. Unapproved chargers, data cables, or batteries that are not certified by the manufacturer may result in electric shock, fire, explosion, or other hazards.
Back cover can’t be removed.
When charging, please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with temperature ranging from 5°C~35°C.
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the realme boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use realme Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If you have an old Android phone, first scan the QR code below, then download and install Clone Phone, next open Clone Phone on both the new and old phones, and follow the on-screen instructions to complete the operation
https://i.clonephone.coloros.com/download - If you have an old iPhone, open Clone Phone on the new phone directly, and follow on-screen instructions to sign in to iCloud account and sync the files.
Standard accessories
1 Phone, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool.
SPECIFICATION
| RMX3516 | ||
| 16.7 cm(6.6”) | ||
| 164.4×75.6×8.1(mm) | ||
| 4890mAh/18.92Wh(Min) 5000mAh/19.35Wh(Typ) | ||
| 8 Megapixels Front 50 Megapixels+2 Megapixels +0.3 Megapixels Rear | ||
| 0.910W/kg(Head) 1.274W/kg(Body) 2.516W/kg(Limbs) | ||
Note: The SAR values above are the highest values reported for this device
| Radio Waves Speci cations | ||
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz/900MHz | 33.5dBm |
| 1800MHz | 31dBm | |
| 1900MHz | 30.5dBm | |
| WCDMA | Bands 1/5/8 | 24.5dBm |
|
LTE FDD | Bands 1/3 | 24dBm |
| Bands 5/8/28 | 24.5dBm | |
| Band 7 | 24dBm | |
| Band 20 | 25dBm | |
| LTE TDD | Bands 38/40/41 | 24dBm |
| Bluetooth | 2.4-2.4835GHz | 14dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 20dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz ; 5.47-5.725GHz | 20dBm(EIRP) |
| 5.725-5.85GHz | 14dBm(EIRP) | |
