Instruction Manual
Garden lamp
incl.4xLED QL7001197
4x120lm Lamp
4x3W
AC12V~ 50Hz 650mA
3000K
CRI>80
30000h
15000 ON/OFF

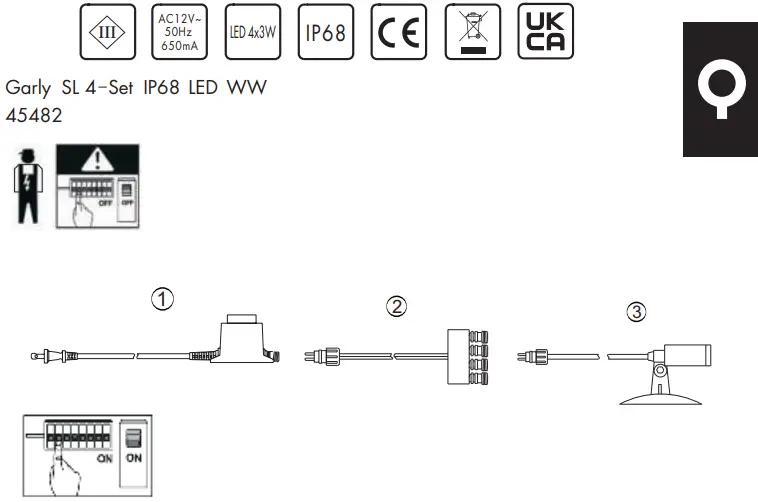

Garly SL 4-Set IP68 LED WW
12W LED
incl. LED QL7001197
AC12V~ 50Hz
This product contains a light source of energy efficiency class G

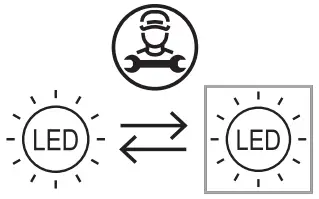

Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
Safety Instruction
Please study the instruction manual and below information carefully before installing or using this product. Please keep this user manual for further reference
- The luminaires may only be installed by authorized and qualified technicians according the valid regulations for electrical installation.
- Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come into contact with any areas of the terminal connections or voltage control parts.
- The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
- Exterior lighting must not be installed during rain.
- Take account of the minimal separation distance from other objects and the room required around the fitting.
- If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
- Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
- Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
- Take account of all available technical information.

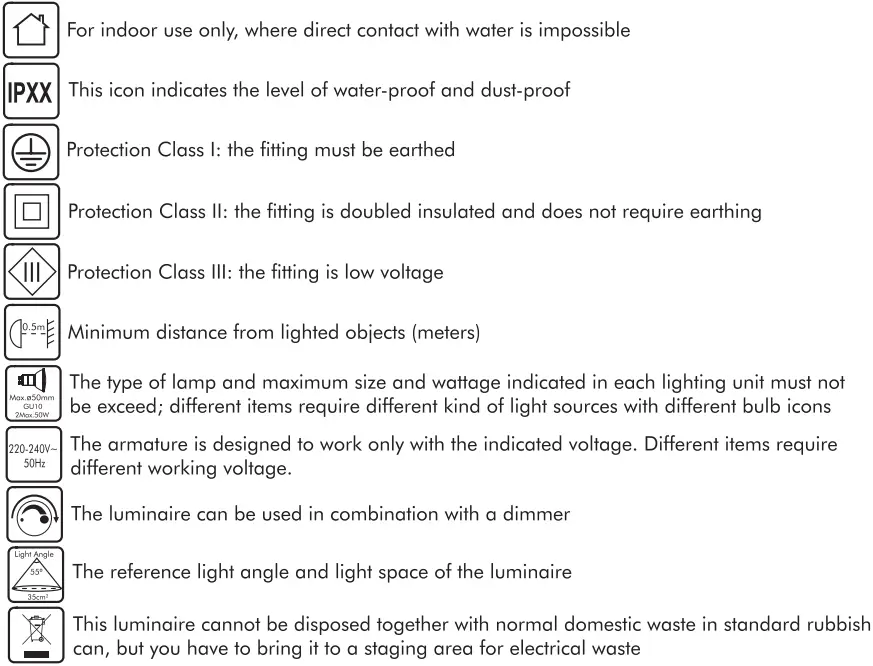

- Meaning of symbols:

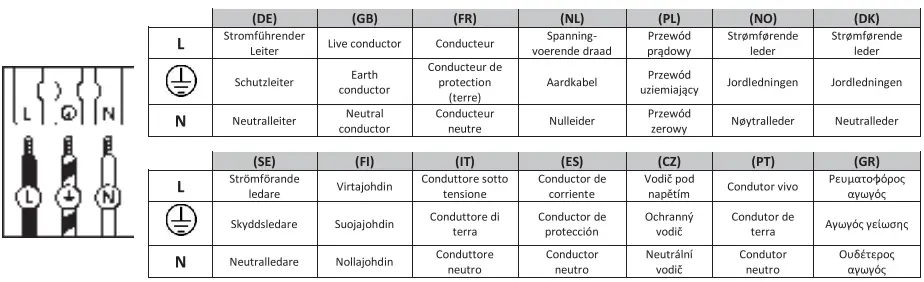

- Take note of the symbols when connecting wires:
