COOLMUSIC C-DI01 Insane Distortion Guitar Bass User Manual

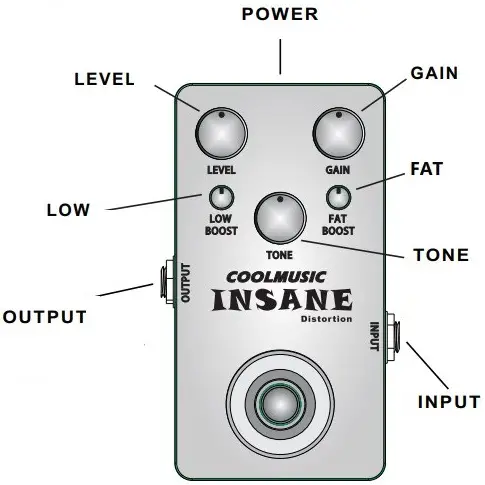

Product Overview
- POWER:
This jack should use a 9V effect adapter (internal negative external positive) to power the effect - LEVEL:
This knob is used to adjust the volume of the effect sound, and the corresponding effect volume can be adjusted by the knob. - LOW:
This knob controls the boost or attenuation of the low frequency signal of the effector. - OUTPUT:
Connect your amplifier using a 1/4″ phone jack here. - GAIN:
This knob is used to adjust the distortion gain of the effect and keep the tone of the guitar. - FAT:
This knob controls the boost or attenuation of the mid frequency signal of the effecto - TONE:
This knob controls the tone of the output signal. Turn clockwise to increase treble, and turn counterclockwise to decrease treble. - INPUT:
Connect your instrument using a 1/4″ phone jack here.
Weight: 200g (Bare metal).
Dimension: 115mm(L) * 66mm(W) * 35mm(H).
