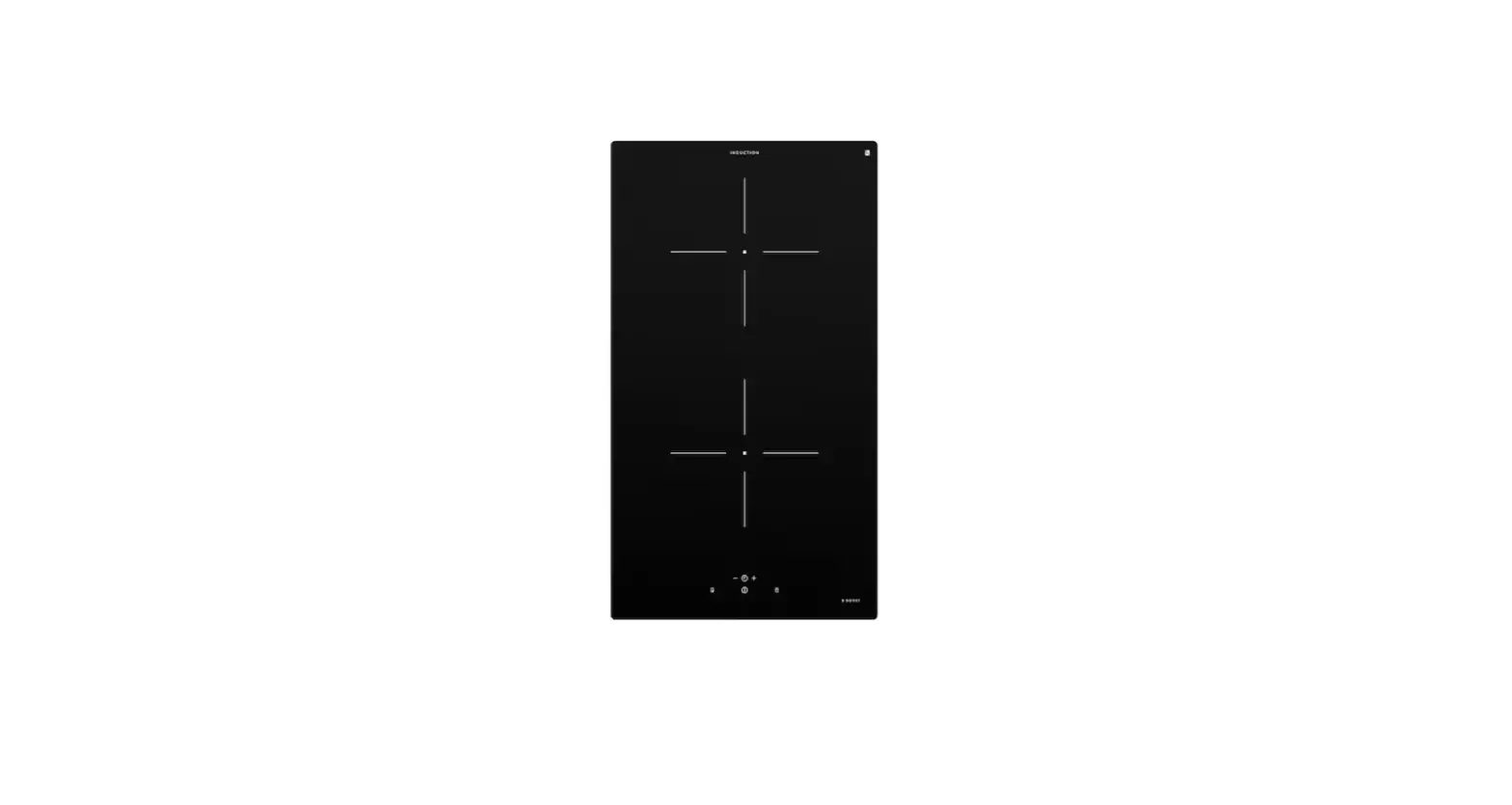

IKEA VALBILDAD Hob

Product description

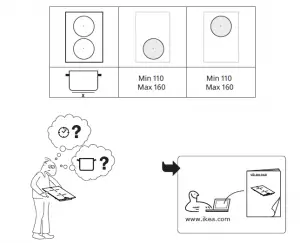

• Single cooking area (160 mm) 1400W, with Booster 2100W.
• Single cooking area (160 mm) 1400W, with Booster 2100W.
• Control panel

Residual heat indicator

• The residual heat indicator is a safety feature, indicating that the surface of the cooking
• area is still at a temperature of 50° C or above, which may cause burns if touched by a
• naked hand. The digit for the corresponding cooking area displays .

Control panel

• On/Of
• Power level indicator
• Button to select cooking area
• Power level / Timer control
• Cooking time indicator

Functions

Boost function
The Boost function can be used to provide extra power in a cooking area for 5 minutes. This function is useful to boil up large amounts of water. Activation:
– Select one of the cooking areas.
– Press “ + “ until reaching level “ 9 “.
– Press again to set the Boost Function.
– The corresponding digit will display .
The Boost function is programmed to last for 5 minutes. Deactivation:
– Select one of the cooking areas with the Boost Function active.
– Press “ – “. It will also deactivate automatically after 5 minutes.

Child lock

This function prevents an accidental operation of the appliance. Confirmation is given when the digit displays . If an area is still hot, then and will alternate. Activation:
Turn the hob on, make sure that none of the cooking areas are active.
– Press and “ – “ together and release.
– Press “ “ again.
– The cooking area digits display . Temporary deactivation: Press button and button “ – “ together and release.
The function is deactivated while the hob is on. If it is turned off and then on again, the function will still be active.

Permanent deactivation:

Turn the hob on, make sure that none of the cooking areas are active.
– Press and “ – “ together and release.
– Press “ – “ again.
The function is deactivated. If the hob is turned off and then on again, it is no longer displayed .

Timer (generic)

The timer is a countdown that can be set to run for from 1 to 99 minutes. At the end of the set time a buzzer will sound, which can be silenced by pressing any of the buttons. The cooking areas operate independently while the timer is working. Activation: With the hob on, make sure that none of the cooking areas are active.
– Press button “ + “ and button “ – “ together.
– The timer digit shows “ 0 0 “.
– Set the time using “ + “ and “ – “ .
– Do not touch anything else for 10 seconds and the timer will start to count down.When the value is “ 0 0 “ pressing “ – “ sets it to 30 minutes. Repeat these operations to modify a value that has already been programmed. Deactivation: With the hob on, make sure that none of the cooking areas are active.
– Press “ + “ and “ – “ together.
– Set “ 0 0 “ using “ + “ and “ – “ .
– Do not touch anything for 10 seconds.

Cooking area timer

This timer is a countdown to turn off a specific cooking area, and can be set to run for from 1 to 99 minutes. During this time the cooking area will work normally. The cooking areas are
independent and can therefore be programmed individually. At the end of the set time a buzzer will sound, which can be silenced by pressing any of the buttons. Activation:
With the hob on, a pan in position and the cooking area operating:
– Select the cooking area required and set the power desidered.
– Press “ + “ and “ – “ together.
– The timer digit shows “ 0 0 “ a dot indicator, next to the corrisponding cooking area, starts blinking.
– Set the time using “ + “ and “ – “ .
– Do not touch anything else for 10 seconds and the timer will start to count down. When the value is “ 0 “ pressing “ – “ sets it to 30 minutes. Repeat these operations to modify a value that has already been programmed.
The timer can be set for both cooking areas. The timer will show the
shortest countdown of the two. Deactivation: With the hob on, a pan in position and the cooking area operating:
– Select the cooking area required.
– Press “ + “ and “ – “ together.
– Set “ 0 0 “ using “ + “ and “ – “ .
– Do not touch anything for 10 seconds.

Energy efficiency of Hob
