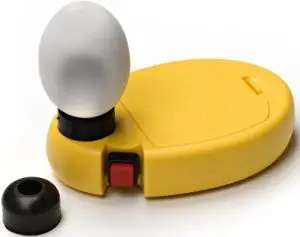

Brinsea OvaView High-Intensity Egg Candling Lamp Instructions
The OvaView is a scientifically designed, purpose made lamp for inspecting the embryo development during incubation.
A non-replaceable, high power LED is used for greatest efficiency, reliability and cool operation.
CAUTION – Never look directly into the light source. Switch off when not in use to maximise battery and LED life.
Instructions for use.
- Eggs may be examined for fertility after about 7 days.

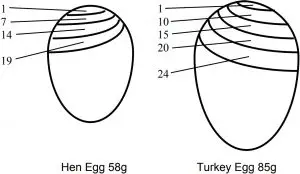

Infertile eggs will appear clear and can be rejected. - Air space estimation can be made using the chart.
If the airspace is too small reduce humidity and vice versa. - The OvaView may be used directly in a darkened room
or the OvaScope may be used in other situations.
Battery Replacement
- Observe correct polarity to prevent leakage or risk of fire
- Do not mix old and new batteries
- Do not use different types of battery at the same time
- For best results use rechargeable batteries in the OvaView High Intensity. A suitable charger and batteries are available from Brinsea Products
- Remove the batteries if you do not intend to use the OvaView for a long period
Specifications
- Dimensions: 128 x 83 x 33mm (5″ x 3.3″ x 1.3″)
- Weight: 85g (3 oz)
