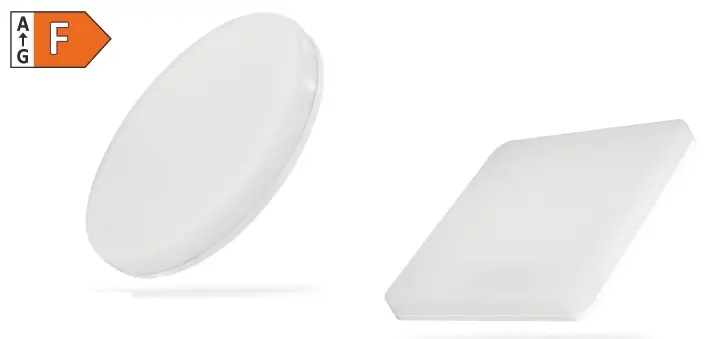

HEDA Ceiling lamp
HCP3014N Ceiling Lamp
Instructions
HCP3004N
HCP3004C
General characteristics
| Family name | Heda ceiling lamp |
| Luminaire type | Ceiling lamp |
| Installation options | Surface |
| Intelligent control | No |
| Accent lighting | No |
| Certificates | CE, RoHS |
| Warranty | 2 years |
Light technical characteristic
| Luminaire luminous flux | 3200lm |
| Luminous efficacy | 107lm/W |
| Color temperature | table below |
| CRI | >80 |
| Beam angle | 100° |
| Color consistency | <6SDMC |
Operating characteristic
| Lifetime | 25 000h |
| Switching cycle | 0,7 |
| LLMF | |
| IP | 44 |
| Warm-up time | comically |
| Starting time | |
| Working temperature | <0,5s |
| Storage temperature | od -20° do 40°C od -20° do 40°C |
Mechanical characteristic
| Luminaire dimensions | table below |
| Packaging dimensions | table below |
| Weight net | table below |
| Material | PC |
Electrical characteristic
| Wattage | 30W |
| Replaces* | 180-260V |
| Voltage | AC |
| Power factor | >0,9 |
| Energy efficiency label | F |
| Index | Power | Luminous flux | Coley temperature | Beam angle | IP | Weight net/gross | Cut-out hole diameter | Luminaire dimensions | Packaging dimensions |
| HCP3004N | 30W | 32001m | 4000K | 100 | 44 | 0,56kg | sound | 0330x53mm | 1.335xW335xH57mm |
| HCP3004C | 30W | 32001m | 6000K | 100 | 44 | 0,56kg | round | e330x53mm | 1.335xW335xH57mm |
| HCP3014N | 30W | 32001m | 4000K | 100 | 44 | 0,71kg | square | 330x330x53mm | 1.335xW335xH57mm |
| HCP3014C | 30W | 32001m | 6000K | 100 | 44 | 0,71kg | square | 330x330x53mm | 1.335xW335xH57mm |
