Graco NWL0001068987A Pack ‘n Play On The Go

IMPORTANT  INSTRUCTION

Setting Up the Playard

• THIS PRODUCT REQUIRES ADULT ASSEMBLY.
• Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the four top rails are completely latched, the center of the floor is pushed down, the mattress pad is flat, the straps are securely fastened to the bottom of the unit. Always follow the instructions in the owner’s manual to set up the playard.
• Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn mesh. Check before assembly and periodically during use. Contact Graco at 1-800-345-4109 for replacement parts and instructions if needed.
• Never substitute parts.

Using the playard

• The playard is for playing or sleeping. When used for playing, never leave child unattended and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.
• Always keep the playard away from hazards in the area that may injure your child.
• When child is able to pull to standing position, remove large toys and other objects that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 inches (89 cm) in height, weighs more than 30 lb (14 kg), or is able to climb out.
• Do not modify playard or add any attachments that are not listed in the owner’s manual, including an add-on bassinet.
• Child can become entrapped and die when improvised netting or covers are placed on top of a playard. Never add such items to confine child in playard.
• NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.

Avoiding Suffocation Hazards

• Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress pad is specially designed to prevent suffocation. The playard mattress pad has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or a different sized mattress pad may allow a child’s head to get between mattress pad and the side of the playard causing suffocation.
• Infants can suffocate
• In gaps between a mattress too small or too thick and products sides
• On soft bedding.
• NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress pad provided by Graco. Mattress pad dimension: 27”x 39” (68.5 cm x 99 cm).
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
• NEVER use a water mattress with the playard.
• If a sheet is used with the mattress pad, use only the one provided by Graco that is specifically designed to fit the dimensions of the mattress pad.

Avoiding Strangulation Hazards

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the playard.
• NEVER place items with a string around a child’s neck, such as hood strings, pacifier cords, etc.
• NEVER attach strings to toys.

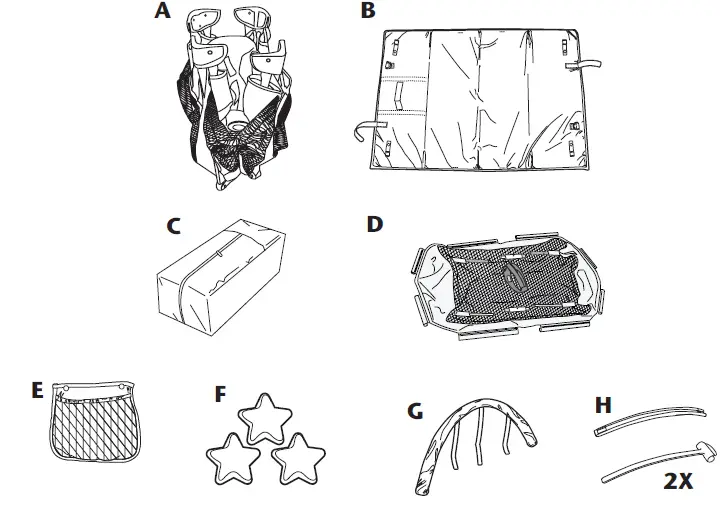

PARTS LIST

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer
Service
1-800-345-4109.
No tools required.

ALL MODELS

•  Playard Frame
•  Mattress Pad
•  Carry Bag
•  Playard Bassinet
•  Storage Bag
•  Toys (styles vary)
•  Toy Bar Fabric
•  Toy Bar Plastics

Playard Set Up

• Disconnect straps holding mattress pad around playard. Remove mattress pad from around playard.

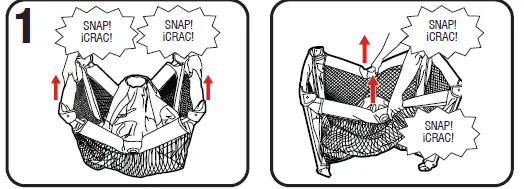

• Pull up on side rails in middle above push button until all four sides are locked. DO NOT push center down yet.
• When setting up, lock rails BEFORE lowering center.
• Be sure top rails have become rigid. If not, pull up again until they are rigid. If top rails do not latch, lift the center of the floor higher.
• CHECK that fabric covers corners.

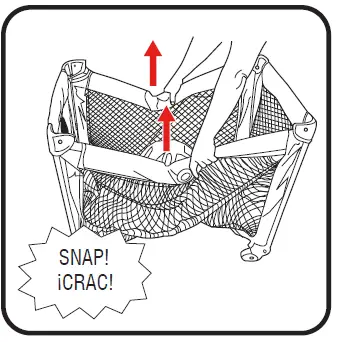

• Hold one end of the unit up and push the center of the floor down until locked securely into place.
• Always use mattress pad soft side up.
• Pull the four snap straps on corners of mattress pad through bottom of playard. Wrap around the tube and fasten snap onto the tube. Repeat on all corners.

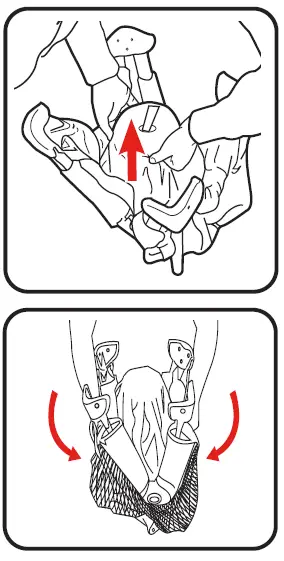

To Fold

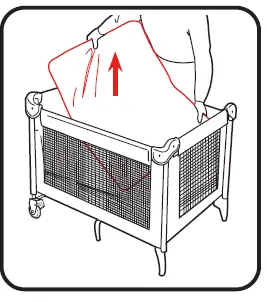

• Release snap straps on bottom of playard. Pull mattress pad fully out of playard.
• DO NOT unlock top rails yet. Pull the center of the playard floor up with the tab in the middle of the playard. Center of floor must be halfway up before top rails will unlock.
• Center of floor must be up.

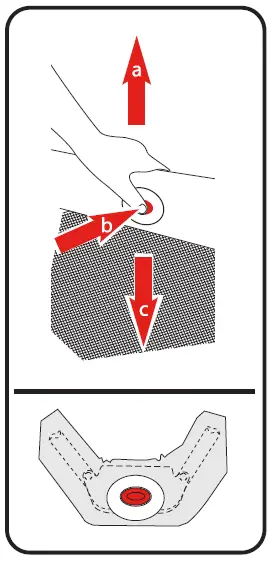

  • Lift up slightly on the top rail.
  • Push in on the button located on the side of the top rail to release the two tubes.
  • Push down.
  • Repeat on all four rails until all tubes are released.
  • If top rails do not unlatch, DO NOT FORCE. Lift the center of the floor higher.
  • Both tubes must be released for the top rail to fold.
• Do not force. If unit will not fold, look for a partially latched top rail. Squeeze the latch button to release the rail.

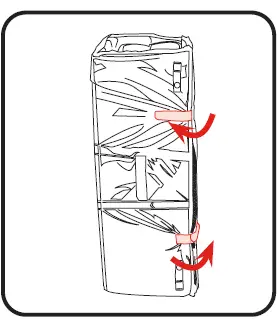

• Wrap mattress pad around playard and fasten straps.

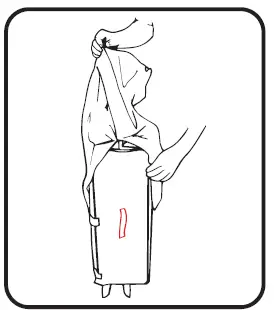

To Cover

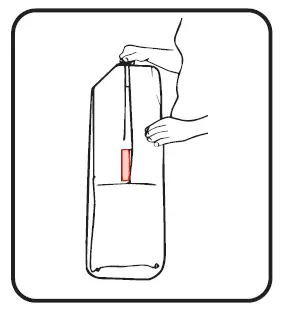

• Cover unit with handle out.
• Zip together.

Playard Bassinet

• In gaps between extra padding and side of the bassinet and
• On soft bedding.
• FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.8 kg), whichever comes first.
• Use bassinet with only one child at a time.
• Never place a child under the bassinet.
• The bassinet must be fully assembled and installed, including six metal tubes, eight clips, and mattress pad before using. Do not modify bassinet or add any attachments that are not listed in the owner’s manual.
• DO NOT store the bassinet in the playard while in use.
• To help prevent heat build-up inside the playard and to avoid overheating your child, when using the bassinet DO NOT use an outdoor canopy.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• If a sheet is used with the mattress pad use only the one provided by Graco that is specifically designed to fit the dimensions of the mattress pad.

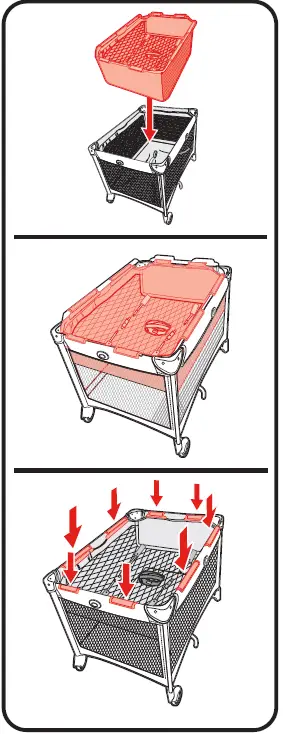

Playard Bassinet

• You will need to remove the mattress pad from the bottom of the playard to use inside your bassinet.
• Attach 8 bassinet clips to playard.
• CHECK to make sure all 8 clips are installed before using

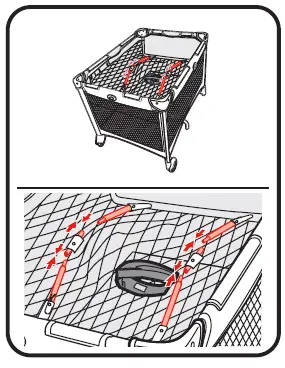

• Insert tapered ends of side tubes into ends of center tube. Repeat with other set of bars. CHECK: Tubes MUST be assembled before placing mattress pad in bassinet.

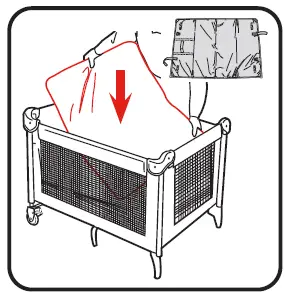

• Once tubes are securely fastened, insert the mattress pad soft side up into the playard bassinet.

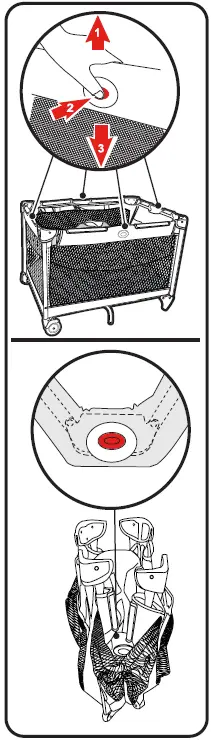

To Fold Playard with Bassinet Attached

• Remove the mattress pad from the bassinet.

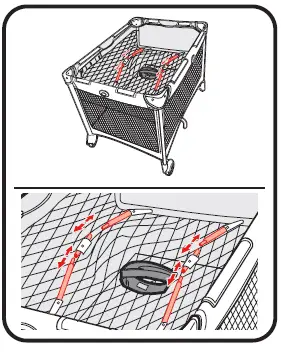

• Unfasten the 6 tubes as shown.

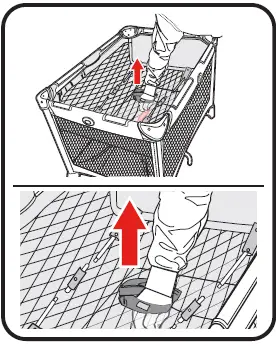

• DO NOT unlock top rails yet. To fold playard with the bassinet attached, reach through an opening in the bottom of the bassinet and pull up on the webbing in the bottom of playard.

Center of floor must be up.

• Lift up slightly on the top rail.
• Push in on the button located on the side of the top rail to release the two tubes.
• Push down.
• Repeat on all four rails until all tubes are released.

To Set Up Playard with Bassinet Attached

• Pull up on side rails in middle above push button until all four sides are locked. DO NOT push center down yet.
• When setting up, lock rails BEFORE lowering center. Be sure top rails have become rigid. If not, pull up again until they are rigid. If top rails do not latch, lift the center of the floor higher. CHECK that fabric covers corners
• Hold one end of the unit up, reach through opening in bottom of bassinet and push the center of the floor down.
• CHECK to make sure all 8 clips are installed before using.
• Insert tapered ends of side tubes into ends of center tube. Repeat with other set of bars. CHECK: Tubes MUST be assembled before placing mattress pad in bassinet.
• Once tubes are securely fastened, insert the mattress pad soft side up into the bassinet.

Toy Bar

• Possible entanglement injury. Keep out of baby’s reach. Remove toy bar when baby begins to push up on hands and knees. Recommended use from birth to 5 months.
• Toys are not intended to be mouthed by the baby and should be positioned clearly out of reach of the baby’s face and mouth.
• Always attach all provided fasteners (strings, straps, clamps, etc.) tightly to playard according to these instructions. Check frequently.
• Do not add additional strings or straps to attach to any other crib or playpen.

1. Attach one end of toy bar into center connector.
2. Insert assembled toy bar parts into toy bar fabric.
3. Attach other end of toybar to center connector.
4. Attach toybar to playard as shown.

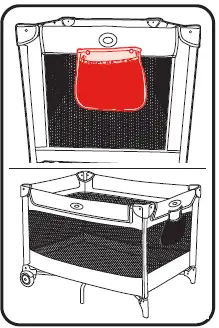

Storage Bag

• Always keep objects out of child’s reach.
• Remove the bag when child is able to pull himself up in the playard.
• NEVER use on inside of unit. Child may use as a step to climb out or reach items in bag.
• TO AVOID SERIOUS INJURY, NEVER place sharp or pointed objects in storage bag.

Care and Maintenance

FROM TIME TO TIME CHECK YOUR PLAYARD for worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco® replacement parts. TO CLEAN PLAYARD, use only household soap or detergent and warm water. DO NOT SUBMERGE PLAYARD IN WATER. TO WASH CARRY BAG, machine wash in cold water on delicate cycle and drip-dry. NO BLEACH. To CLEAN PLAYARD bassinet, hand wash with warm water and household soap. Drip dry. DO NOT SUBMERGE PLAYARD BASSINET IN WATER. TO CLEAN MATTRESS, wipe clean with damp cloth. NO BLEACH. DO NOT SUBMERGE MATTRESS PAD IN WATER.

Replacement Parts

To purchase parts or accessories or for warranty information in the United States, please contact us at the following:

• www.gracobaby.com
• or/ó
• 1-800-345-4109

Folding

• Pull red tab up to unlock. Stop when you hear it click. (See page 10)
• Lift rail up slightly, press button and lower rail. Repeat on all 4 sides. (See page 11)
• Wrap mattress pad around playard. (See page 12)

Set Up

• Pull up on all 4 sides and snap into place. Do not push center of playard down until top rails are locked. (See page 8)
• Push center of playard down until you hear a click. (See page 9)

Product Registration

To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration or return registration card provided with your product. We currently do not accept product registrations from those living outside the United States of America
