Graco Pack ‘n Play Close 2 Baby Bassinet Playard

Setting Up the Playard

• THIS PRODUCT REQUIRES ADULT ASSEMBLY.
• Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the four top rails are completely latched, the center of the floor is pushed down, the mattress pad is flat, the straps are securely fastened to the bottom of the unit. Always follow the instructions in the owner’s manual to set up the playard.
• Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn mesh. Check before assembly and periodically during use. Contact Graco at 1-800-345-4109 for replacement parts and instructions if needed. Never substitute parts.

Using the playard

• The playard is for playing or sleeping. When used for playing, never leave child unattended and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.
• Always keep the playard away from hazards in the area that may injure your child.
• When child is able to pull to standing position, remove large toys and other objects that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 inches (89 cm) in height, weighs more than 30 lb (14 kg), or is able to climb out.
• Do not modify playard or add any attachments that are not
  listed in the owner’s manual, including an add-on bassinet.
• Child can become entrapped and die when improvised netting or covers are placed on top of a playard. Never add such items to confine child in playard.
• NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.

Avoiding Suffocation Hazards

• Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress pad is specially designed to prevent suffocation. The playard mattress pad has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or a different sized mattress pad may allow a child’s head to get between mattress pad and the side of the playard causing suffocation.
• Infants can suffocate
• In gaps between a mattress too small or too thick and products sides
• On soft bedding.
• NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress pad provided by Graco. Mattress pad dimension: 27”x 39” (68.5 cm x 99 cm).
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
• NEVER use a water mattress with the playard.

Avoiding Strangulation Hazards

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the playard.
• NEVER place items with a string around a child’s neck, such as hood strings, pacifier cords, etc.
• NEVER attach strings to toys.

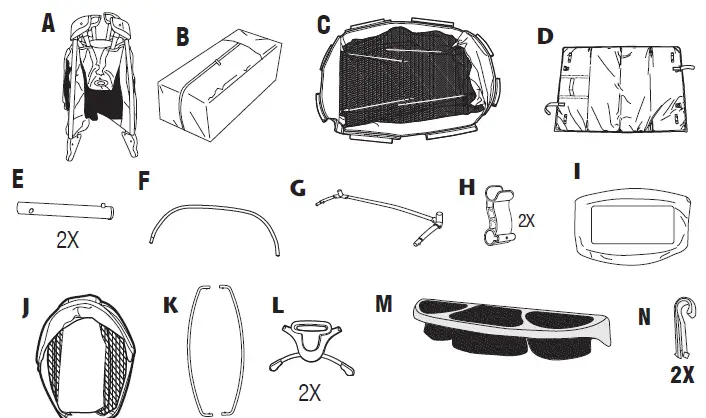

Parts list

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service
1-800-345-4109. No tools required.

ALL MODELS

• A. Playard
• B. Carry Bag
• C. Playard Bassinet
• D. Mattress Pad
• E. Changer Attachment Tubes
• F. Changer Rail
• G. Changer Rail with Plastic Corner
• H. Changer Kickstands
• I. Changing Area
• J. Portable Bassinet
• K. Portable Bassinet Rails
• L. Portable Bassinet Legs
• M. Parent Organizer
• N. Parent Organizer Clips

Playard Set Up

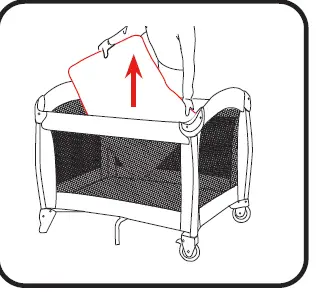

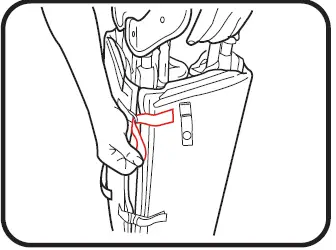

• Disconnect straps holding mattress around playard. Remove mattress from around playard.
• Desconecte las correas que sujetan el colchón alrededor del corralito.

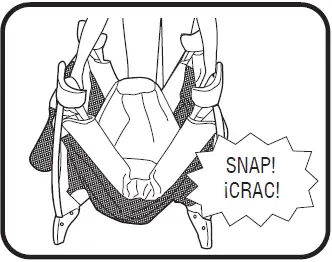

• Pull up on side rails in middle above push button until all four sides are locked. DO NOT push center down yet.
• Tire hacia arriba las barandas laterales del medio arriba del botón hasta que los cuatro costados estén trabados.
• When setting up, lock rails before lowering center.
• Be sure top rails have become rigid. If not, pull up again until they are rigid. If top rails do not latch, lift the center of the floor higher.

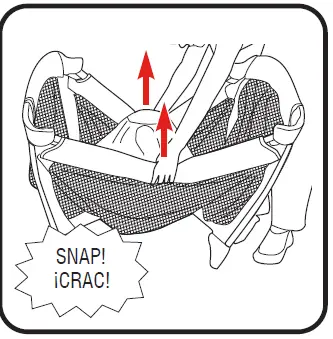

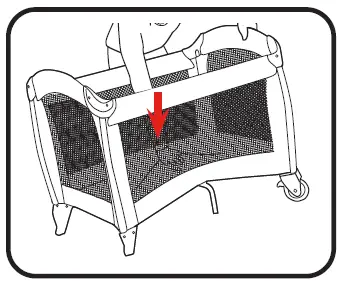

• Hold one end of the unit up and push the center of the floor down until locked securely into place.

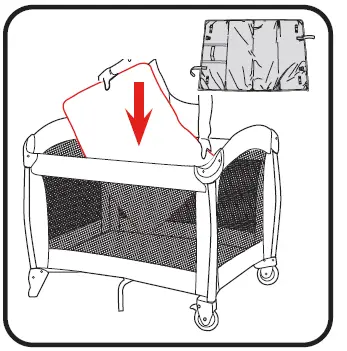

• Always use mattress pad soft side up.

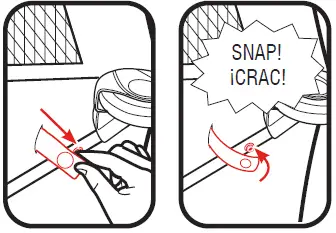

• Pull the four snap straps on

To Fold

• Release snap straps on bottom of playard. Pull mattress pad fully out of playard.

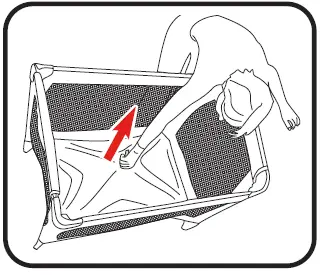

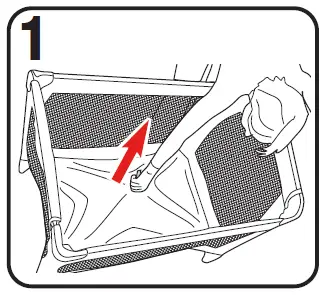

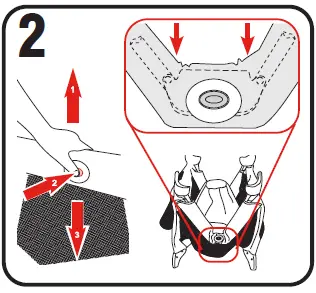

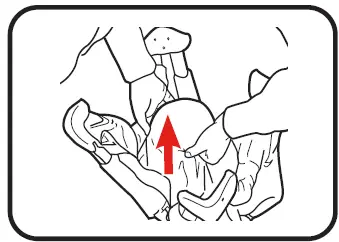

• DO NOT unlock top rails yet. Pull the center of the playard floor up with the tab in the middle of the playard. Center of floor must be halfway up before top rails will unlock.
• Center of floor must be up.

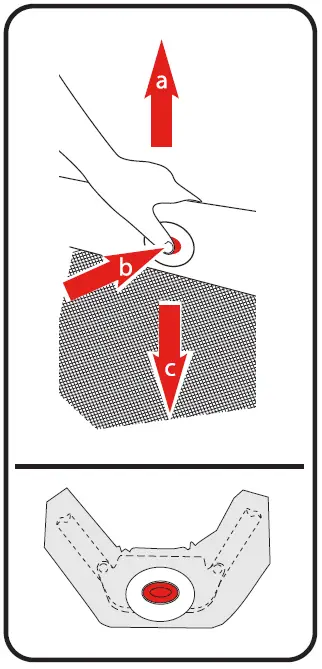

  •  Lift up slightly on the top rail.
  •  Push in on the button located on the side of the top rail to release the two tubes.
  •  Push down.
  •  Repeat on all four rails until all tubes are released.
    • If top rails do not unlatch, DO NOT FORCE. Lift the center of the floor higher.
    • Both tubes must be released for the top rail to fold.

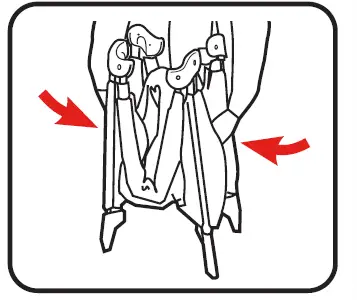

•  Push sides of playard in to fold.
  • Do not force. If unit will not fold, look for a partially latched top rail. Squeeze the latch button to release the rail.

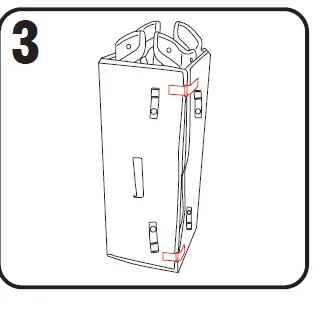

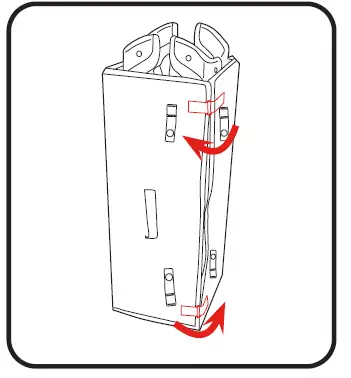

• Wrap mattress around playard and fasten straps.

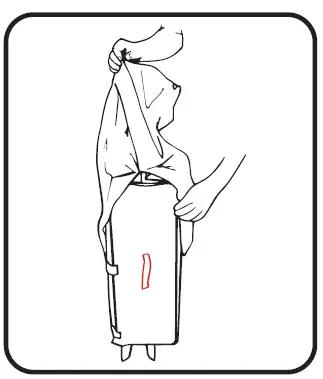

To Cover

• Cover unit with handle out.
• Zip together.

Playard Bassinet

• In gaps between extra padding and side of the playard bassinet and
• On soft bedding.
• Use ONLY the mattress pad provided by Graco. NEVER add a pillow, comforter, toys or another mattress for padding.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• If a sheet is used with the mattress pad use only the one provided by Graco that is specifically designed to fit the dimensions of the mattress pad.
• DO NOT store the playard bassinet in the playard while in use. FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.5 kg), whichever comes first.
• Use playard bassinet with only one child at a time.
• Never place a child under the playard bassinet.
• The playard bassinet must be fully assembled and installed, including four metal tubes, eight clips, and mattress pad before using. Do not modify bassinet or add any attachments that are not listed in the owner’s manual.

STRANGULATION HAZARD:

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER hang strings on or over the product.
• NEVER place items with a string around a child’s neck, such as hood strings, pacifier cords, etc.
• NEVER attach strings to toys.
• Never place child in playard bassinet while an accessory is attached.

Playard Bassinet

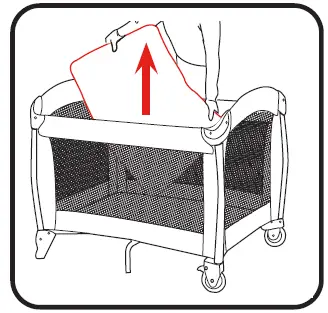

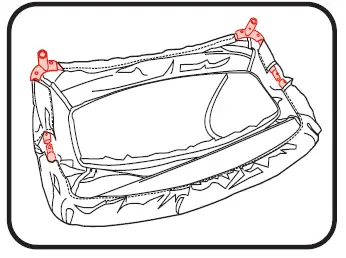

• You will need to remove the mattress pad from the bottom of the playard to use inside your bassinet.

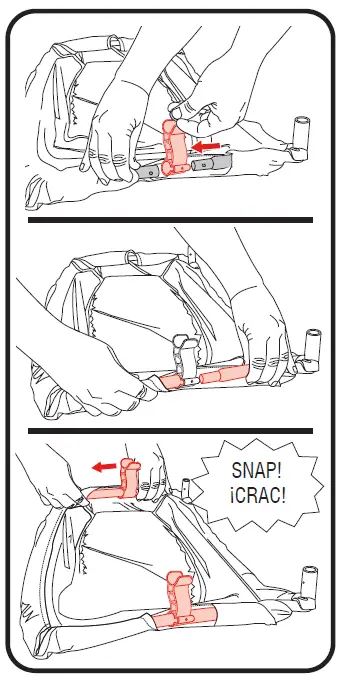

• Make sure to fasten the bassinet clips to the playard.

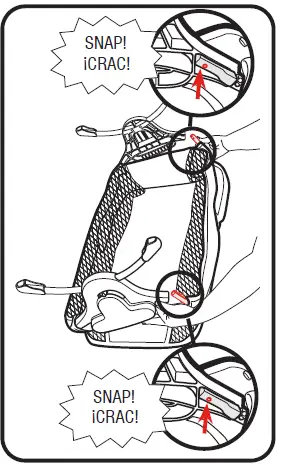

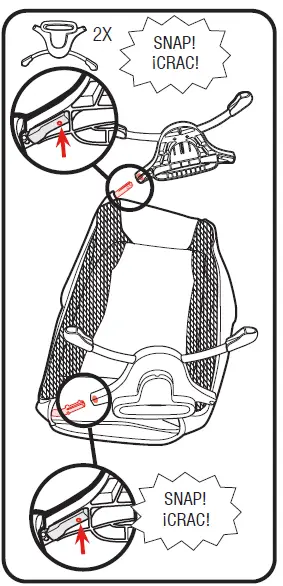

• Always press down on the left side of the clip, then the right as shown. Repeat on all eight clips.

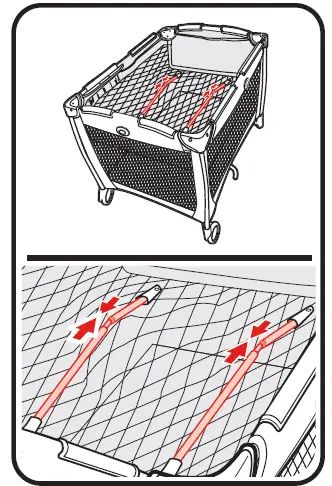

• Insert tapered end of tube into end of opposite tube. Repeat with other set of bars. CHECK: Tubes MUST be assembled before placing mattress pad in bassinet.

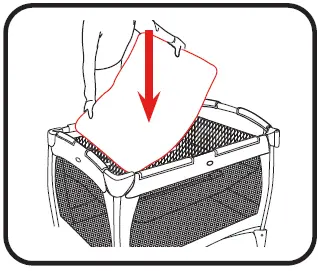

• Insert the mattress pad soft side up into the bassinet.

Changing Area

WARNING

• STAY within arms reach.
• Use changing area only on this playard model.
• ALWAYS secure this unit to the support frame by attaching to identified location.
• Before each use, check the attachment by grasping the sides/ends of the changing area, and pulling upward. See instructions.
• Do not use on the floor, bed, counter or other surfaces.
• NEVER allow baby to sleep on changing area.
• Weight limit for the changing area is 25 lb (11 kg). Do not use the changing area as extra storage.
• Use only the pad provided by Graco.
• Do not use changing area if it is damaged or broken.
• ONLY use with playard bassinet attached.
• Never place child in playard bassinet if changer is attached.
  • • Changing Area



  • Changer Attachment
  • Changer Rail
  • Changer Kickstands
  • Changer Rail with

ACCESSORIES

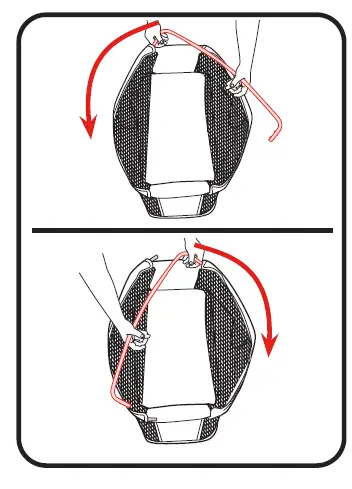

• Slide rail with plastic corners through fabric as shown.
• While changer fabric is still facing down, slide changer rail into opposite side of fabric as shown.
• Rails should appear exactly as shown. Plastic corners should be in the corner openings.
• Slide kickstand with hole facing outward, onto one rail. Snap frame together, then slide kickstand back over button. Repeat on both sides. CHECK that buttons are visible on both sides.

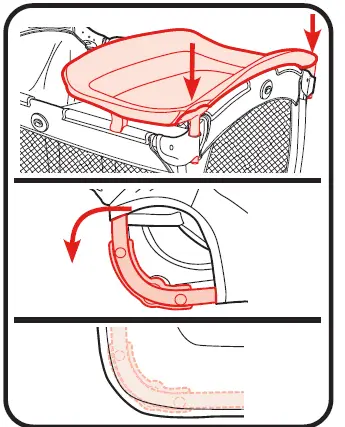

• Snap two short changer attachment tubes into the openings in the plastic corners as shown.

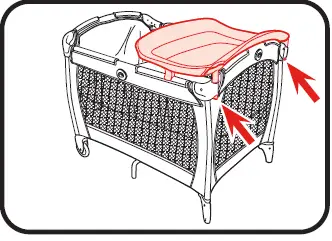

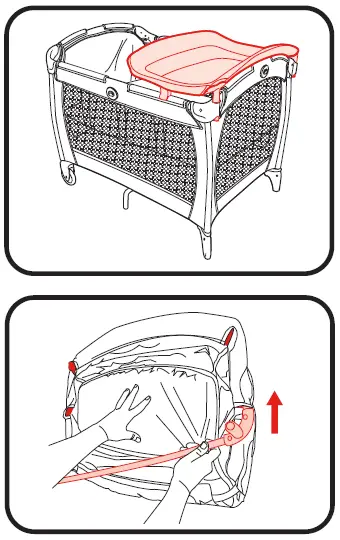

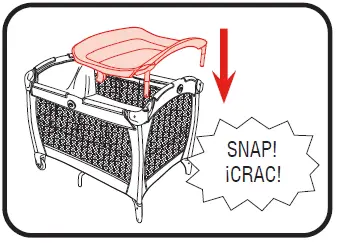

• Insert changer attachment tubes into openings in corners of playard. Make sure the changer is secured by pulling up on the sides of the changer.
• CHECK that corners of changer fabric are pulled over the changer frame.
• To remove, push in buttons on changer attachment tubes while pulling up on corners of changer.

Portable Bassinet

SUFFOCATION HAZARD

• Infants have suffocated:
• In gaps between extra padding and side of the bassinet and

On soft bedding.

• Use ONLY mattress pad provided by Graco. NEVER add a pillow, comforter, toys or another mattress for padding.
• Portable bassinet can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other soft surfaces.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

FALL HAZARD:

• To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.5 kg), whichever comes first.
• Child’s movement can slide product. Use only on floor or attached to identified location on the playard bassinet. Never place bassinet near edges of counter tops, tables, or other elevated surfaces.
• The portable bassinet must be fully assembled and installed, including two rails, two legs, and mattress pad before using. Do not modify portable bassinet or add any attachments that are not listed in the owner’s manual.

STRANGULATION HAZARD:

• • Strings and cords can cause strangulation. Keep strings and cords away from child.
  • NEVER place the portable bassinet near a window where cords from blinds or drapes can strangle a child.
  • NEVER hang strings on or over the portable bassinet.
  • NEVER place items with a string around a child’s neck, such as hood strings, pacifier cords, etc.
  • DO NOT store the portable bassinet in the playard while in use.
  • NEVER use this portable bassinet as a means to transport an infant in a motor vehicle.
  • Do not use this portable bassinet if it is damaged or broken.
  • Never place any objects in portable bassinet while child is in it.
  • Never place a child under the portable bassinet.
  • Never place child in playard bassinet while an accessory is attached.
  • ALWAYS use mattress pad. Do not use a sheet with the pad.
    • J. Portable Bassinet

    • K. Portable Bassinet
    • L. Portable Bassinet

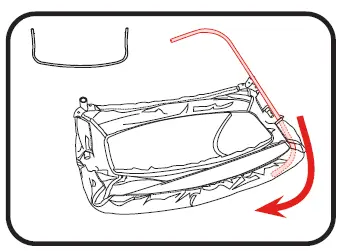

  • Insert rails into channels in portable bassinet fabric.
  • Attach portable bassinet legs by inserting ends of rail into openings as shown.
  • CHECK: Buttons should be visible in openings.
  • Insert ends of other rail into openings in portable bassinet legs.
  • CHECK: Buttons should be visible in openings.
  • Attach the canopy to the sides as shown.

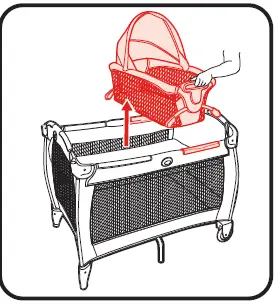

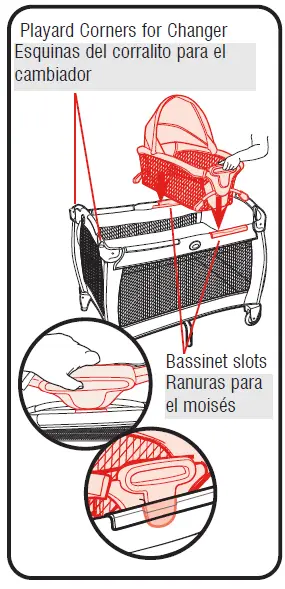

  • To attach portable bassinet to playard bassinet, line up handles on ends of portable bassinet with slots in playard bassinet clips. Push portable bassinet onto slots. CHECK portable bassinet is securely attached by pulling sideways on portable bassinet. NOTE: Playard bassinet must be attached to playard when using portable bassinet.

To Remove Portable Bassinet

• Lift up as shown.
• When carrying with a child, always hold portable bassinet by the handles.

Parent Organizer

• Always keep objects out of child’s reach.
• Remove this accessory when child is able to pull himself up in the playard.
• Insert hooks into openings in parent organizer.
• Attach to end of playard.
• Push down on parent organizer to secure into place.

Care and Maintenance

To Clean Portable Bassinet

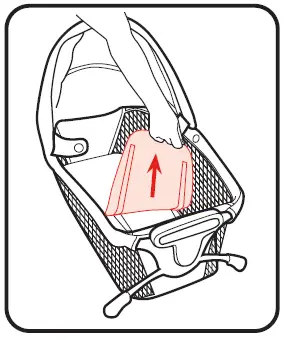

• Remove mattress pad as shown.
• Reverse step to re-attach
• NOTE: DO NOT use this portable bassinet without a mattress pad
• FROM TIME TO TIME CHECK YOUR PLAYARD for worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco® replacement parts.
• TO CLEAN PLAYARD, use only household soap or detergent and warm water. DO NOT SUBMERGE PLAYARD IN WATER.
• TO WASH CARRY BAG, machine wash in cold water on delicate cycle and drip-dry. NO BLEACH.
• TO CLEAN PLAYARD BASSINET, hand wash with warm water and household soap. Drip dry. DO NOT SUBMERGE PLAYARD BASSINET IN WATER.
• TO CLEAN PLAYARD MATTRESS PAD, wipe clean with damp cloth. NO BLEACH. DO NOT SUBMERGE MATTRESS PAD IN WATER.
• TO CLEAN CHANGER, wipe clean with damp cloth. NO BLEACH.
• TO CLEAN PORTABLE BASSINET, wipe clean with damp cloth. NO BLEACH. TO WASH PORTABLE BASSINET MATTRESS PAD, machine wash in cold water on delicate cycle and drip-dry. NO BLEACH.

Replacement Parts

To purchase parts or accessories or for warranty information in the United States, please contact us at the following:

• www.gracobaby.com
• 1-800-345-4109

Product Registration

To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration or return registration card provided with your product. We currently do not accept product registrations from those living outside the United States of America.

Folding – Quick Guide

• Pull red tab up to unlock. Stop when you hear it click. (See page 10)
• Lift rail up slightly, press button and lower rail. Repeat on all 4 sides. (See page 11)
• Wrap mattress around playard. (See Page 12)

Set Up

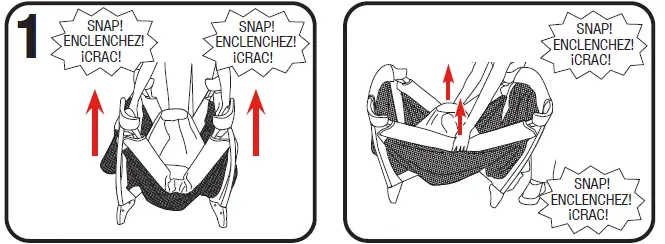

• Pull up on all 4 sides and snap into place. Do not push center of playard down until top rails are locked. (See page 8)

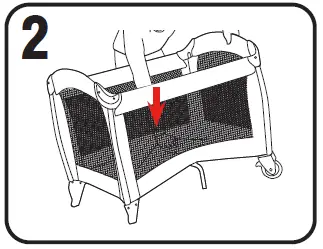

• Push center of playard down until you hear a click. (See page 9)
