Electrolux EMB2523DSE Biut In Microwave Oven

Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-product

NOTE:
Your appliance must be mounted on a flat surface for the full width and depth of the product.

Dimensions

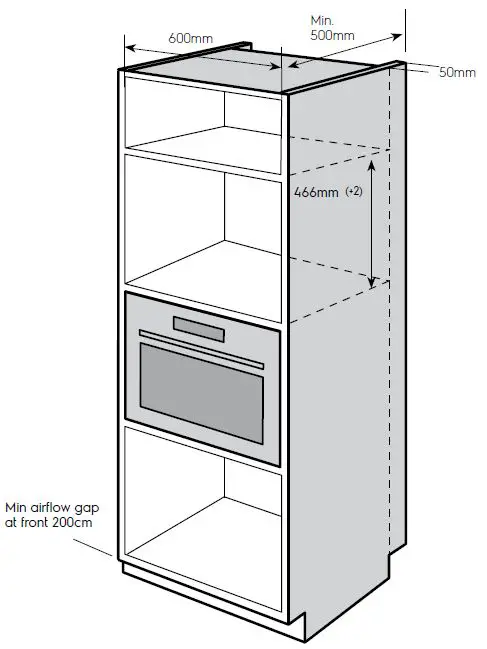

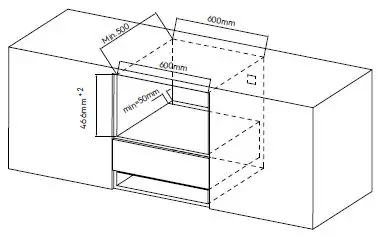

Built-in furniture – flush fit

Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-fig- (1)Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-fig- (2)

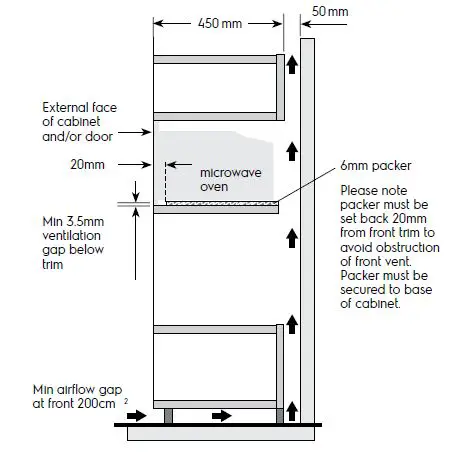

Side view

Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-fig- (3)

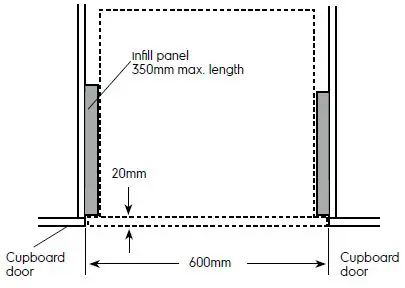

Flush fit top view

Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-fig- (4)

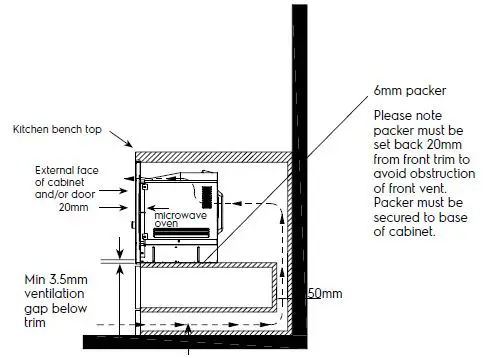

Infill panels are recessed 20mm from the external cabinet door to accommodate a flush fit.Electrolux-EMB2523DSE-Biut-In-Microwave-Oven-fig- (5)

Please note!
Dimensions to be used as a guide only. All customers MUST refer to the user manual supplied with the product for detailed installation instructions.

© 2022 Electrolux S.E.A PTE. LTD. E_DIM_EMB2523DSE_Aug22.
