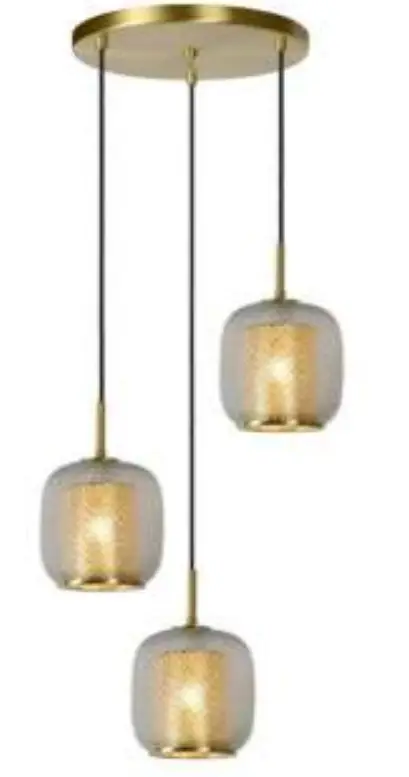

03433 AGATHA Pendant Light
Instruction Manual
INSTALLATION MANUAL
Thank you for purchasing a Lucide original!
This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting. Welcome to the community of #illuminatesyourworld
| DISCOVER OUR COLLECTION! | CURIOUS ABOUT OUR BRAND? | ILLUMINATESYOURWORLD |
 |  |  |
| Visit our website and discover our entire collection | Our brand video gives you a glimpse behind the scenes at Lucide | Take a look at how others around the world use Lucide products |
Follow us for the latest lighting trends!
RECO MENDED LU CIDE LIGHT SOURCE
490 20 / 0 5/ 60 Dimmable: Yes Included: No
Item number: 0 34 33/ 0 3/ 0 2
EAN code: 54 112120 31389
General
Dimensions LxW Hx: 35cm x 35cm x 163cm
Height minimum: 50 cm
Height maximum: 163cm
Main material: Glass
Ceiling rose material: Metal
Color: Matt Gold / Brass and Transparant
Style: Vintage
Shape: Round
Weight: 4,4 0 kg
Specifications
Dimmable: Yes
Light direction: Around (Diffuse)
Adjustable in height: Adjust ability In Height
(Before Inst allation)
Directional: Not Direct ional
Cable: Yes, Cable On Product
Cable length: 130 cm
Sensor: Without Sensor
Control: Light Sw it ch Cont rol
Power supply: Adapter/Power Grid
IP-Class: 20
Electric Class: 3
Number of light sources: 3
Lamp socket: E27
Maximum wattage: 40 W
Power requirements: 220 -240 V~50 Hz
Warranty: 2 Years
For more specifications or dimensions of this product please visit www.lucide.com

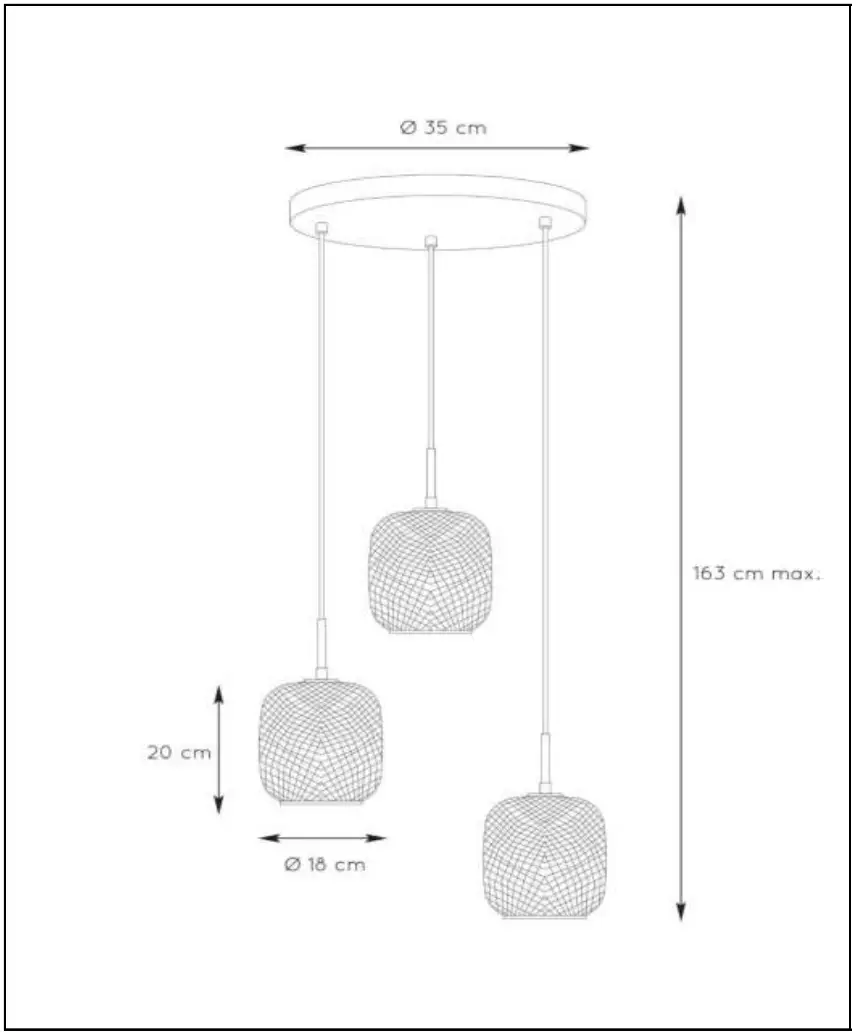

TECHNICAL DRAWING & DIMENSIONS
Item number: 0 34 33/03/02
EAN code: 54 112120 31389

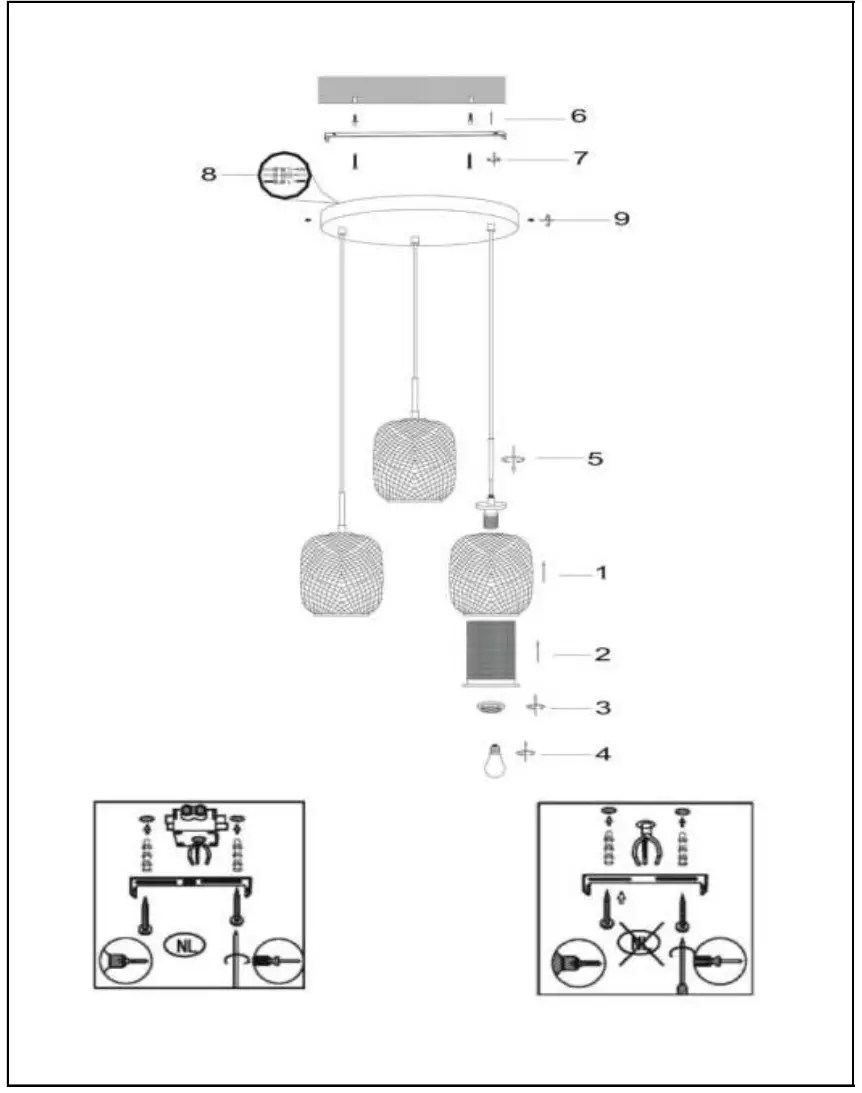

INSTALLATION DRAWING SPECIFICATIONS
Item number: 0 34 33/ 0 3/ 0 2
EAN code: 54 112120 31389
Safety Instructions
Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture.
The manufacturer does not accept any responsibility for damage caused by improper installation and service.
Installation should always be done by a qualified electrician.
Always isolate the power before commencing installation, maintenance, or repair. In case of any doubts, please contact a qualified electrician. Please pay attention to locations where the item can be installed (indoor, outdoor, and bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products.
Always respect the minimal distance (indicated on the light) to inflammable products.
During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician. This is to avoid all risks.
Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).
Explanation of the symbols that can appear on the fixture
This item is only suitable for indoor use, and exclusive bathroom (except if a higher IP degree permits that the item can be used in the bathroom).
Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling.
Electrical and electronic equipment marked with this symbol indicates a separate collection of such equipment must be returned to a municipal waste collection point.
Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).
Class II: The item is double insulated and must not be connected to the earth wire.
Class III: The item is only suitable for a lower voltage supply and must not be connected to the earth wire.
IP 20 IP 20: Protection against contact with a finger
If the protection glass is damaged or broken, it needs to be replaced immediately.
Please respect the minimum distance from the bulb to inflammable objects.
LUCIDE NV
LUCIDE NV BISSCHOPPENHOFLAAN 145
2100 DEURNE, BELGIUM
[email protected]
tel: +32(0)3 366 22 04
www.lucide.com
