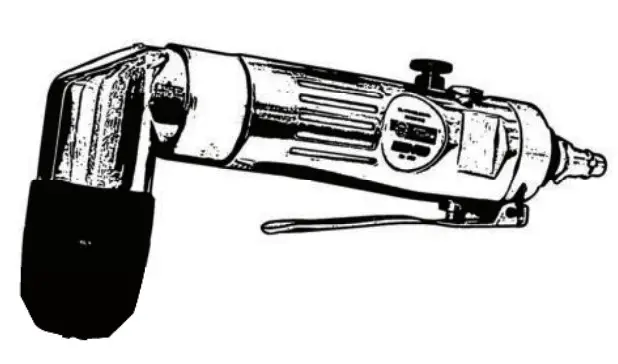

G De 40125 Pneumatic Angle Grinding Machine Instruction Manual

Pneumatic Angle Grinding Machine
Instruction Manual

Please read carefully the following Operating Instructions before putting the appliance into operation.

A.V. 1
Any reprints, even partial, are subject to approval.
Technical changes reserved.

Do you have any questions? Any claim? Do you need spare parts or operating instructions?
We will quickly help you without bureaucracy at our homepage www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., assortment item No. and year of production. All this data can be found on the type label. Please enter it here for future reference.

Marking:
Product safety:

The product corresponds to appropriate standards of the EU

Prohibitions:

General prohibition (in connection with any other icon)

Warning:

	Warning/Attention
	Beware of the rotary tool!

Commands:

	Read the Operating Instructions before use
	Wear earphones!
	Wear protective glasses!
	Wear safety gloves!

Environment protection:

	Dispose of the waste professionally in order not to pollute the environment.
	Packing cardboard material may be delivered to collecting centers for recycling.
	Any damaged or disposed of electric or electronic devices must be delivered to appropriate collection centers.

Package:

This side up

Technical data:

Weight

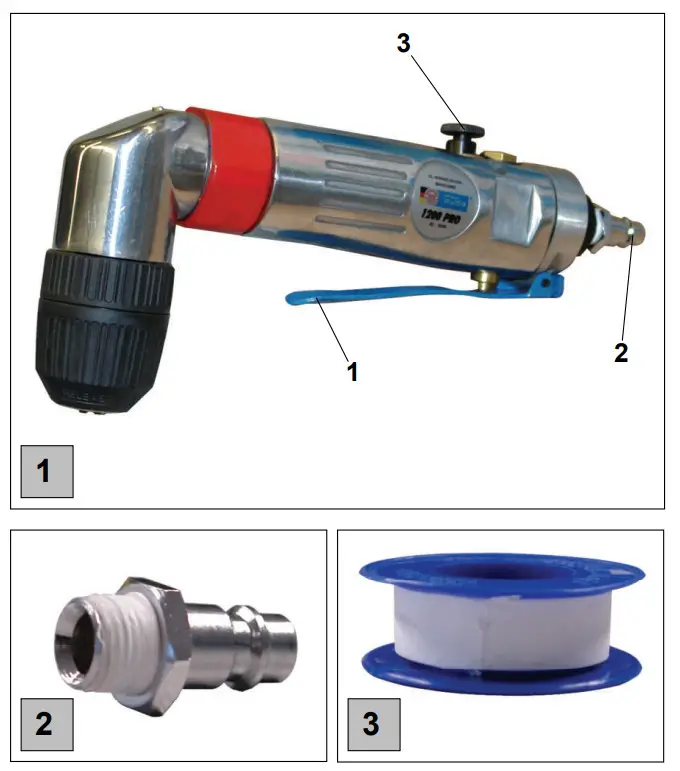

Unit Scope of Supply (Fig. .1)

1. Control lever
2. Pneumatic coupling
3. button (turning direction change)

1200 PRO pneumatic angle grinding machine
Professional pneumatic angle grinding machine for works in places difficult to approach, with a 3/8 quick chuck. Due to the foul air channel, there is no dust swirl on the workpiece.

EU DECLARATION OF CONFORMITY

We,
Güde GmbH & Co. KG
Birkichstrasse 6
D-74549 Wolpertshausen
Germany herewith declares that the following appliance complies with the appropriate basic safety and health requirements of the EU Directives based on its design and type, as brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity.

Machine description:
1200 PRO pneumatic angle grinding machine

Article No.
#75155

Applicable EU Directives:
2006/42 EG
Applicable harmonized standards:
EN ISO 12100-1:2003
EN ISO 12100-2:2003
EN ISO 14121-1:2007
EN 792-3+A1:2008
EN 15744:2008
EN 28662-1:1993

Date/authorized signature: 24.11.2010 Managing Director Mr. Arnold
Title of signatory:
Technical documentation:J. Bürkle FBL; QS

Guarantee

Guarantee claims according to the guarantee certificate attached. Please, understand that we are unable to accept the guarantee for the following reasons:

Breach of operation and service instructions.
Necessary cleaning neglect.

• Forcible use, unprofessional handling, misuse, or accident.
• Laic interventions or unprofessional attempts to do a repair.

Technical data

Operation

Do not direct the rotating end of the tool against yourself or against other persons. Connect the tool with the air supply hose
If a seal has not yet been applied on the pneumatic insertion wrap it with Teflon tape (pictures 2 and 3)

General safety instructions

Safety notice! Failing to follow these instructions can cause an injury to you or other persons.
Protect yourself and your surroundings against accidents using suitable safety measures.

1. Read the following Operating Instructions for using the pneumatic appliance and follow the safety instructions for using the pneumatic appliance.
2. Properly maintain the appliance and follow all instructions for appliance lubrication and maintenance.
3. Never exceed the prescribed service pressure
4. Do not use the angle drilling machine to any other purpose than prescribed
5. Protect the pneumatic tools from children.
6. Get down to work well-rested and concentrated.
7. Pneumatic connection via a fast-acting clutch only.
8. Set up the work pressure on the reduction valve.
9. Do not use oxygen or inflammable gases as the source of energy.
10. Before removing failures, disconnect the unit from the source of pressurized air.
11. Use only genuine spare parts.
12. Never let the unit idle at full.
13. Always wear eye and ear protection
14. Always wear safety gloves.
15. Do not use any unnecessarily long delivery hose to prevent a risk of the trip.
16. ATTENTION: Do not exceed the maximum pressure of 6.3 bar.
17. Never leave the pneumatic appliance unattended.
18. Never put the appliance near people or animals.
19. Never aim at people or animals with the air current.
20. Never put the pneumatic appliance near body holes – it can lead to injuries dangerous to life!

Attention! You can get caught by the rotary tool!

Maintenance and Care

Only trained persons ate allowed to do the maintenance.
Observing warning commands shown in the Lasting and trouble-free function of your ratchet screwdriver is grounded on regular lubrication. Use only a special tool oil. Pick up a possibility of lubrication: Use only a special tool oil. Pick up a possibility of lubrication.

Ways of lubrication are the following:

a) Via a beam-added lubricator The full maintenance unit includes a beam-added lubricator and is placed on the compressor.
b) Via a lubricator on the piping
A lubricator installed on piping supplied the unit with a sufficient amount of oil at an immediate distance from the unit (approximately 50 cm).
c) Manually
If there is no maintenance unit or a lubricator on piping, 5-6 drops of oil should be put in a pneumatic connection before every putting operation.
Store the pneumatic tool in dry rooms.
You need to disconnect the air hose and pour in a large volume of pneumatic oil into the air intake every three months or when the angle grinding machine is used only occasionally. Reconnect the air hose and let the angle grinding machine run for app. 30 seconds to enable compressor engine cleaning. Follow the lubricating instructions after cleaning.
