MYPV my-PV WiFi Meter
The guardian of the power flows of your PV system: everything goes smoothly.
3-phase power meter for my-PV devices
- Clamp-on current transducers for easiest measurement and high installation comfort
- Also for high power in commercial applications
- Wireless communication

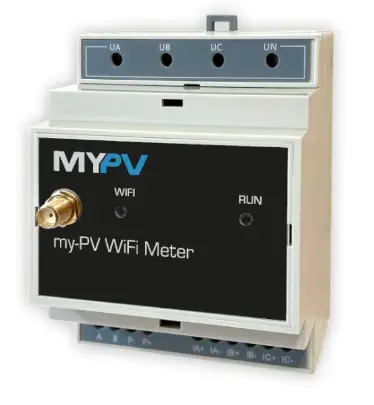

my-PV WiFi Meter
my-PV WiFi Meter maximize self-consumption of your PV system in the easiest way.

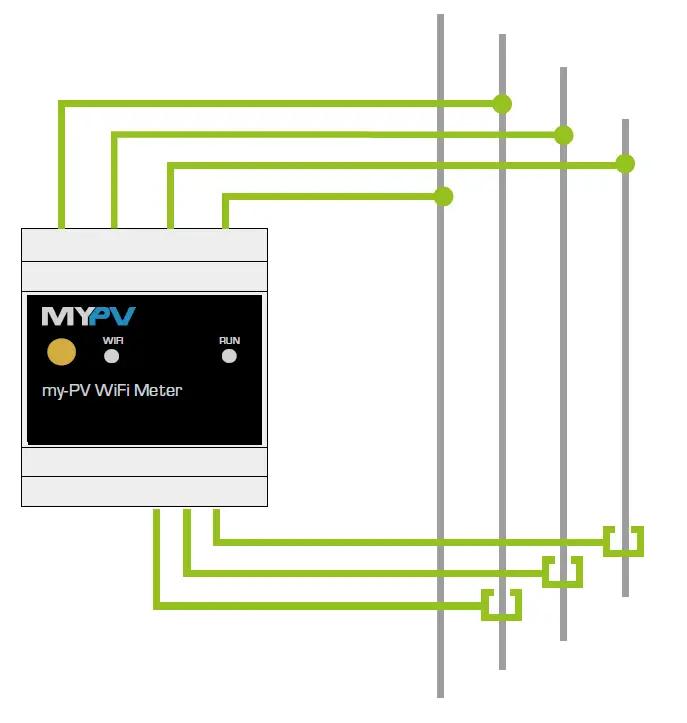

The my-PV WiFi Meter detects the energy flows of the pho-tovolatic system. my-PV devices receive desired information from our WiFi meter wirelessly. As a result, only energy that is currently available is used to generate heat. Power feed-in is avoided. PV self-consumption is maximized, the public po-wer grid is relieved. The my-PV WiFi Meter is mounted in the distribution cabinet directly after the utility meter and de-tects the power flow via three external clamp-on current transducers.
TECHNICAL SPECIFICATIONS MY-PV WIFI METER
- Measurement range 0 – 75 A (higher currents with other clamp-on sensors possible)
- Interface WiFi
- Dimensions (L × H × D) 90,2 × 71 × 57,5 mm
- Type of protection IP 51
- Connections Screw terminals
- Max. terminal cross section 2,5 mm² fine-wire
- Terminal tightening torque 0,4 Nm
- Terminal stripping length 6 ‒ 7 mm
- Weight ca. 200 g
- Mounting 35 mm DIN rail
- Ambient temperature -20 … + 60 °C
- Power supply Via Ua/Ub/Uc
CLAMP-ON CURRENT TRANSDUCERS
Max. wire diameter 10 mm
Dimensions (L × H × D) 26,5 × 24 × 41 mm
| Weight | 3 × 80 g | |
| Special sizes (W× H × L) | 0-100 A 0-200 A 0-400 A 0-600 A | Max. wire diameter 23 mm, 51 x 41 x 65 mm Max. wire diameter 23 mm, 51 x 41 x 65 mm Max. wire diameter 36 mm, 67 x 50 x 87 mm Max. wire diameter 36 mm, 67 x 50 x 87 mm |
my-PV GmbH
Betriebsstraße 12 • A-4523 Neuzeug
T: +43 (0)7259 / 393 28 • E: [email protected]
www.my-pv.com
