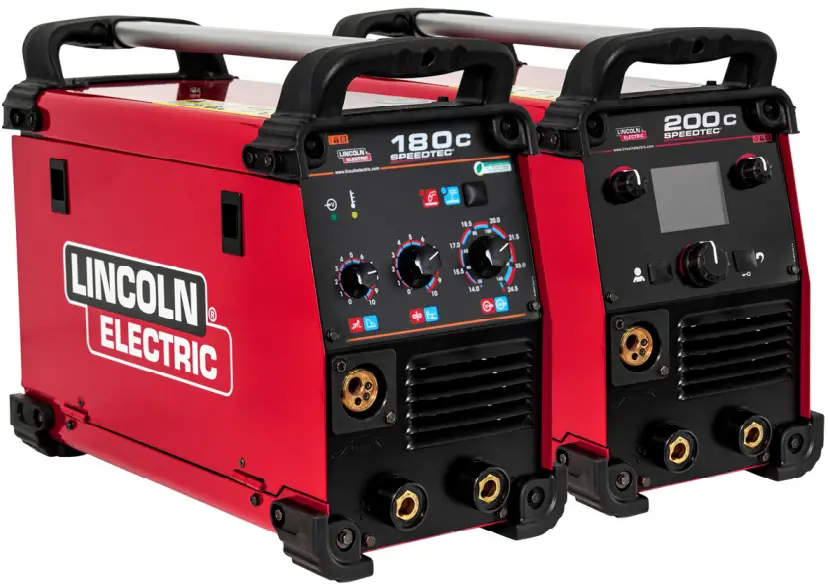

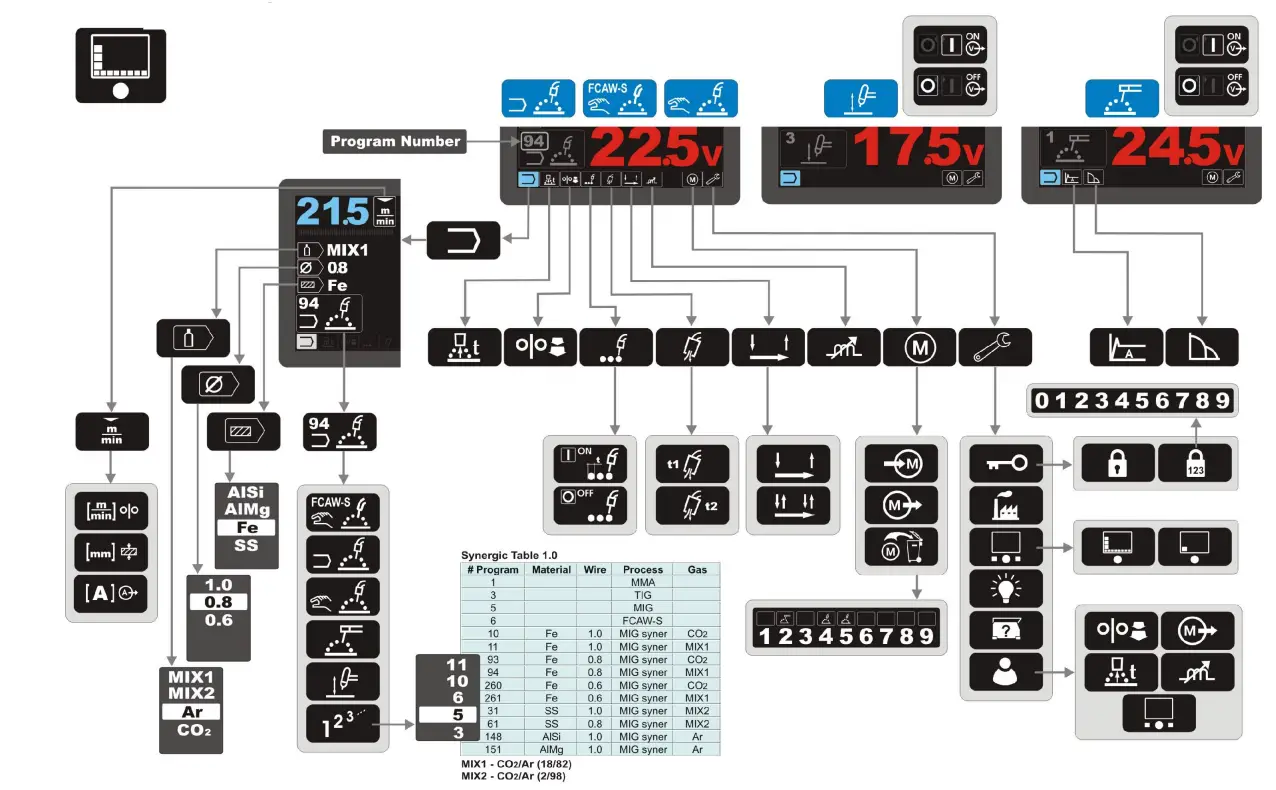

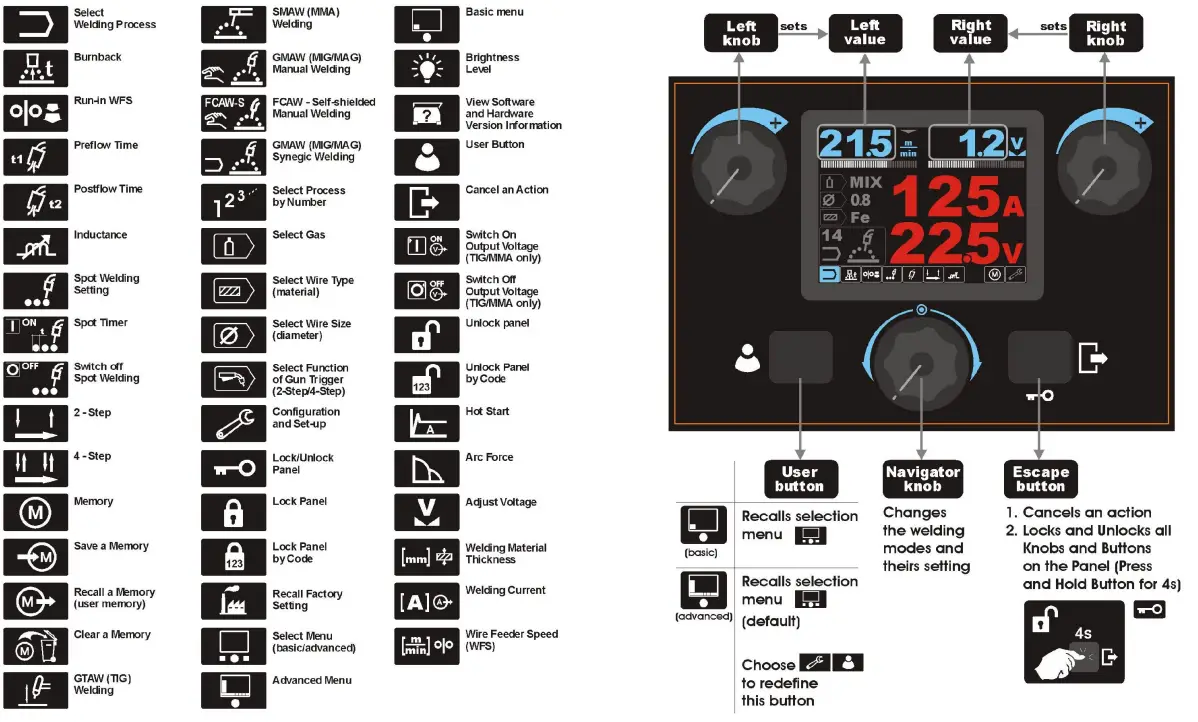

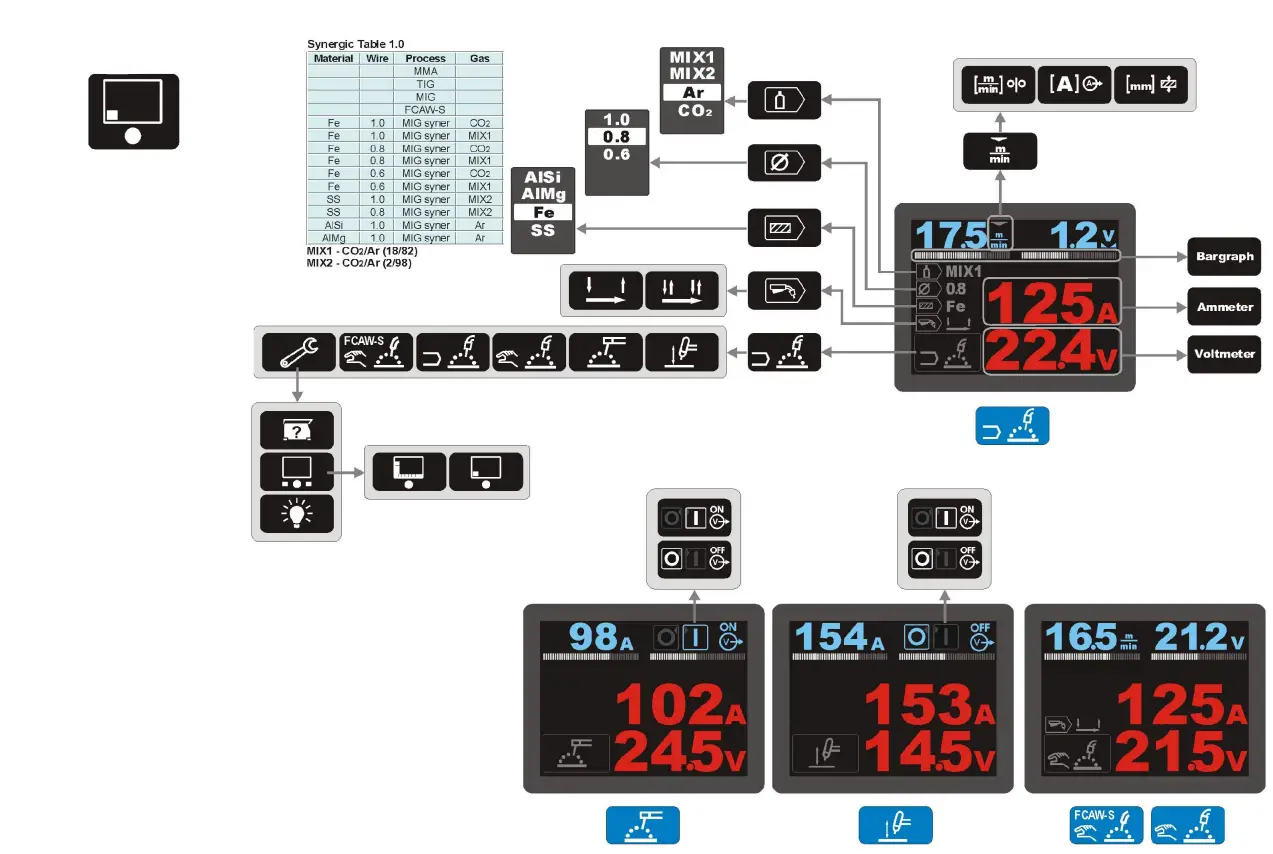

LINCOLN ELECTRIC Speedtec 180C and 200C
Spare Parts
|
ASSEMBLY PAGE NAME | Machine Assembly | Machine Assembly | Wire Drive Assembly | Euro Socket Assembly | Miscellaneou s Items | |||
| CODE NO.: | K NO.: | FIGURE NO.: | A | B | C | C | – | |
| 50268 | K14098-1 | SPEEDTEC 180C | 1 | 1 | 1 | 1 | 1 | |
| 50585 | K14099-1 | SPEEDTEC 200C | 2 | 2 | 2 | 2 | 2 | |

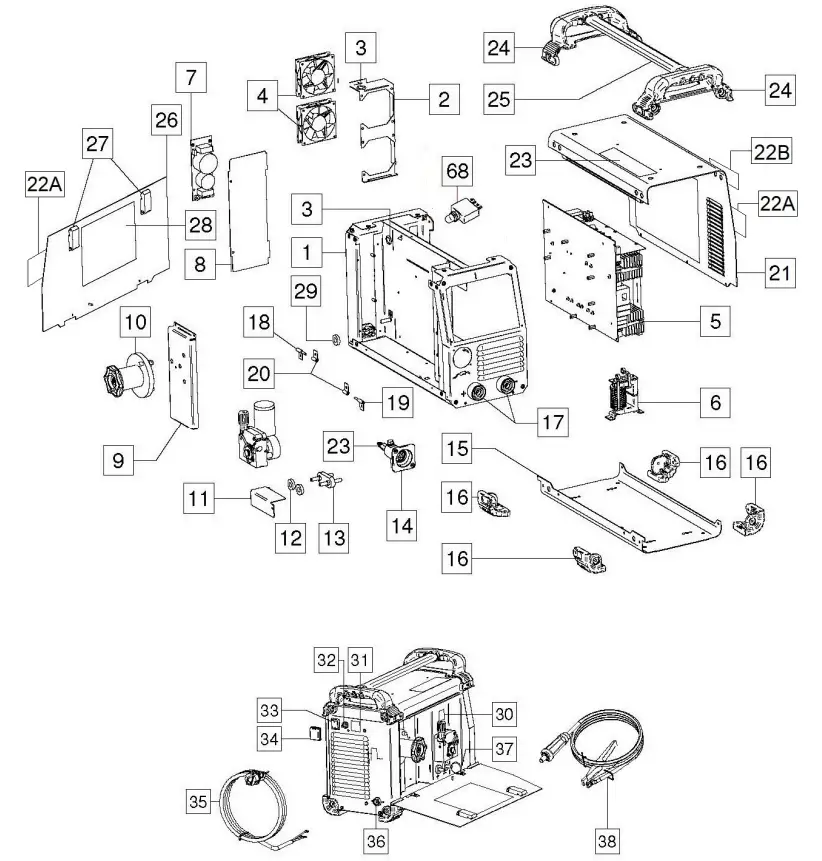

Figure A: Machine Assembly
| Item | Description | Part Number | QTY | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 1 | RACK | R-3019-296-1/08R | 1 | X | – | |||||
| 1 | RACK | R-3019-296-4/08R | 1 | – | X | |||||
| 2 | COVER | R-1019-292-2/08R | 1 | X | X | |||||
| 3 | RUBBER CABLE BUSH | 1373-182-002R | 2 | X | X | |||||
| 4 | FAN | 1111-311-082R | 2 | X | X | |||||
| 5 | P.C. BOARD | R-6042-064-1R | 1 | X | – | |||||
| P.C. BOARD | R-6042-064-6R | 1 | – | X | ||||||
| 6 | CHOCKE | R-4034-148-1R | 1 | X | X | |||||
| 7 | FILTER EMI | Y030-1R | 1 | X | X | |||||
| 8 | COVER | R-1019-336-1/08R | 1 | X | X | |||||
| 9 | SUPPORT | R-1019-297-1/08R | 1 | X | X | |||||
| 10 | REEL HUB COMPLETE | R-2013-126-1R | 1 | X | X | |||||
| 11 | COVER | R-1019-338-1/08R | 1 | X | X | |||||
| 12 | INSULATOR RING | D-1869-007-3R | 2 | X | X | |||||
| 13 | TERMINAL BLOCK X4 | 1361-599-328R | 1 | X | X | |||||
| 14 | EURO SLEEVE | 0646-231-005R | 1 | X | X | |||||
| 15 | COVER | R-3019-299-1/02R | 1 | X | X | |||||
| 16 | CORNER CAP | W95X1147R | 4 | X | X | |||||
| 17 | SOCKET X2, X3 | C-2986-001-2R | 2 | X | X | |||||
| 18 | HINGLE AND AXLE | D-3574-011-3/02R | 1 | X | X | |||||
| 19 | HINGLE AND AXLE | D-3574-011-4/02R | 1 | X | X | |||||
| 20 | HINGLE | D-3574-007-1/33R | 2 | X | X | |||||
| 21 | COVER | R-1012-563-1/02R | 1 | X | X | |||||
| 21A | LABEL LINCOLN | R-000-087-1R | 2 | – | X | |||||
| 21B | LABEL SPEEDTEC 200C | R-0010-444-1R | 1 | – | X | |||||
| 22 | STICKER (WIRING DIAGRAM) | R-0010-488-1R | 1 | X | – | |||||
| STICKER (WIRING DIAGRAM) | R-0010-488-2R | 1 | – | X | ||||||
| 23 | STICKER | 2719-107-728R | 1 | X | X | |||||
| 24 | HANDLES | W95X1146R | 2 | X | X | |||||
| 25 | CENTRAL HANDLE | W92X0228-7R | 1 | X | X | |||||
| 26 | LEFT SIDE PANEL | R-1019-341-1R | 1 | X | – | |||||
| 26 | LEFT SIDE PANEL | R-3016-030-1/02R | 1 | – | X | |||||
| 27 | LOCK | 0654-610-004R | 2 | X | X | |||||
| 28 | STICKER (WELDING PARAMETERS) | R-0010-492-1R | 1 | X | – | |||||
| 29 | FERRITE CORE | W5600005R | 1 | X | X | |||||
| 30 | STICKER | 2719-107-732R | 1 | X | X | |||||
| 31 | STICKER (GAS) | 2719-107-733R | 1 | X | X | |||||
| 32 | GAS SOLENOID | 0972-423-040R | 1 | X | X | |||||
| 33 | SWITCH | 1115-270-019R | 1 | X | X | |||||
| 34 | BLACK FRAME SHIELD | 1115-299-073R | 1 | X | X | |||||
| 35 | POWER LEAD | R-0010-435-1R | 1 | X | X | |||||
| 36 | CABLE RELIEF | 1361-599-674R | 1 | X | X | |||||
| 37 | RUBBER CABLE BUSH | 1361-599-198R | 1 | X | X | |||||
| 38 | WORK LEAD | R-5041-277-1R | 1 | X | X | |||||
| 68 | THERMAL CIRCUIT | 1115-299-033R | 1 | – | X |

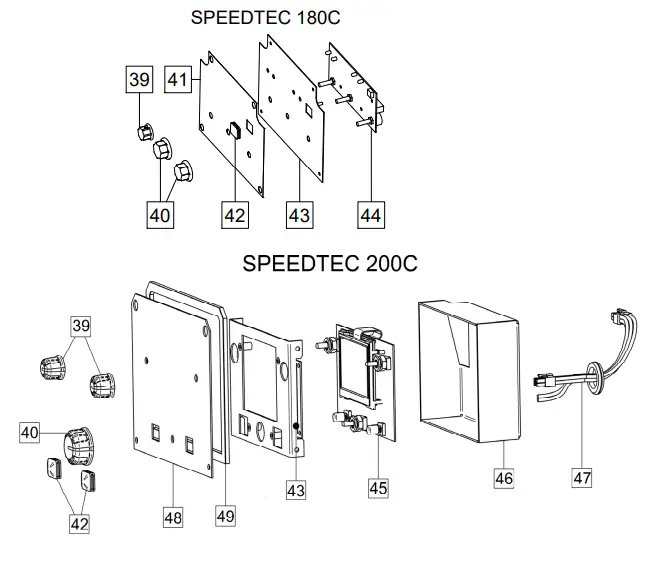

Figure B: Machine Assembly
| Item | Description | Part Number | QTY | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 39 | KNOB | 9ST13639-3 | 1 | X | – | |||||
| 39 | KNOB | 9SM22778-1 | 2 | – | X | |||||
| 40 | KNOBS | 9SS18425-1 | 2 | X | – | |||||
| 40 | KNOB | 9SM22778-2 | 1 | – | X | |||||
| 41 | STICKER | R-0010-443-1R | 1 | X | – | |||||
| 41 | STICKER | R-0010-444-1R | 1 | – | X | |||||
| 42 | RUBBER BUTTOM | 1373-182-005R | 1 | X | – | |||||
| 42 | RUBBER BUTTOM | 1373-182-005R | 2 | – | X | |||||
| 43 | FRONT PANEL | R-3019-268-1/08R | 1 | X | – | |||||
| 43 | FRONT PANEL | R-3019-269-1/08R | 1 | – | X | |||||
| 44 | P.C. BOARD | Y031-1R | 1 | X | – | |||||
| 45 | P.C. BOARD COMPLETE | R-6042-063-1R | 1 | – | X | |||||
| DISPLAY | 0942-172-001R | |||||||||
| 46 | COVER | R-1019-302-1/08R | 1 | – | X | |||||
| 47 | WIRING HARNESS | R-5041-250-3R | 1 | – | X | |||||
| 48 | PANEL | R-0010-724-1R | 1 | – | X | |||||
| 49 | FRONT PANEL GASKET | R-0010-838-1R | 1 | – | X |

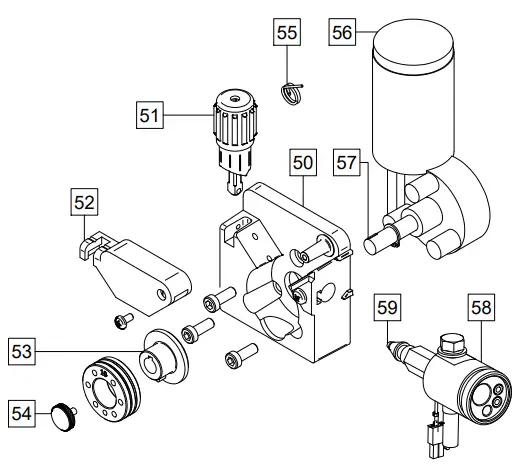

Figure C: Wire Drive Assembly & Euro Socket Assembly
| Item | Description | Part Number | QTY | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| WIRE DRIVE ASSEMBLY | 0744-000-246R | 1 | X | X | ||||||
| 50 | FEED PLATE | 0744-000-248R | 1 | X | X | |||||
| 51 | FIXING ARM COMPL. | 0646-233-015R | 1 | X | X | |||||
| 52 | PRESSURE ARM COMPL | 0744-000-249R | 1 | X | X | |||||
| 53 | DRIVE ROLL ADAPTER | 0744-000-250R | 1 | X | X | |||||
| 54 | FIXING CAP | 0744-000-251R | 1 | X | X | |||||
| 55 | SPRING PRESSURE ARM | 0744-000-252R | 1 | X | X | |||||
| 56 | MOTOR | 0744-000-253R | 1 | X | X | |||||
| 57 | WOODROF KEY | 0646-231-102R | 1 | X | X | |||||
| 58 | EURO SOCKET | R-8040-294-1R | 1 | X | X | |||||
| 59 | OUTLET GUIDE | R-2010-017-1R | 1 | X | X |
Miscellaneous Items (not shown in figure A, B, C)
| Item | Description | Part Number | QTY | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 60 | WIRING HARNESS | R-5041-250-1R | 1 | X | X | |||||
| 61 | GROUNG WIRE | R-5041-250-6R | 1 | X | X | |||||
| 62 | WIRING HARNESS | R-5041-250-8R | 1 | X | X | |||||
| 63 | WIRE | R-5041-275-1R | 1 | X | X | |||||
| 64 | WIRE | R-5041-275-2R | 1 | X | X | |||||
| 65 | WIRE | R-5041-276-1R | 1 | X | X | |||||
| 66 | VRD HARNESS | R-5041-290-1R | 1 | X | X | |||||
| 67 | WIRE | R-5041-401-1R | 1 | – | X |

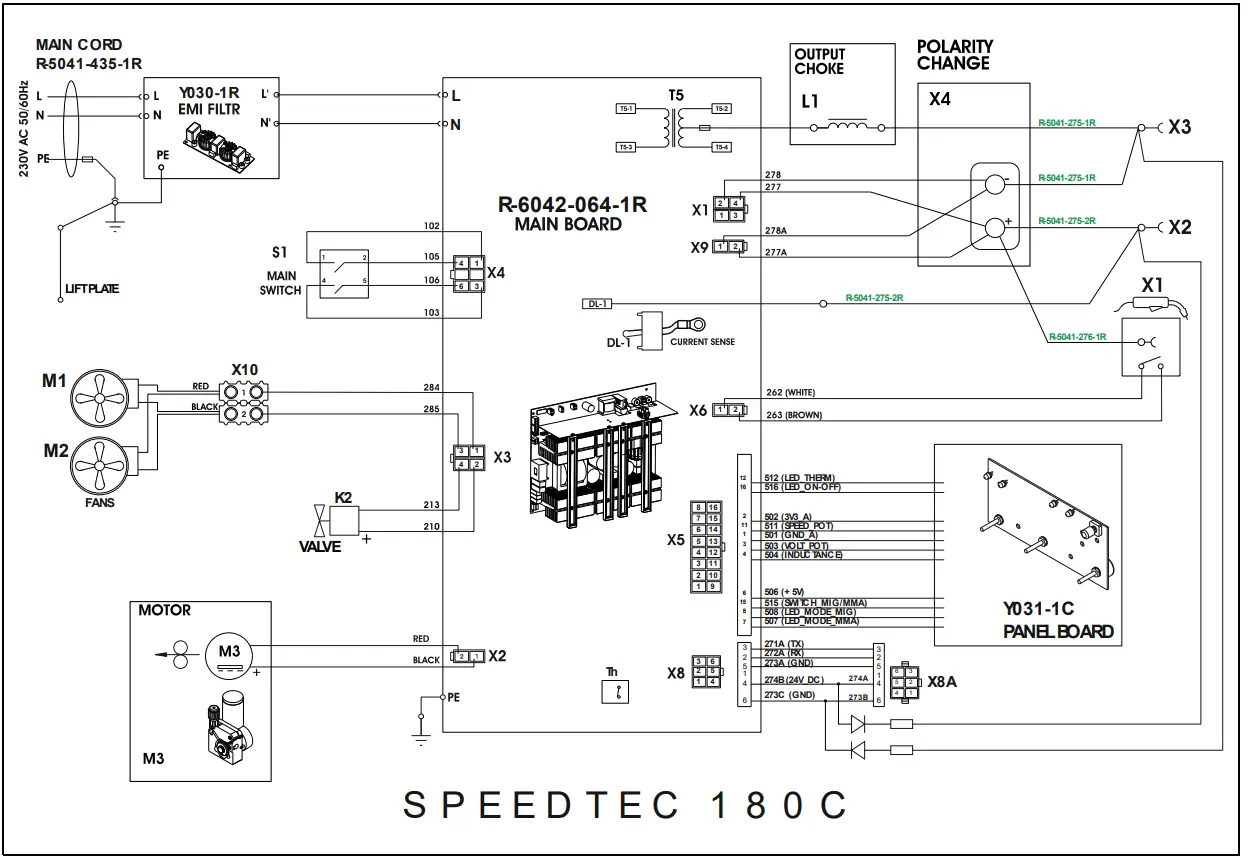

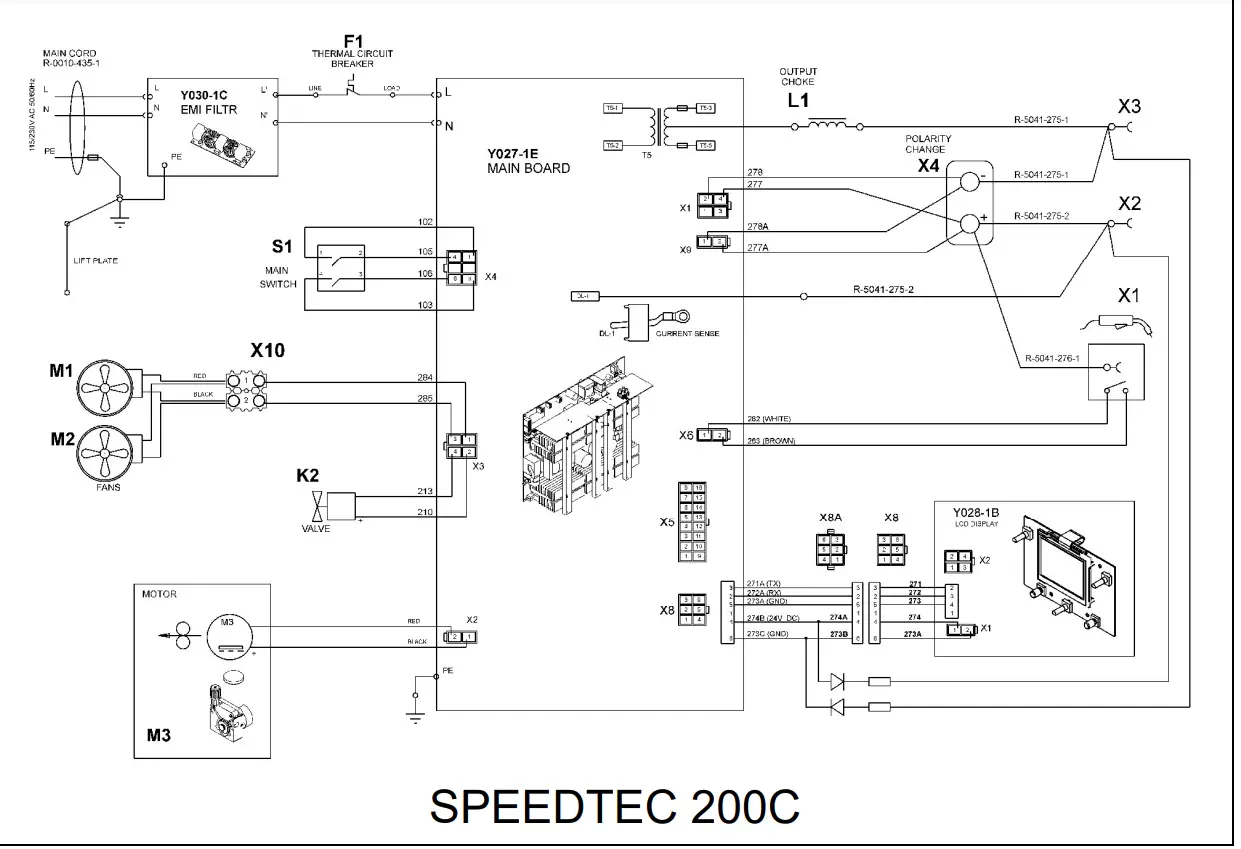

Electrical Schematic
CODE: 50268
CODE: 50328
WEEE
| Recycle | ST | ||||||||||
| Fe | Al | Cu | Brass | Boards | Plastics | Liquid Cristal | External Electric Cables | Capacitors | |||
| Description | Ref. | ||||||||||
| RACK | 1 | X | |||||||||
| COVER | 2, | X | |||||||||
| COVER | 8, 11, 16, 22, 45 | X | |||||||||
| LOCK | 27 | X | |||||||||
| LEFT SIDE PANEL | 26 | X | |||||||||
| FAN | 4 | X | X | ||||||||
| HINGLE | 19, 20, 21 | X | |||||||||
| P.C. BOARDS | 5, 7, 40 | X | |||||||||
| P.C. BOARD | 44 | X | X | ||||||||
| WIRE REEL SPINDLE | 10 | X | X | ||||||||
| SUPPORT | 9 | X | |||||||||
| EURO SOCKET | 23 | X | |||||||||
| EURO SLEEVE | 15 | X | |||||||||
| SOCKET | 18 | X | X | X | |||||||
| SWITCHES | 30 | X | X | ||||||||
| BLACK FLAME SHIELD | 31 | X | |||||||||
| KNOB | 36, 37 | X | |||||||||
| BUTTON | 42 | X | |||||||||
| GAS SOLENOID | 29 | X | X | X | |||||||
| INSULATOR RING | 13 | X | ||||||||
| WIRE FEEDER | 12 | X | X | X | ||||||
| TERMINAL BLOCK | 14 | X | X | |||||||
| POWER LEAD | 32 | X | X | X | ||||||
| CORNER CAP | 17 | X | ||||||||
| HANDLE | 24 | X | ||||||||
| HANDLE | 25 | X | ||||||||
| WORK LEAD | 34 | X | ||||||||
| RUBBER CABLE BUSH | 3, 35 | X | ||||||||
| CABLE RELIEF | 33 | X | ||||||||
| CHOKE | 6 | X | X | X | ||||||
| FRONT PANEL | 39, 43 | X | X | |||||||
| FRONT PANEL GASKET | 49 | X | ||||||||
| PANEL | 48 | X | ||||||||
| WIRING HARNESS | 46 | X | ||||||||
| THERMAL CIRCUIT | 68 | X | X | X |
