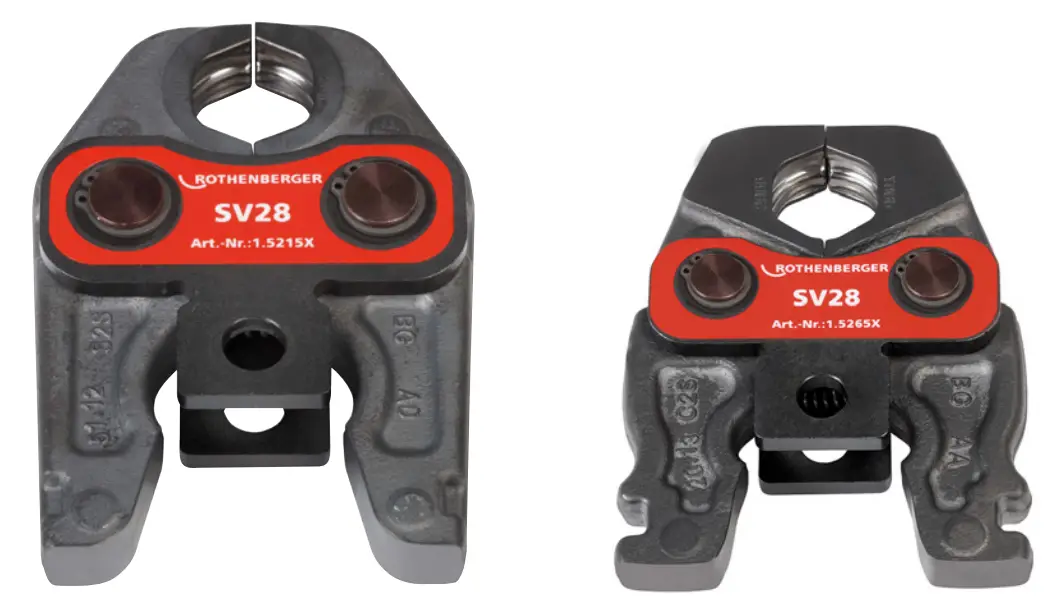

PRESSBACKEN, Press Jaws Standard and Compact
Instructions for use
PRESSBACKEN, Press Jaws Standard and Compact
Operating
Markings in this document:
 | Danger! This sign warns against the danger of personal injuries. Injury / Crushing. |
 | Danger! Possible hazard from chipping. |
 | Caution! This sign warns against the danger of property damage and damage to the environment. Important note: Failure to comply can lead to malfunctions. |

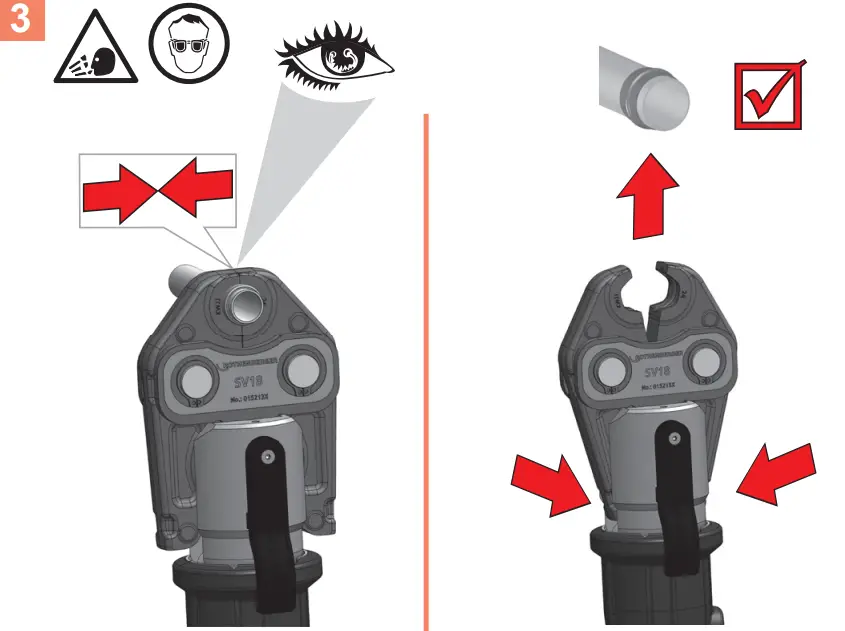

 | Caution! Use eye protection. Failure to comply can result in health damage. |
 | Caution! Read and follow the operating manual. |
 | Caution! Visual inspection. |
Intended use

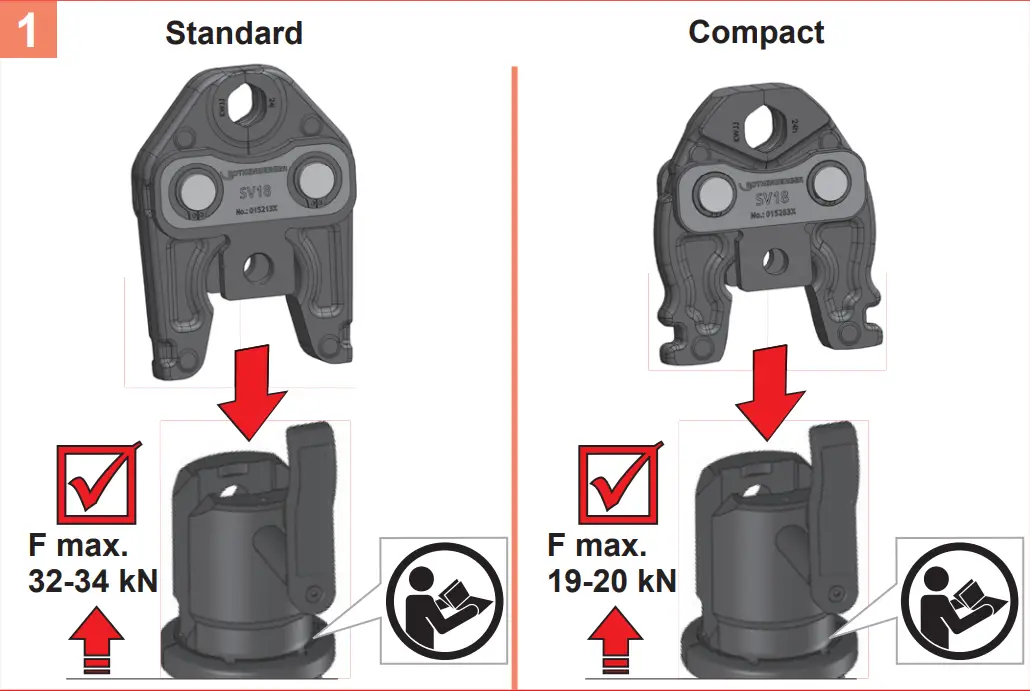

ROTHENBERGER Standard pressing jaws are exclusively intended for use with ROTHENBERGER pressing tools as well as with pressing units with compatible jaw holders and a constant axial thrust of 32 to 34 kN (Standard pressing jaws), 19 to 20 kN (Compact pressing jaws). Any other use or uses which go beyond this are not valid for intended use. ROTHENBERGER will not be liable for any damage resulting from invalid use. The user will be solely responsible for the risk. Another component part of the intended use is the reading and following of the Operating Instructions and the Inspection and Maintenance Conditions.
Operating
The jaw may only be operated by qualified specialist craftsmen from the sanitation/heating/air conditioning area after successful training.
| Inspection: | After 10.000 pressings / 12 months. |
| Maintenance: | We recommend that repairs be done only by our authorized service facilities. Have your jaw checked at the latest 1 year after the purchase or after 10.000 pressings (according to which occurs first) by an authorised ROTHENBERGER testing centre, and repeat these checks at the latest 1 year or another 10.000 pressings after the previous inspection. During inspection the press jaws are checked for operating and functional safety and wear parts (e.g. springs) are exchanged. Jaws which are functionally and operationally safe are returned to you. |

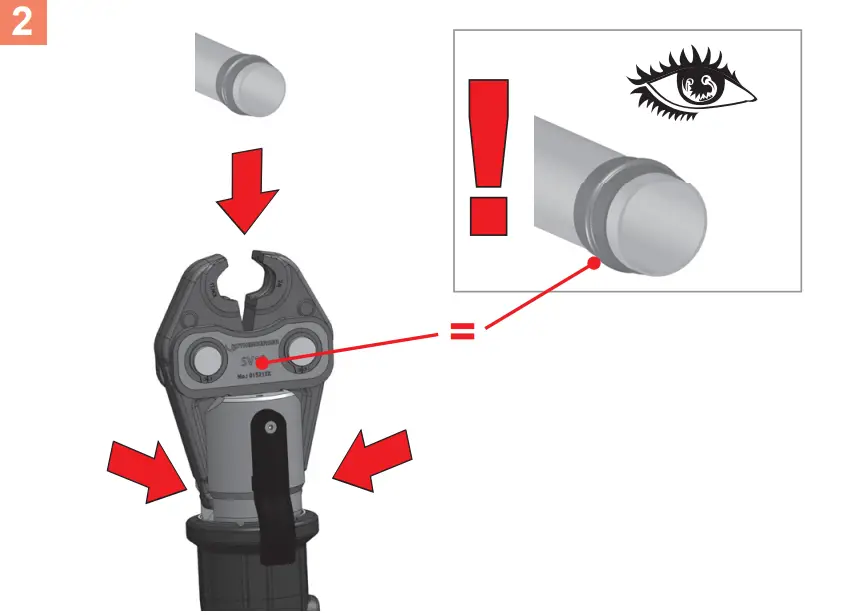

| Caution: | The nominal width and the pressing contour of the fittings must match the nominal with and contour of the press chain. Non-compliance leads to incorrect compression. Follow the fitting manufacturer’s assembly instructions. |
