BHQ-138223 Nightclaw Doughnut Scales
User Manual
BHQ-138223 Nightclaw Doughnut Scales
Thank you for purchasing this Oknife product.
Please read this manual carefully before use and keep it for future reference!

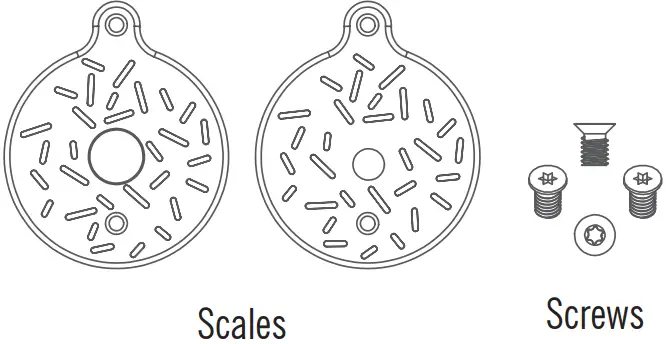

IN THE BOX
SPECIFICATIONS
| Material | Pink G10 |
| Weight | UV printing |
| Surface treatment | 13.9g / 0.49oz |
DISASSEMBLY AND INSTALLATION
First, use a T6 torx bit to remove the original NIGHTCLAW scales, then install the new ones.
Note: The NIGHTCLAW and T6 torx driver are not included in the package.

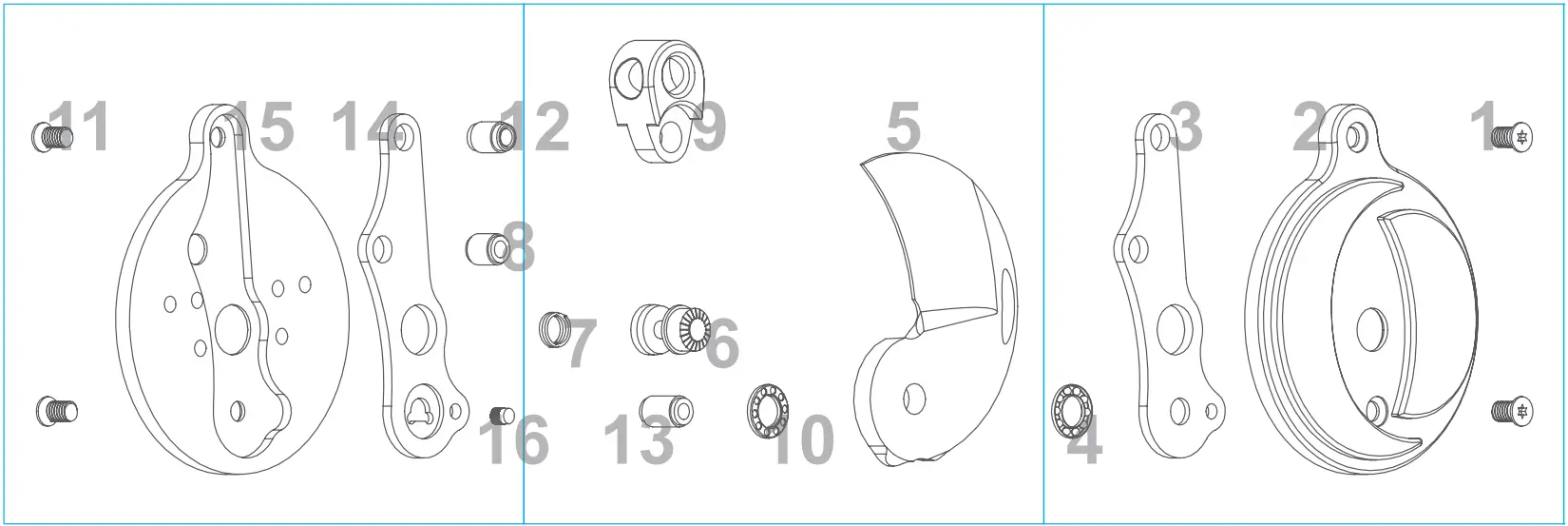

NIGHTCLAW PARTS DETAILS
| 1. Screws 2. Right Scale 3. Right Liner 4. Ball Bearing 5. Blade 6. Button 7. Spring 8. Spacer | 9. Lanyard Ring 10. Ball Bearing 11. Screws 12. Spacer 13. Pivot 14. Left Liner 15. Left Scale 16. Stopping Pin |
NOTE: After opening the knife, make sure the blade is securely locked; no blade wobble should occur. The blade’s tip is fitted between the two handles when the blade is closed.
If you need further instruction, please go to our official YOUTUBE channel OKNIFE WORLD to view detailed instructions.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
