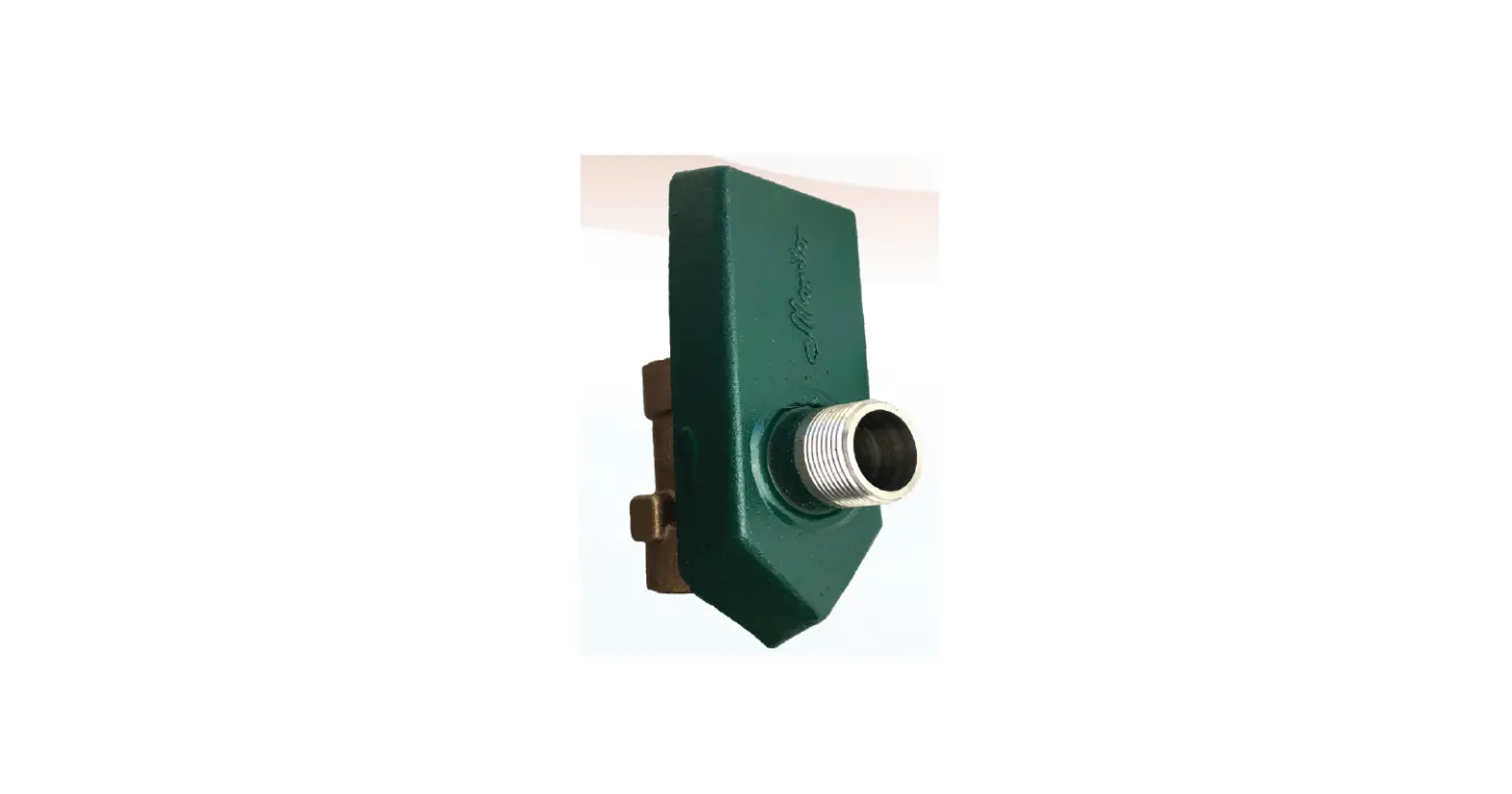

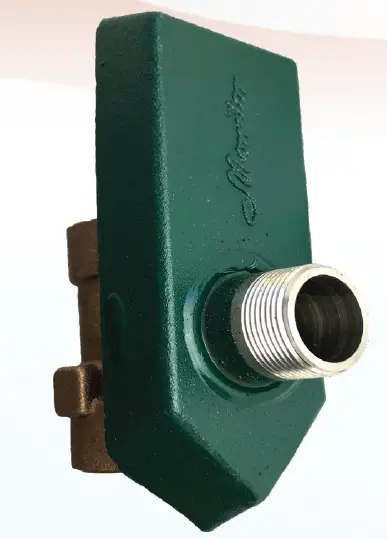

BAKER WATER SYSTEMS Monitor Weld-On Pitless Adapter
Product Information
The BEZ Pitless Adapters are lead-free adapters manufactured by Baker Water Systems. They contain less than 0.25% lead which is required by NSF/ANSI 372. These adapters are available in two types: Weld-On and Clamp-On. The Weld-On adapters have six different models that vary in well size, drop pipe size, discharge pipe size, weight, and maximum safe load rating. The Clamp-On adapters have four different models that vary in well size, drop pipe size, weight, and lead-free feature. The adapters are suitable for use in water systems.
Product Usage Instructions
- Choose the appropriate model of BEZ Pitless Adapter based on the well size, drop pipe size, and discharge pipe size.
- Ensure that the adapter is lead-free and suitable for your water system.
- Install the adapter by welding or clamping it onto the well casing.
- Connect the drop pipe to the adapter using the female NPT connection.
- Connect the discharge pipe to the adapter using the male NPT connection.
- Ensure that the adapter is securely fastened and can handle the maximum safe load rating.
- Test the water system to ensure that it is working properly.
- Maintain the adapter regularly to prevent any damage or malfunction.
Features
- 304 stainless steel: nipple, flange, support pins, straps, and hardware
- Strong cast-steel housing
- Positive stop feature on interior housing assures proper O-ring seal, prevents seizing
- High quality lead-free, red brass drop fitting
- Chamfered pull port with large drain hole prevents chlorine buildup on threads
- Drop fitting contains a long sweep 90-degree turn
- Pump is more centrally located in the well
- Large neoprene O-ring
- Pressure rated at 100 PSI
- Designed, fabricated, and assembled in the USA
- NSF/ANSI 372 certified
- Conforms to Water Systems Council PAS-97 (2019)
* Contains less than 0.25% lead as required by NSF/ANSI 372
BEZ WELD-ON PITLESS ADAPTERS
| Model No. | Well Size | Drop Pipe Size | Discharge Pipe Size | Weight (LB) | Max. Safe Load Rating | Lead Free |
| 6123BEZLF | 4”ID, 5”ID, 6”ID, 7”OD | 1” Female NPT | 1” Male NPT | 6 | 1,600 | Yes |
| 6123FBEZLF Flat Bottom | 4”ID, 5”ID, 6”ID, 7”OD | 1” Female NPT | 1” Male NPT | 6 | 1,600 | Yes |
| 6125BEZLF | 4”ID, 5”ID, 6”ID, 7”OD | 11/4” Female NPT | 11/4” Male NPT | 7.4 | 3,000 | Yes |
| 6125FBEZLF Flat Bottom | 4”ID, 5”ID, 6”ID, 7”OD | 11/4” Female NPT | 11/4” Male NPT | 7.4 | 3,000 | Yes |
| 62FBEZLF | 6”ID, 7”OD, 8”ID | 2” Female NPT | 2” Male NPT | 13 | 6,000 | Yes |
| 8123BEZLF | 8”ID, 10”ID, 12”ID | 3” Female NPT | 3” Male NPT | 27 | 10,000 | Yes |
| 10144BEZLF | 10”ID, 12’”ID, 14”OD | 4” Female NPT | 4” Male NPT | Coming Soon | Coming Soon | Yes |
| Model No. | Well Size | Drop Pipe Size | Discharge Pipe Size | Weight (LB) | Lead Free |
| 51CBEZLF | 5”ID | 1” Female NPT | 1” Male NPT | 11.2 | Yes |
| 5125CBEZLF | 5”ID | 11/4” Female NPT | 11/4” Male NPT | 11.5 | Yes |
| 61CBEZLF | 6”ID | 1” Female NPT | 1” Male NPT | 11.8 | Yes |
| 6125CBEZLF | 6”ID | 11/4” Female NPT | 11/4” Male NPT | 13.65 | Yes |
Pitless adapters attach to the well casing to provide a sanitary and frost-proof seal between the casing and the water line. This prevents the water from freezing and allows for convenient access to the well and well components without having to dig around the well. The adapter connects to the well casing below the frost line. Water from the well is diverted horizontally at the adapter preventing it from freezing. In the past, a well pit was the most common way to access the well pipe connections. Well pits are generally unsanitary, due to drainage into the well from surface and near-surface sources. Pitless well construction reduces the potential for contaminated water to enter the well, and is significantly more economical than a well pit.
