Whirlpool AKZ9 7890 IX Absolute Electric Oven
Description
6th Sense Absolute
Three steps recipes. Always reach outstanding results. Thanks to the central knob, you can set your oven in three simple steps. Select one of the 6 pre-set recipes and your oven will automatically set the dedicated cooking function and propose the appropriate time and temperature range.
Ready2cook
No pre-heating is required. The Ready2Cook function uses a powerful convection system to quickly reach the right temperature, and completely eliminate the need for pre-heating.
Cook3
No aroma mixing. With the innovative Cook3 function, you can cook up to three separate dishes at the same time, without the risk of aromas mixing.
Forced Air
Seal in the taste. Thanks to the Forced Air technology, preheated air is circulated inside your Oven using an innovative convection system, giving you moist, juicy cooking results.
Soft closing
Slow-motion closing. Thanks to slow-closing hinges, the oven door shuts effortlessly, with a soft and silent motion.
Urban aesthetic
The Urban Collection. Admire the beauty of the performance. With a futuristic design and unparalleled performance, the Urban collection is designed for modern, high-tech kitchens. Equipped with innovative 6TH SENSE technology, Urban ovens can be set in three simple steps for perfect results. Maximum flexibility and ease of use with a distinctive look and original finishes.
XXL cavity
All the space you need. The XXL cavity in your oven has a capacity of 75 liters with 5 different shelf positions available.

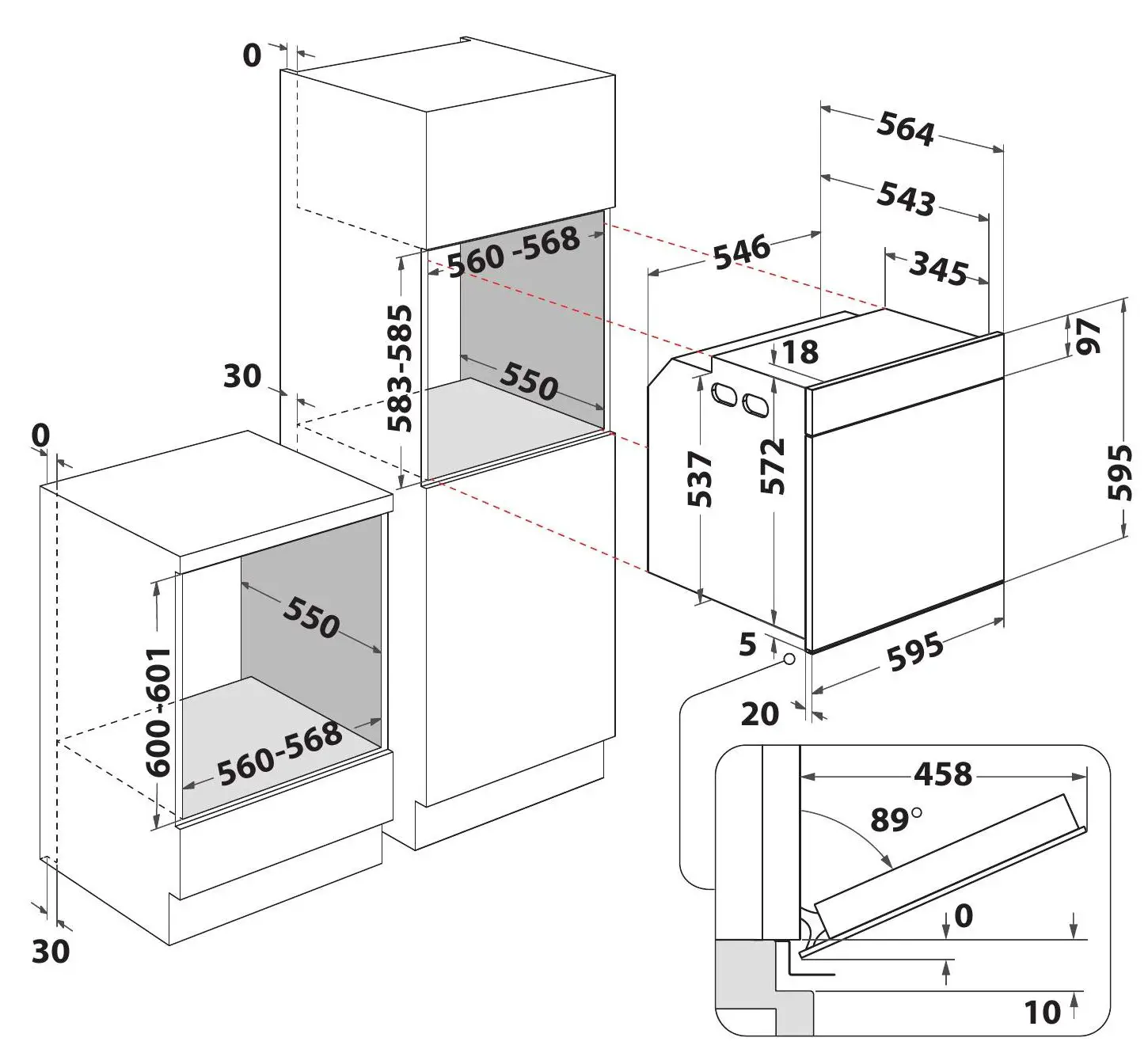

Product Dimensions
Specifications
- 6TH Sense technology
- SmartClean
- Energy class A+
- Cavity 73 L
- Cook3
- Ready2Cook
- Forced Air Fan Cooking
- Turbo Fan
- Grill
- Easy Clean Enamel Interior
- Turbo grill function
- Maxi cooking
- Pastry function
- Soft closing door
- Favorite Recipes
- Special functions
- Fast Pre-Heating
Features
| MAIN FEATURES | |
| Product Group | Oven |
| Commercial code | AKZ9 7890 IX |
| The main color of the product | Inox |
| Construction type | Built-in |
| Type of control | Mechanical and electronic |
| Type of control settings | – |
| Are any hobs controls integrated? | No |
| Which kind of hobs can be controlled? | – |
| Automatic programs | Yes |
| Current (A) | 16 |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50/60 |
| Length of Electrical Supply Cord (cm) | 90 |
| Plug type | No |
| Depth with open door 90 degrees (mm) | – |
| Height of the product | 595 |
| Width of the product | 595 |
| Depth of the product | 564 |
| Minimum niche height | 0 |
| Minimum niche width | 0 |
| Niche depth | 0 |
| Net weight (kg) | 33 |
| Usable volume (of the cavity) | 73 |
| Integrated Cleaning system | Hydrolytic |
| Grids of the cavity | 1 |
| Trays | 2 |
| TECHNICAL FEATURES | |
| Timer | – |
| Time control | Electronic |
| Time-setting options | Start and Stop |
| Safety device | – |
| Interior light | Yes |
| Number of interior lights of the cavity | 1 |
| Position of interior lights of the cavity | Rear |
| Oven guides of the cavity | Grids |
| The probe of the cavity | No |
PERFORMANCES
| Energy input | Electric |
| Type of energy of the cavity | Electricity |
| Energy efficiency class – NEW (2010/30/EU) | A+ |
| Energy consumption per cycle conventional – NEW (2010/30/EU) | 0.91 |
| Energy consumption per cycle forced air convection – NEW (2010/30/EU) | 0.7 |
FAQ’s
The Whirlpool AKZ9 7890 IX oven has a capacity of 73 liters.
The Whirlpool AKZ9 7890 IX is an electric oven with multiple cooking functions.
The Whirlpool AKZ9 7890 IX oven has 15 cooking functions, including conventional, fan-assisted, grill, and steam cooking.
Yes, the Whirlpool AKZ9 7890 IX oven has a pyrolytic self-cleaning function that heats the oven to a high temperature, burning off any food residue and leaving ash that can be easily wiped away.
Yes, the Whirlpool AKZ9 7890 IX oven comes with a temperature probe that allows you to monitor the internal temperature of your food while it cooks.
Yes, the Whirlpool AKZ9 7890 IX oven has a digital display that shows the cooking time, temperature, and selected functions.
The Whirlpool AKZ9 7890 IX oven has a maximum power consumption of 3650 watts.
Yes, the Whirlpool AKZ9 7890 IX oven comes with a baking tray, grill rack, and a telescopic shelf. Additional accessories such as a pizza stone and a baking sheet are also available.
The Whirlpool AKZ9 7890 IX oven is rated A+ for energy efficiency, which is one of the highest ratings available for ovens.
As a general rule, it usually takes about 12-15 minutes to preheat an oven to 350ºF, with a five-minute increase for every 100 degrees over 350ºF. Model specifics may vary, so check your oven’s manual for exact instructions and preheat times
Whirlpool brand offers a wide variety of conventional gas and electric ranges, as well as wall ovens, to complement a separate cooktop.
If your Whirlpool oven isn’t heating up at all, it could be because the bake element is broken or damaged. Start by visually inspecting the heating element for physical damage. If everything looks normal, the element will need to be tested with a multimeter.
When the set cook time ends, the oven will shut off automatically, and “End” will appear on the display.
Download this PDF Link: Whirlpool AKZ9 7890 IX Absolute Electric Oven Specifications and Datasheet
