GAMING HEADSET
User Manual (PG-R015)

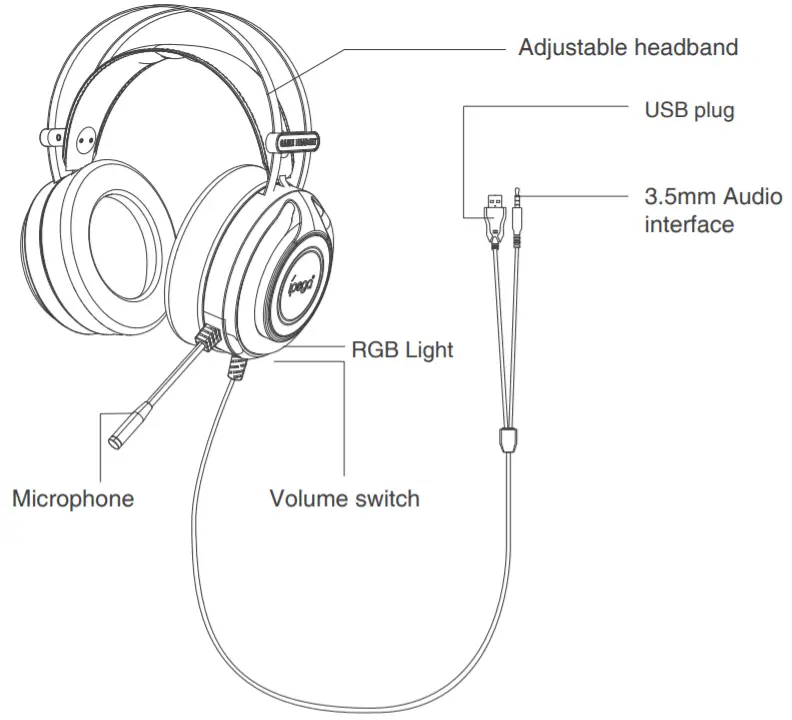

Products Appearance
Application Instruction:
- Compatible with N-S 、N-SL 、 P4 、PC 、Xb/ Mobile/ Tablets/ PC and other audiovisual devices with 3.5mm audio interface.
- Ultra-thin Speaker diaphragm, high-quality stereo sound, superior sound quality.
- High sensitive noise-canceling design, the adjustable microphone can fix at the perfect angle, deliver a more accurate, clear, and smooth voice.
- Ergonomically designed adjustable headband suitable for both adults and children.
- Soft skin-friendly leather ear cushions and headband cushions, make the headphone comfortable for a long time wearing.
- With volume control, bring you a vivid sound field.
- Colorful lights on the left and right sides of the headset (requires 5V power supply through USB port)
Instruction:

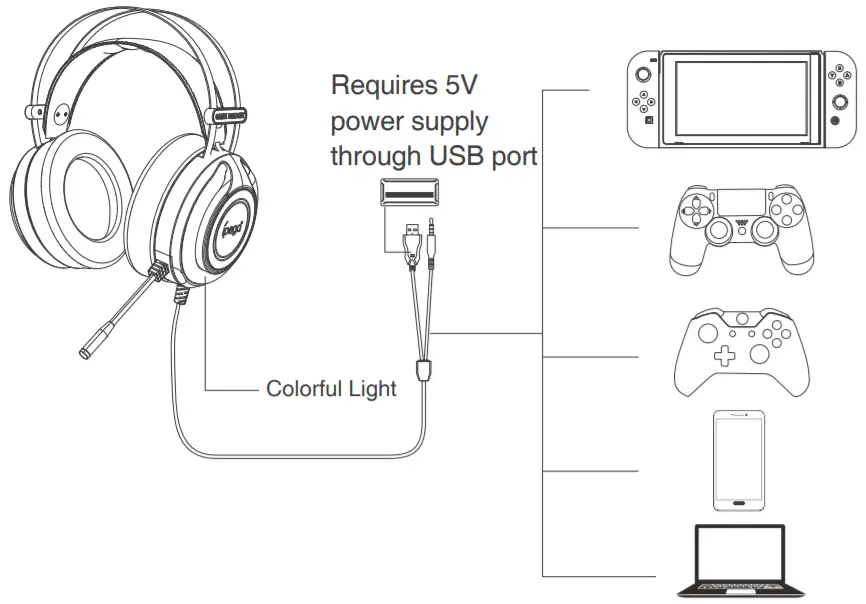

- Adjust the headband of the headset to the proper tightness, and adjust the volume of the headset to a moderate level. Insert the 3.5mm interface into the equipment such as N-S 、N-SL 、 P4 、PC 、Xb series and mobile phones.
- If you want to turn on the colorful lights on the left and right sides of the headset, please connect the USB interface to the computer’s USB port or another 5V power source with a USB interface.
Product parameter ：
| Product feature | Description | Electrical parameter | Description |
| Cable length | 2.2 meters | Speaker diameter | 0)50 mm |
| Headset interface | 3.5mm audio interface | Impedance | 12 0+15% |
| Working | -20-60°C | Sensitivity | 108 ±3dB |
| USB | 4.75-5.25V | Frequency range | 20HZ-20KHZ |
| Maximum | 20mW voltage 1.0V | Rated power input | 10mW-20mW |
| Microphone | 90×9.0mm | Mic sensitivity | -38±3dB |
Notes:
- Please do not store this product in wet or high-temperature areas.
- Don’t knap, beat, drub, pierce, or try to decompose this product, to avoid unnecessary damage to the product.
- Nonprofessional personnel should not disassemble the product, otherwise, it will not be covered in the after-sales warranty service.

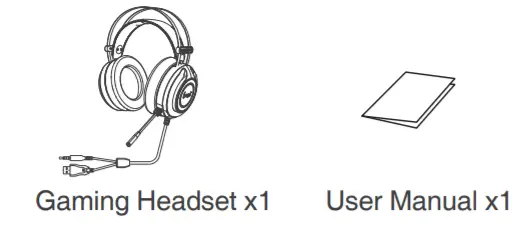

Accessories List
