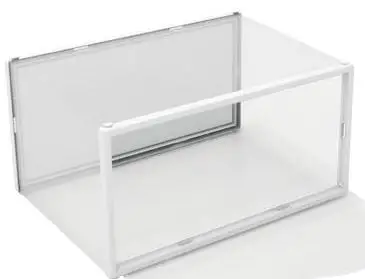

ovela OVSSTDBS6WA Shoe Storage Display Box Side Drop
COMPONENTS
Side Drop Panel
Side Panel
Middle Section
ASSEMBLY
Step 1: Open up the middle section.

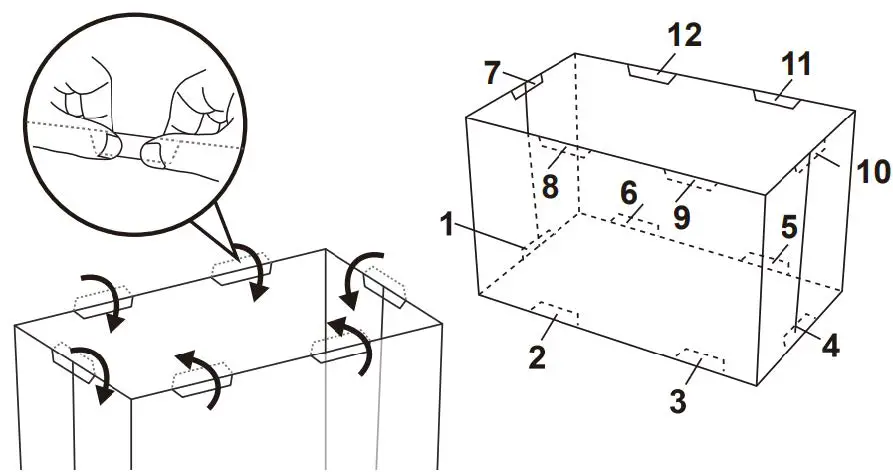

Step 2: Fold the 12 tabs inwards.

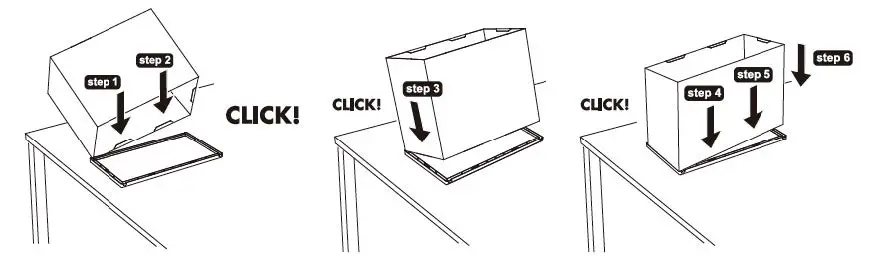

Step 3: Attach the side panel to the middle section ensuring the edges align with the slots in the panel. The panel will ‘click’ into place when it is properly attached.

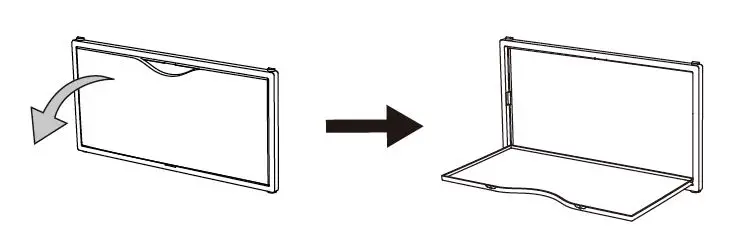

Step 4: Open the door on the side drop panel.

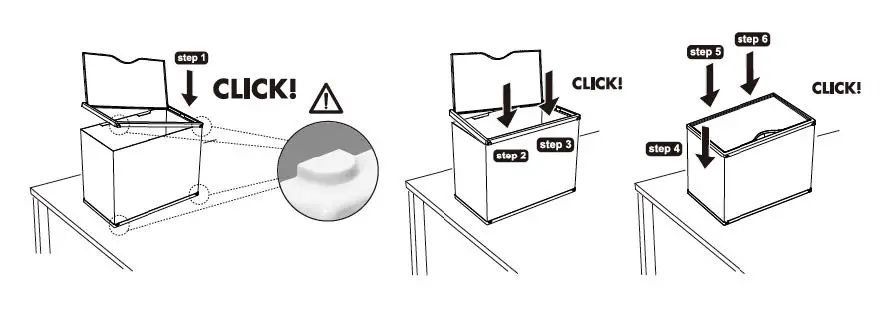

Step 5: Attach the front panel to the middle section ensuring the edges align with the slots on the panel. The panel will ‘click’ into place when it is properly attached.
Ensure the feet are on the same side.
Step 6: In order to stack boxes stably, the small plastic feet on the edges of the front and door frame should be facing upwards.

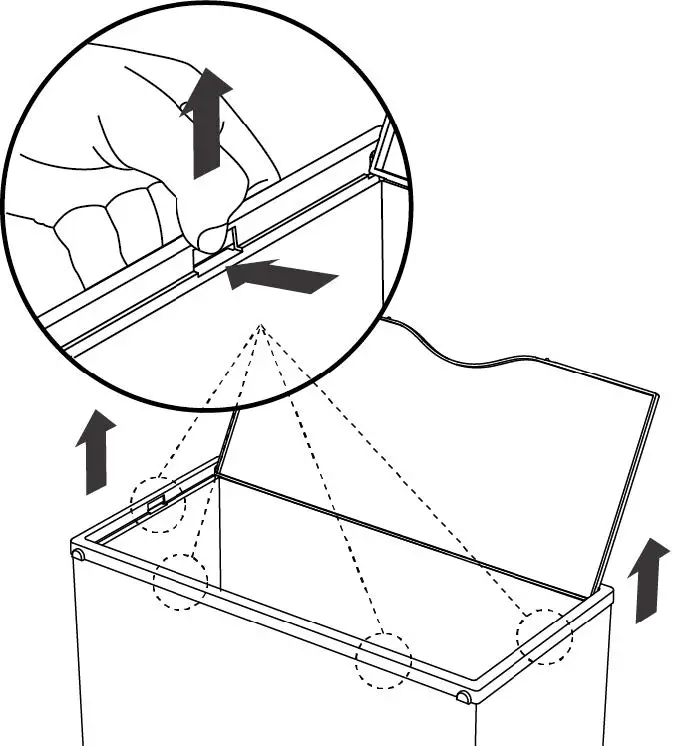

Step 7: To dismantle the boxes, press the buckle and pull the panels away from the middle section.
Need more information?
We hope that this user guide has given you the assistance needed for a simple setup. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
