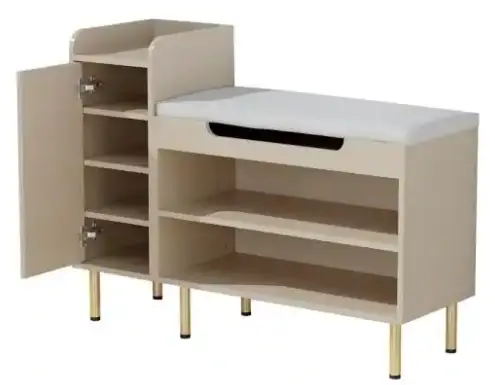

FUFU GAGA DRF-KF310016-01 Gold Shoe Storage Bench with 4 Closed Storage Racks and 2 Open Shelves
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.

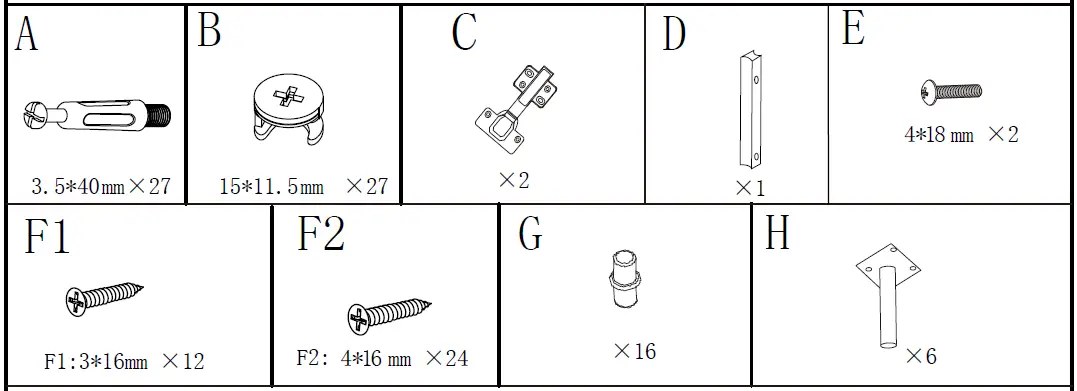

TOOLS

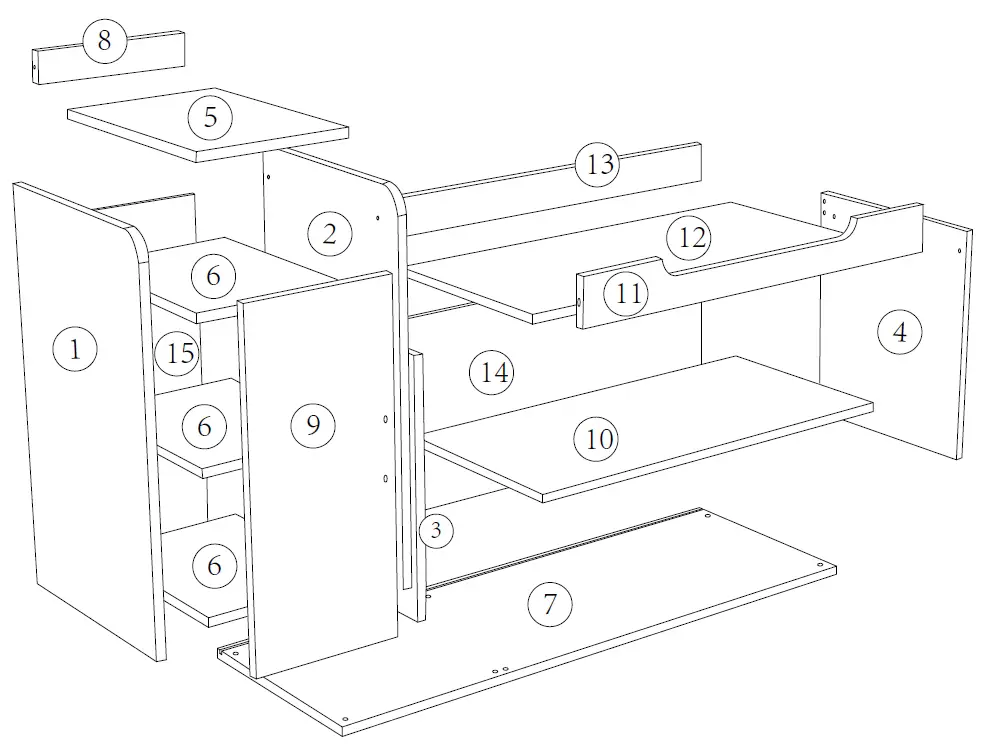

Plate splitting diagram
installation drawing 1

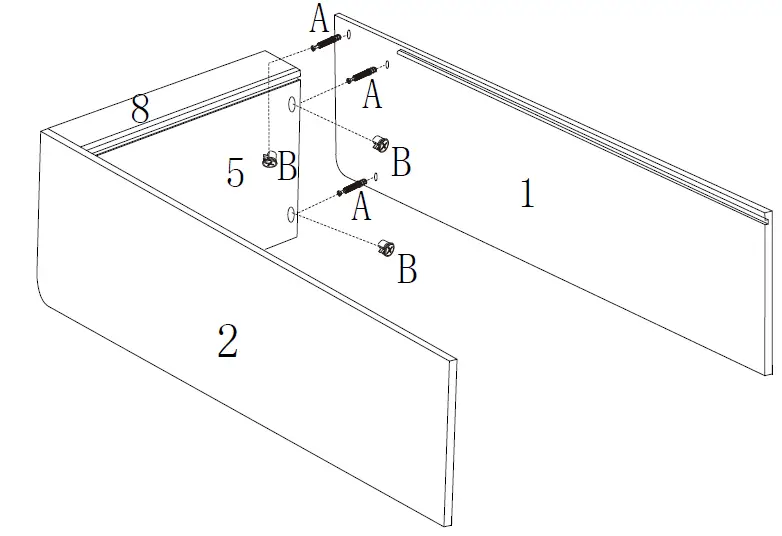

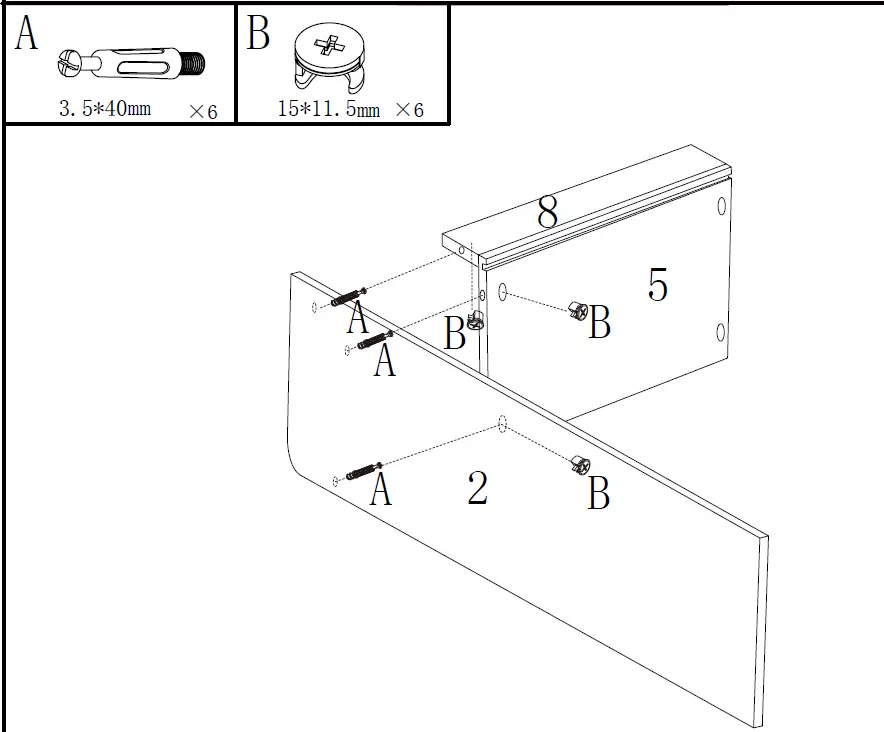

Screw A into the embedded hole of No. 2 plate, put No. 2 plate flat, insert No. 5 plate and No. 8 plate into A, and finally lock it with B.
Screw A into No. 1 board, connect No. 5 board and No. 8 board, and lock it with B.
installation drawing 2

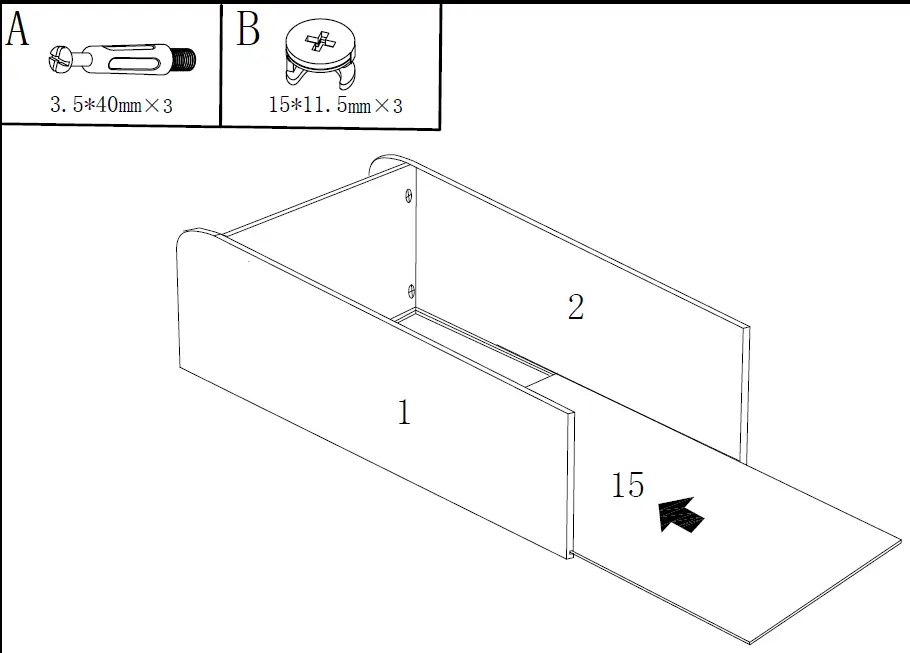

Insert No. 15 plate into the slots of No. 1 plate and No. 2 plate

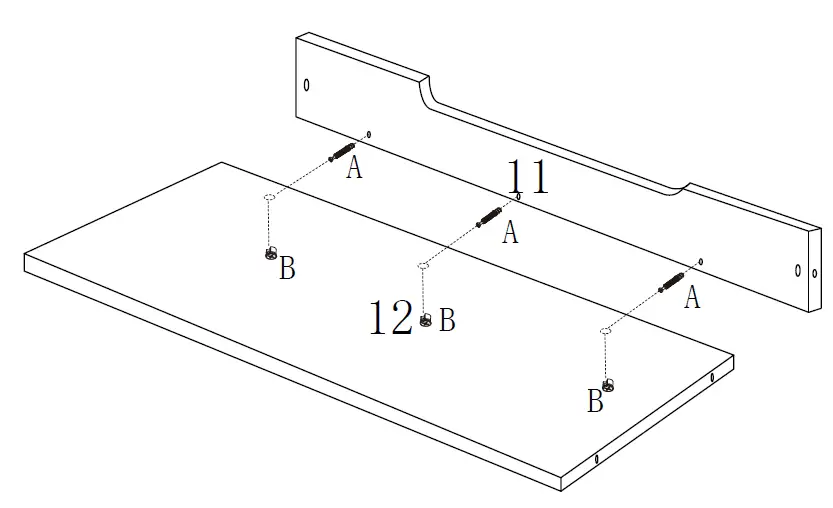

Screw A into No. 11 plate, connect No. 12 plate, lock with B
installation drawing 3

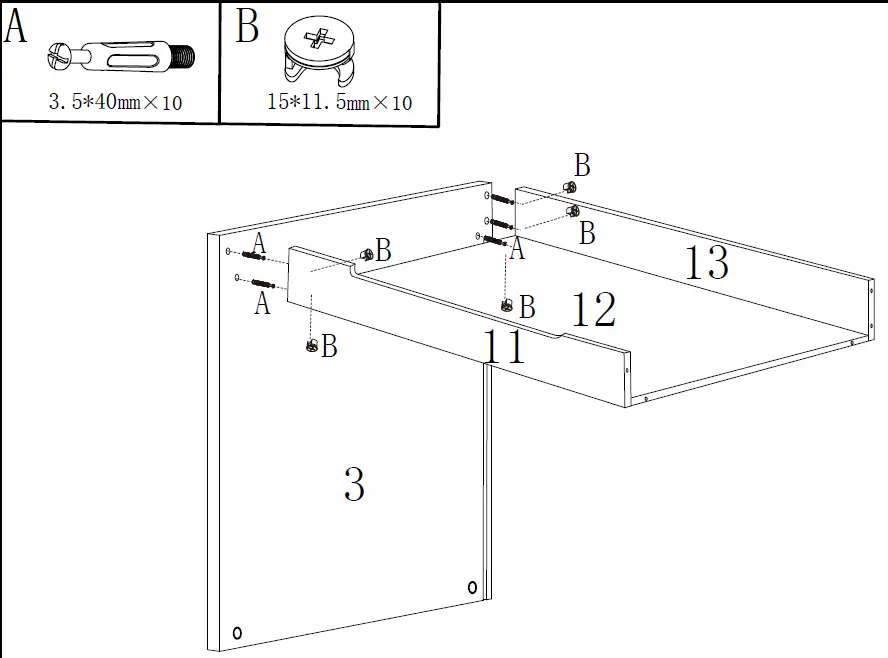

Screw A into the embedded hole of No.3 plate, connect No.11 and No.12 plate with No.3 plate, then connect No.13 plate with No.3 plate, and finally lock it with B

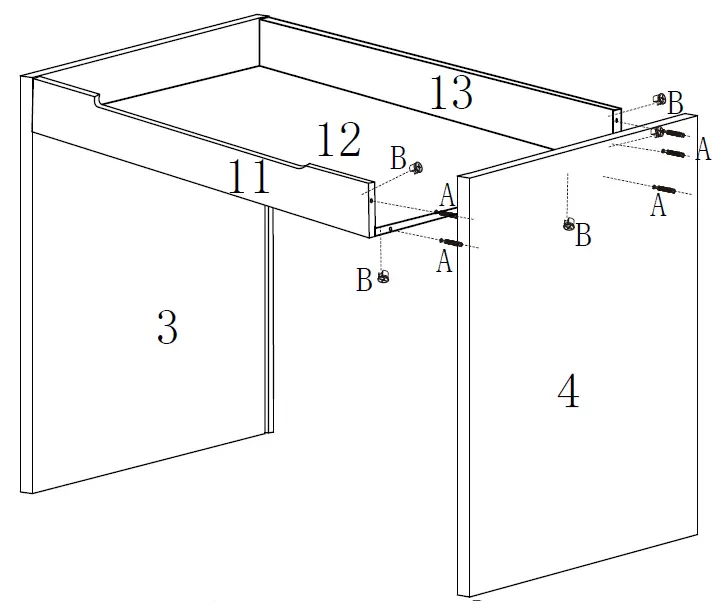

Connect plate No. 4 to plate 11,12.13 and lock with B
installation drawing 4

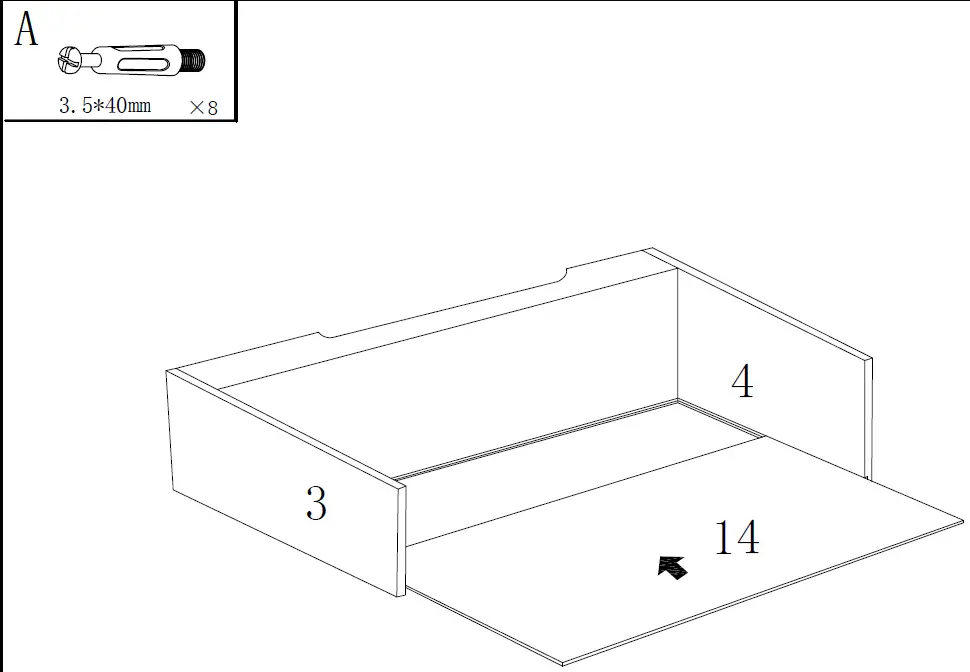

Insert No. 14 plate into slots of No. 3 plate and No. 4 plate

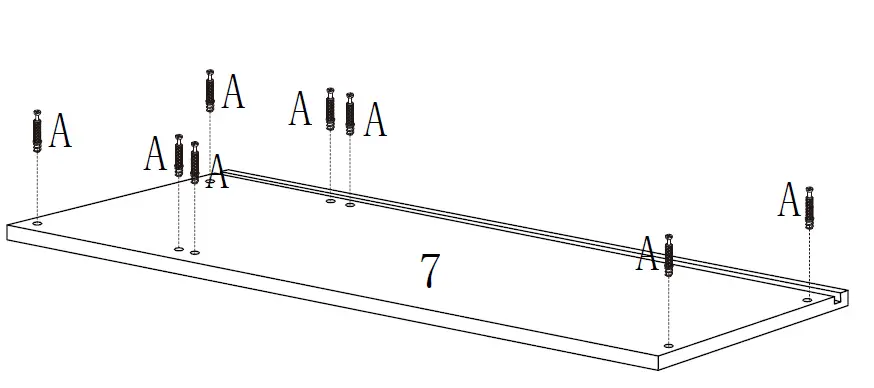

Screw A into board 7
installation drawing 5

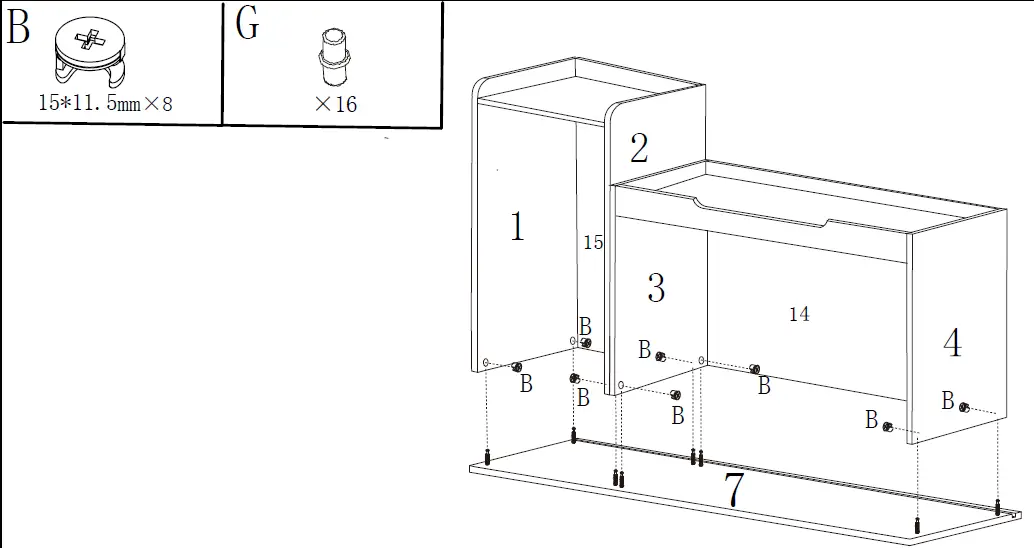

Connect the two frames assembled above to the No.7 plate，With lock B

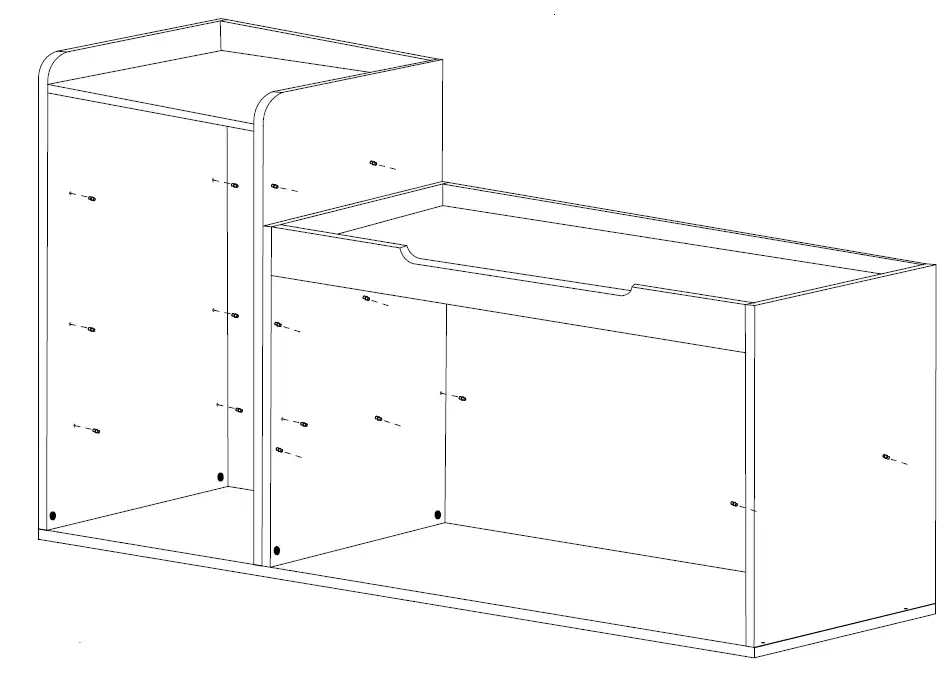

Insert G into the inner hole of the plate
installation drawing 6

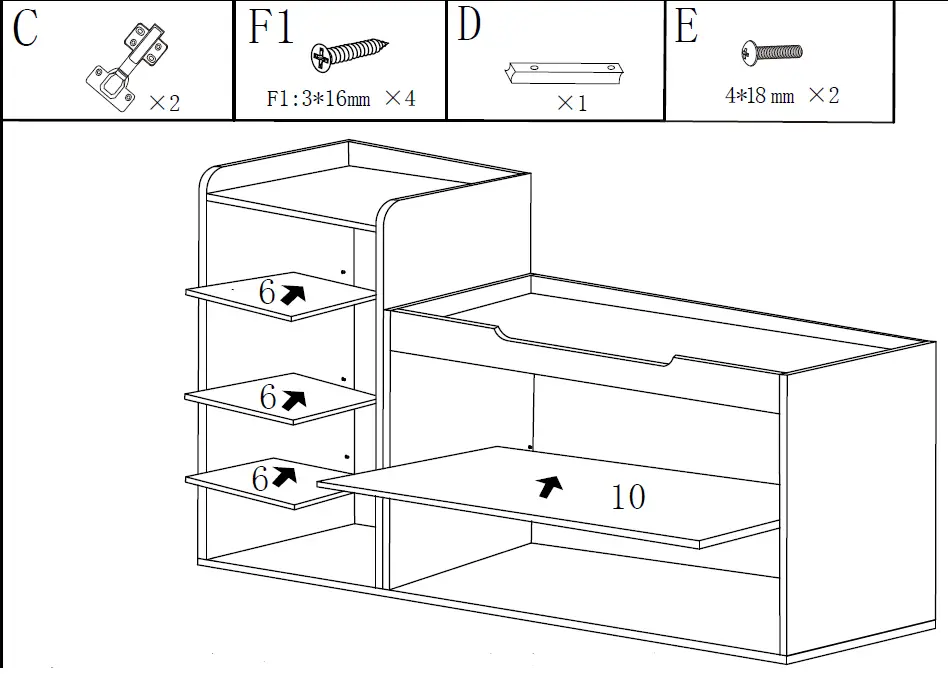

Put three No.6 boards and No.10 boards in the cupboard

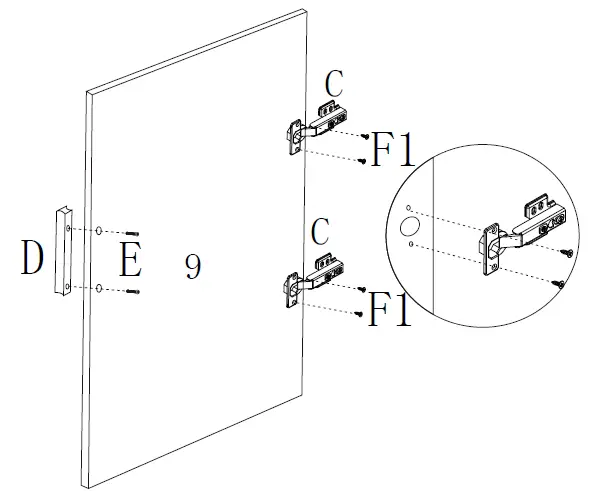

Fix handle D on No. 9 plate with E, and fix handle C on the round hole of No. 9 plate with F1
installation drawing 7
Connect the fixed C in plate 9 to plate 1 with F1

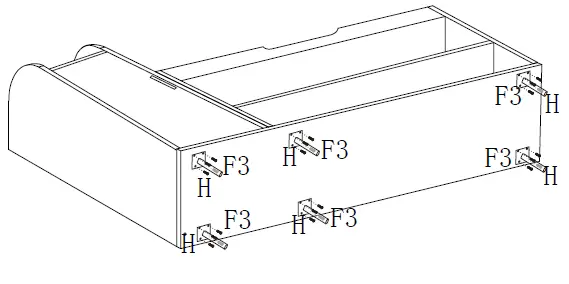

Connect foot H to bottom of No.7 plate with F3
