Two Stage General Purpose RFI Power Line Filter
R Series
- Dual T section RFI filter provides premium performance
- Well suited for low impedance loads where noisy RFI environments are present
- Controls pulsed, continuous and/or intermittent interference
- ER models offer low leakage current without deterioration of insertion loss
Ordering Information
*IEC 60320-1 C14 inlet mates with C13 connector
Specifications
Maximum leakage current for each Line to Ground:
| VR Models | ER Models | |
| @ 120 VAC 60 Hz: | .4 mA | .21 mA |
| @ 250 VAC 50 Hz: | .7 mA | .36 mA |
Hipot rating (one minute):
| The line to Ground: | 2250 VDC |
| Line to Line: | 1450 VDC |
Rated Voltage (max): 250 VAC
Operating Frequency: 50/60 Hz
Rated Current: 1 to 20A
Operating Ambient Temperature Range
(at rated current Ir): -10°C to +40°C
In an ambient temperature (Ta) higher than +40°C the maximum operating current (1₀) is calculated as follows: l₀ = Ir
Available Part Numbers
| 1VR1 | 1ER1 |
| 1VR3 | 1ER3 |
| 2VR1 | 2ER1 |
| 2VR3 | 2ER3 |
| 3VR1 | 3ER1 |
| 3VR3 | 3ER3 |
| 3VR7 | 3ER7 |
| 3VR7M | 3ER7M |
| 5VR1 | 5ER1 |
| 5VR3 | 5ER3 |
| 5VR7 | 5ER7 |
| 5VR7M | 5ER7M |
| 10VR1 | 10ER1 |
| 10VR3 | 10ER3 |
| 10VR6 | 10ER7 |
| 10VR7 | 10ER7M |
| 10VR7M | 20ER1 |
| 20VR1 | |
| 20VR6 |
Electrical Schematic
Case Styles
R1 (1, 2, 3, 5, 10A)
Typical Dimensions:
Line/Load Terminals (4): .250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal (1): .250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Holes (2): .188 [4.78] Dia.
R1 (20A)
Typical Dimensions:
Line/Load Terminals (4): .250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal (1): .250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Mounting Slots (4): .250 x .156 [6.35 x 3.96] Dia.

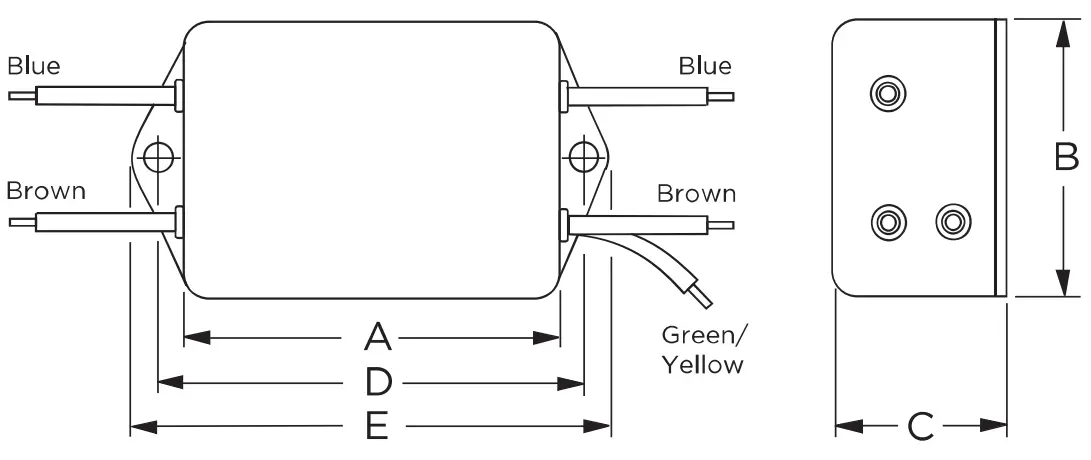

R3
Typical Dimensions:
Wire Leads (5): 4.0 [101.6] Min., AWG18
Mounting Holes (2): .188 [4.78] Dia.
10VR6
Typical Dimensions:
Terminals (5): 8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
Mounting Holes (2): .188 [4.78] Dia.
20VR6
Typical Dimensions:
Terminals (5): 8-32, Torque 18 Ibf-in. [2.03 N-m] max. ± 2 [.22]
Mounting Slots (4): .250 x .156 [6.35 x 3.96] Dia.
R7 & R7M
Typical Dimensions:
Load Terminals (2): .250 [6.3] with .07 [1.8] Dia. hole
Ground Terminal (1): .250 [6.3] with .07 x .16 [1.8 x 3.8] slot
Line Inlet (1): IEC 60320-1 C14
K7 Tapped Inserts (2): 6-32 x 1/4
K7M Tapped Inserts (2): M3 x .5

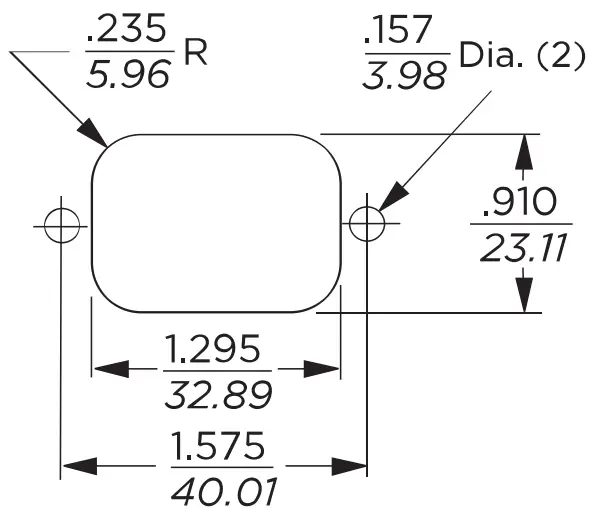

Recommended Panel Cutout
Tolerance ± .005[0.13]
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
Case Dimensions
Performance Data
Typical Insertion Loss
Measured in a closed 50 Ohm system
Minimum Insertion Loss
Measured in a closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
| Current Rating | Frequency – MHz | |||||
| .15 | .5 | 1 | 5 | 10 | 30 | |
| VR Models | ||||||
| 1A, 3A | 30 | 65 | 65 | 65 | 65 | 65 |
| 2A, 5A, 10A, 20A | 5 | 44 | 60 | 65 | 65 | 60 |
| ER Models | ||||||
| 1A, 3A | 25 | 60 | 65 | 65 | 65 | 65 |
| 2A, 5A, 10A, 20A | 2 | 35 | 51 | 63 | 60 | 50 |
Differential Mode / Symmetrical (Line to Line)
| Current Rating | Frequency – MHz | |||||
| .15 | .5 | 1 | 5 | 10 | 30 | |
| VR Models | ||||||
| 1A, 3A | – | – | 65 | 60 | 54 | 46 |
| 2A, 5A, 10A, 20A | – | – | 35 | 60 | 57 | 45 |
| ER Models | ||||||
| 1A, 3A | – | – | 65 | 60 | 54 | 46 |
| 2A, 5A, 10A, 20A | 2- | – | 35 | 60 | 57 | 45 |
