Schneider Electric Acti9 C120 Vigi Circuit Bracket

End of Life Instructions

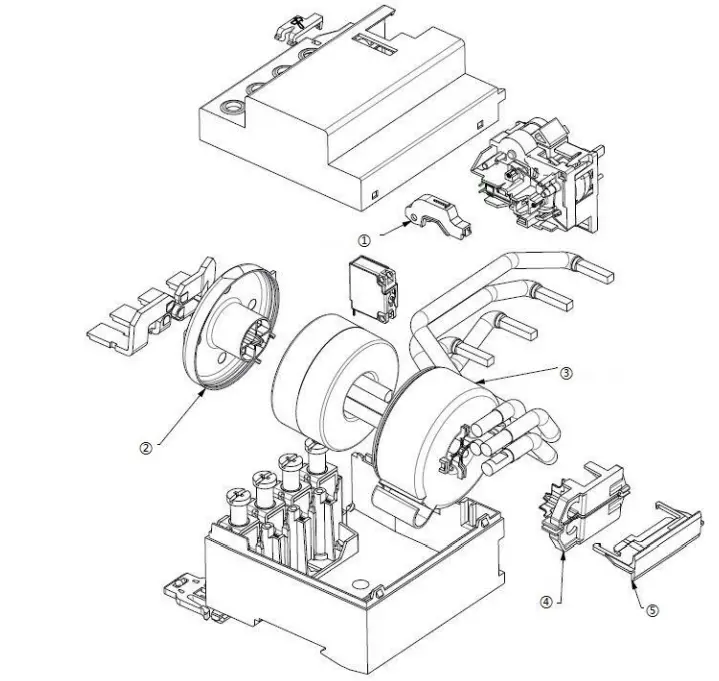

Recommendation	Number on drawing	Component / Material	Weight (in g)	Comment
To be depolluted	1	Plastic part with brominated FR	1.3	PBT GF30 FR(17)
To be depolluted	2	Plastic part with brominated FR	9.7	PA66 GF25 FR(17)
To be depolluted	3	Plastic part with brominated FR	16.8	PA66 GF25 FR(17)
To be depolluted	4	Plastic part with brominated FR	4.5	PA66 GF25 FR(17)
To be depolluted	5	Plastic part with brominated FR	2.6	PA66 GF25 FR(17)

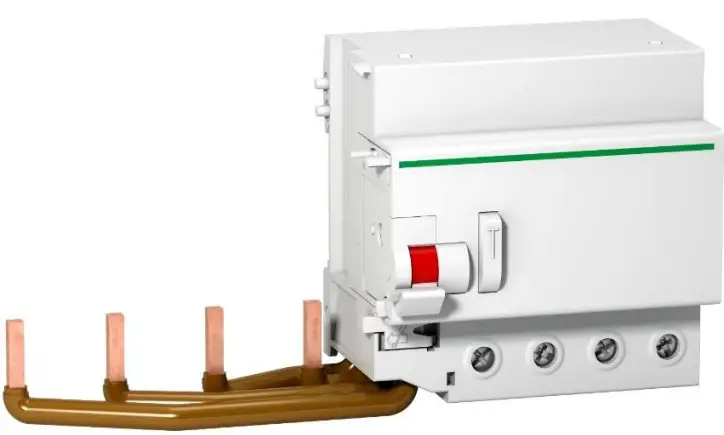

Product Description

Manufacturer identification	Schneider Electric Industries SAS
Brand name	Schneider Electric
Product function	The Vigi C120 module ensures the protection of electrical installations against insulation faults and the protection of persons against electrical shocks.
Product reference	A9N18554
Additional similar product references	A9N18554
Total representative product mass	764.7 g
Representative product dimensions	90 mm x 250 mm x 135 mm
Date of information release	08/2021

ENVEOLI091101EN_V3 – End of Life Instructions – Acti9 C120 Vigi

Additional information

Legal information

The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product.

Recyclability potential

68%

Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1,

20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME).
